Specifications
Brand Name :
Leenz
Model Number :
LZANT-12135-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
8000-12000MHz
VSWR :
<2.0
Peak Gain :
4dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 8000-12000MHz
S.W.R. <2.0
Antenna Gain 4dBi
Polarization Vertical
Horizontal Beamwidth 360°
Vertical Beamwidth 31-63°
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type N-K connector
Dimension φ86*40mm
Radome material ABS
Weight 0.09Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity

36.9m/s

2. Antenna - S Parameter Test Data

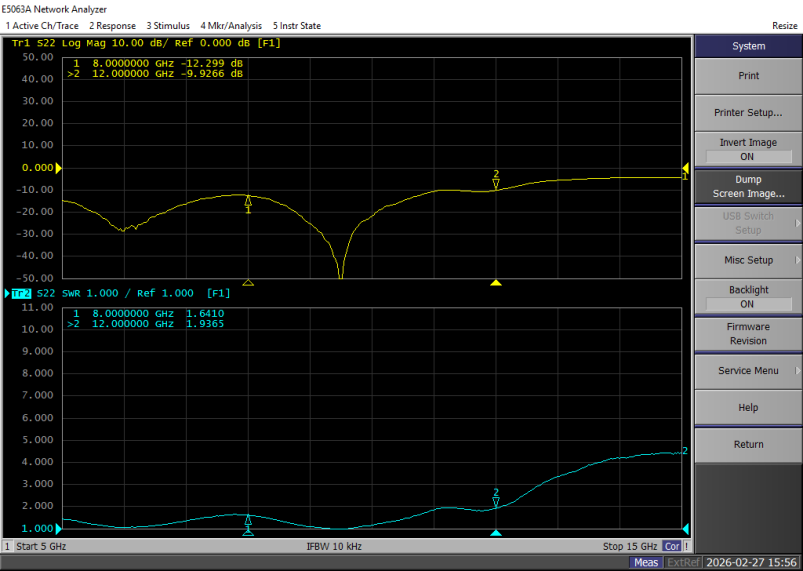

2.1 VSWR

8G-9G-10G-11G-12G8-12G 8000-12000M 4dBi omnidirectional small mushroom head ceiling-mounted antenna




2.2 Total Efficiency & Gain:


Frequency(MHz)

Gain(dBi)

Efficiency(%)

Frequency(MHz)

Gain(dBi)

Efficiency(%)

8000

3.2

65.9

10100

3.9

72.4

8100

3.0

62.4

10200

4.0

73.5

8200

4.0

72.7

10300

4.1

72.0

8300

4.0

76.1

10400

4.4

72.2

8400

3.9

77.7

10500

4.9

76.3

8500

4.5

80.9

10600

4.7

72.9

8600

4.2

82.7

10700

4.8

74.0

8700

4.3

77.3

10800

4.7

73.3

8800

4.1

78.6

10900

4.5

70.4

8900

4.4

84.0

11000

4.2

66.5

9000

4.0

76.9

11100

4.0

65.9

9100

3.9

77.0

11200

3.6

61.9

9200

3.9

75.0

11300

3.8

65.7

9300

3.9

75.4

11400

3.8

66.6

9400

4.6

83.0

11500

3.7

69.1

9500

3.9

70.2

11600

4.2

74.6

9600

3.9

73.1

11700

4.2

74.3

9700

3.8

72.7

11800

4.1

70.2

9800

3.5

70.9

11900

4.0

68.4

9900

4.1

74.7

12000

4.3

72.5

10000

3.5

69.3



2.3 Radiation Pattern

Port1 3D 2D-Horizontal 2D- Vertical

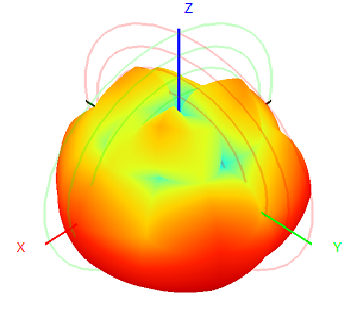

8000MHz 8G-9G-10G-11G-12G8-12G 8000-12000M 4dBi omnidirectional small mushroom head ceiling-mounted antenna 8G-9G-10G-11G-12G8-12G 8000-12000M 4dBi omnidirectional small mushroom head ceiling-mounted antenna 8G-9G-10G-11G-12G8-12G 8000-12000M 4dBi omnidirectional small mushroom head ceiling-mounted antenna

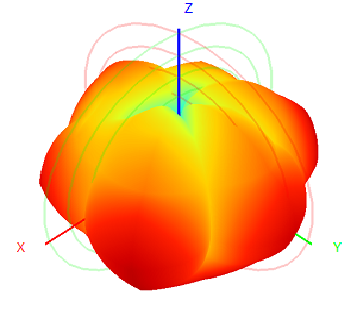

10000MHz 8G-9G-10G-11G-12G8-12G 8000-12000M 4dBi omnidirectional small mushroom head ceiling-mounted antenna 8G-9G-10G-11G-12G8-12G 8000-12000M 4dBi omnidirectional small mushroom head ceiling-mounted antenna 8G-9G-10G-11G-12G8-12G 8000-12000M 4dBi omnidirectional small mushroom head ceiling-mounted antenna

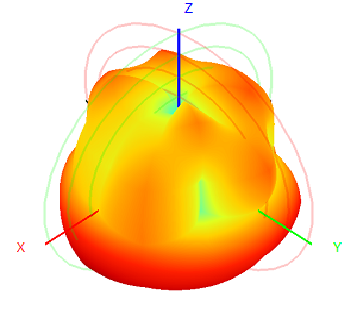

12000MHz 8G-9G-10G-11G-12G8-12G 8000-12000M 4dBi omnidirectional small mushroom head ceiling-mounted antenna 8G-9G-10G-11G-12G8-12G 8000-12000M 4dBi omnidirectional small mushroom head ceiling-mounted antenna 8G-9G-10G-11G-12G8-12G 8000-12000M 4dBi omnidirectional small mushroom head ceiling-mounted antenna
