SMA female 2.4/5.8G dual-band wifi6 omnidirectional small mushroom-shaped ceiling-mounted antenna
SMA female 2.4/5.8G dual-band wifi6 omnidirectional small mushroom-shaped ceiling-mounted antenna
SMA female 2.4/5.8G dual-band wifi6 omnidirectional small mushroom-shaped ceiling-mounted antenna
SMA female 2.4/5.8G dual-band wifi6 omnidirectional small mushroom-shaped ceiling-mounted antenna
SMA female 2.4/5.8G dual-band wifi6 omnidirectional small mushroom-shaped ceiling-mounted antenna
SMA female 2.4/5.8G dual-band wifi6 omnidirectional small mushroom-shaped ceiling-mounted antenna
SMA female 2.4/5.8G dual-band wifi6 omnidirectional small mushroom-shaped ceiling-mounted antenna
SMA female 2.4/5.8G dual-band wifi6 omnidirectional small mushroom-shaped ceiling-mounted antenna
SMA female 2.4/5.8G dual-band wifi6 omnidirectional small mushroom-shaped ceiling-mounted antenna
SMA female 2.4/5.8G dual-band wifi6 omnidirectional small mushroom-shaped ceiling-mounted antenna
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10193-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
2400-2500MHz; 5150-5850MHz
VSWR :
<2.0
Peak Gain :
5dBi
Impedance :
50
Description

2.4/5.8G dual-band wifi6 omnidirectional small mushroom-shaped ceiling-mounted antenna

1. Specification

A. Electrical Characteristics
Frequency 2400-2500MHz 5150-5850MHz
Impedance 50 Ohm 50 Ohm
S.W.R. <2.0 <2.0
Gain 3dBi 5dBi
Efficiency ≈78% ≈74%
Polarization Linear Linear
Max Power 50W 50W
B. Material & Mechanical Characteristics
Connector Type SMA-K connector
Dimension Φ86*40mm
Weight 0.1Kg
Radome material ABS white
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C


2. Antenna - S Parameter Test Data

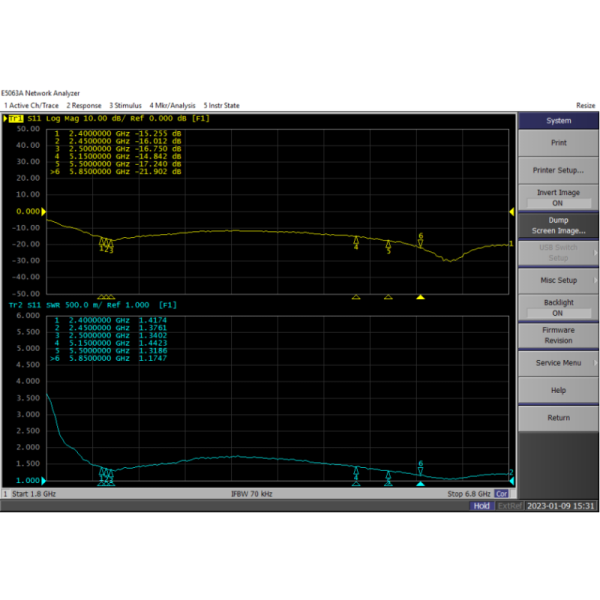

2.1 VSWR

SMA female 2.4/5.8G dual-band wifi6 omnidirectional small mushroom-shaped ceiling-mounted antenna

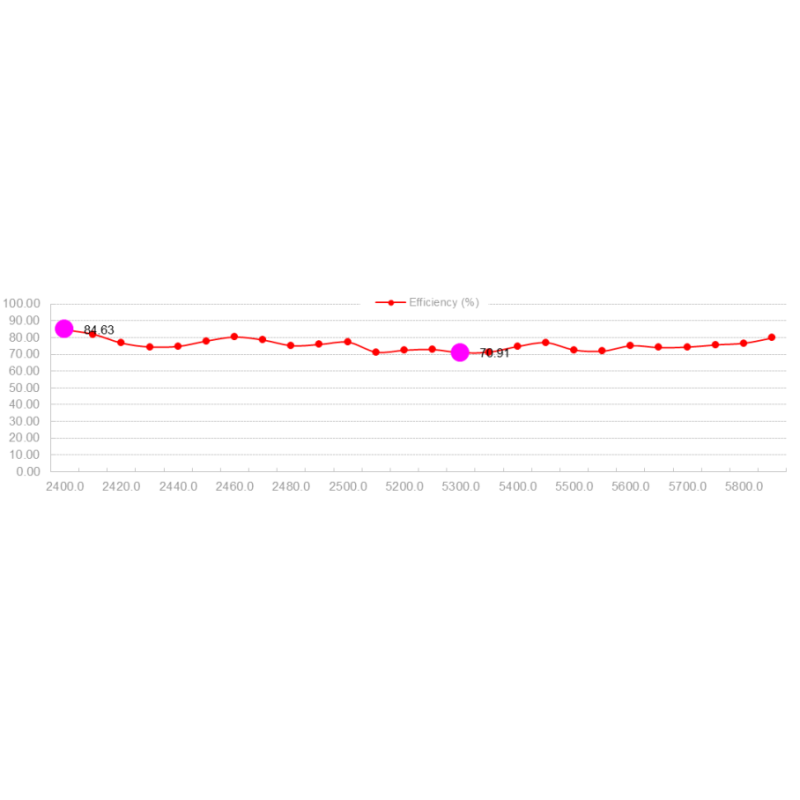

2.2 Total Efficiency & Gain


Frequency(MHz)

2400.0

2410.0

2420.0

2430.0

2440.0

2450.0

2460.0

2470.0

2480.0

2490.0

2500.0

Gain (dBi)

3.03

3.03

3.07

3.17

3.16

3.28

3.31

3.25

3.13

3.02

3.04

Efficiency (%)

84.63

81.95

76.69

74.40

74.78

77.95

80.33

78.54

75.19

75.90

77.23


Frequency(MHz)

5150

5200

5250

5300

5350

5400

5450

5500

5550

5600

5650

5700

5750

5800

5850

Gain (dBi)

3.79

3.98

3.96

3.85

3.93

4.01

4.09

3.98

4.11

4.45

4.35

4.30

4.35

4.34

4.41

Efficiency (%)

71.28

72.48

72.85

70.91

71.35

74.71

76.97

72.58

71.90

75.14

74.05

74.31

75.67

76.63

79.78

SMA female 2.4/5.8G dual-band wifi6 omnidirectional small mushroom-shaped ceiling-mounted antenna

2.2 Radiation Pattern



 3D 2D-Horizontal 2D-Vertical
2400MHz SMA female 2.4/5.8G dual-band wifi6 omnidirectional small mushroom-shaped ceiling-mounted antenna SMA female 2.4/5.8G dual-band wifi6 omnidirectional small mushroom-shaped ceiling-mounted antenna SMA female 2.4/5.8G dual-band wifi6 omnidirectional small mushroom-shaped ceiling-mounted antenna
2450MHz SMA female 2.4/5.8G dual-band wifi6 omnidirectional small mushroom-shaped ceiling-mounted antenna SMA female 2.4/5.8G dual-band wifi6 omnidirectional small mushroom-shaped ceiling-mounted antenna SMA female 2.4/5.8G dual-band wifi6 omnidirectional small mushroom-shaped ceiling-mounted antenna
2500MHz SMA female 2.4/5.8G dual-band wifi6 omnidirectional small mushroom-shaped ceiling-mounted antenna SMA female 2.4/5.8G dual-band wifi6 omnidirectional small mushroom-shaped ceiling-mounted antenna SMA female 2.4/5.8G dual-band wifi6 omnidirectional small mushroom-shaped ceiling-mounted antenna

3D 2D-Horizontal 2D-Vertical
5150MHz SMA female 2.4/5.8G dual-band wifi6 omnidirectional small mushroom-shaped ceiling-mounted antenna SMA female 2.4/5.8G dual-band wifi6 omnidirectional small mushroom-shaped ceiling-mounted antenna SMA female 2.4/5.8G dual-band wifi6 omnidirectional small mushroom-shaped ceiling-mounted antenna
5500MHz SMA female 2.4/5.8G dual-band wifi6 omnidirectional small mushroom-shaped ceiling-mounted antenna SMA female 2.4/5.8G dual-band wifi6 omnidirectional small mushroom-shaped ceiling-mounted antenna SMA female 2.4/5.8G dual-band wifi6 omnidirectional small mushroom-shaped ceiling-mounted antenna
5850MHz SMA female 2.4/5.8G dual-band wifi6 omnidirectional small mushroom-shaped ceiling-mounted antenna SMA female 2.4/5.8G dual-band wifi6 omnidirectional small mushroom-shaped ceiling-mounted antenna SMA female 2.4/5.8G dual-band wifi6 omnidirectional small mushroom-shaped ceiling-mounted antenna
