2*N-K 703-803M 700M 800M 8dbi dual-polarization directional antenna for base station antenna 310x280x80mm
2*N-K 703-803M 700M 800M 8dbi dual-polarization directional antenna for base station antenna 310x280x80mm
2*N-K 703-803M 700M 800M 8dbi dual-polarization directional antenna for base station antenna 310x280x80mm
2*N-K 703-803M 700M 800M 8dbi dual-polarization directional antenna for base station antenna 310x280x80mm
2*N-K 703-803M 700M 800M 8dbi dual-polarization directional antenna for base station antenna 310x280x80mm
2*N-K 703-803M 700M 800M 8dbi dual-polarization directional antenna for base station antenna 310x280x80mm
2*N-K 703-803M 700M 800M 8dbi dual-polarization directional antenna for base station antenna 310x280x80mm
2*N-K 703-803M 700M 800M 8dbi dual-polarization directional antenna for base station antenna 310x280x80mm
2*N-K 703-803M 700M 800M 8dbi dual-polarization directional antenna for base station antenna 310x280x80mm
2*N-K 703-803M 700M 800M 8dbi dual-polarization directional antenna for base station antenna 310x280x80mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-11843-A
Certification :
RoHs
Place of Origin :
China
MOQ :
2
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
703-803MHz
VSWR :
<2.0
Peak Gain :
8dBi
Impedance :
50
Description

2*N-K 703-803M 700M 800M 8dbi dual-polarization directional antenna for base station antenna

1. Specification

A. Electrical Characteristics
Frequency 703-803MHz
S.W.R. <= 2.0
Antenna Gain 8dBi
Polarization ±45°
Horizontal Beamwidth 70±10°
Vertical Beamwidth 70±10°
F/B >23dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type 2*N-K
Dimension 310*280*80mm
Radome material UPVC
Weight 2.2Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR

Port 1 +45°

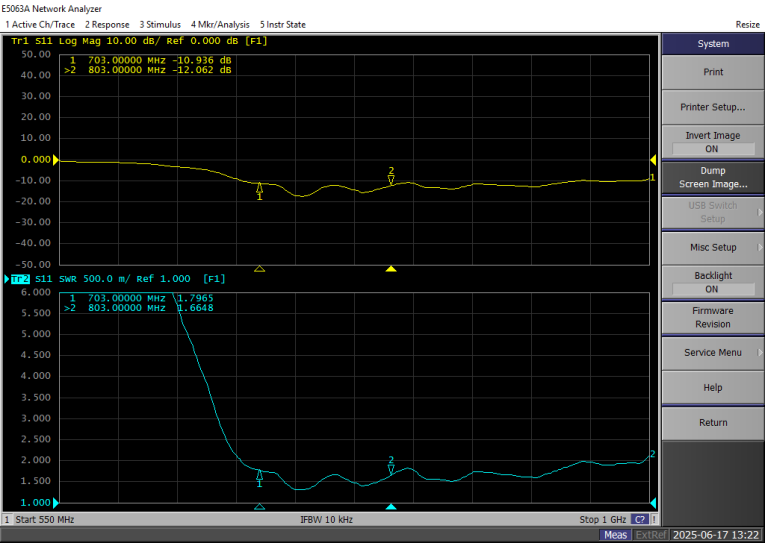

2*N-K 703-803M 700M 800M 8dbi dual-polarization directional antenna for base station antenna 310x280x80mm


























Port 2 -45°

2*N-K 703-803M 700M 800M 8dbi dual-polarization directional antenna for base station antenna 310x280x80mm



2.2 Total Efficiency & Gain:


Port 1 +45°

Port 2 -45°

Frequency(MHz)

Gain(dBi)

Frequency(MHz)

Gain(dBi)

703

7.0

703

7.0

710

7.2

710

7.5

720

7.4

720

7.7

730

7.6

730

8.0

740

8.0

740

8.3

750

8.3

750

8.6

760

8.4

760

8.6

770

8.4

770

8.7

780

8.4

780

8.7

790

8.4

790

8.5

800

8.2

800

8.2

803

8.1

803

8.1


2.3 Radiation Pattern

Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical

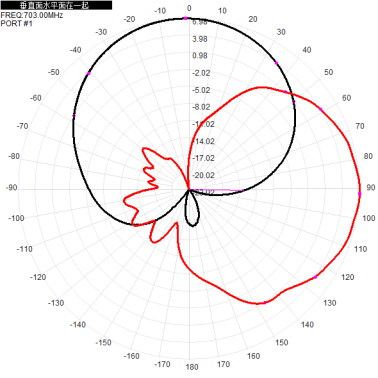

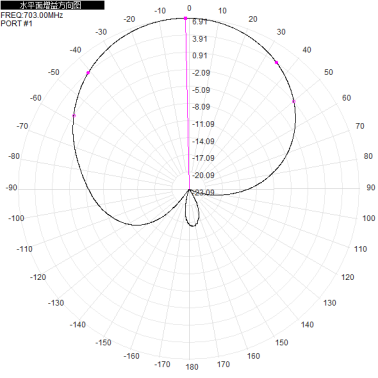

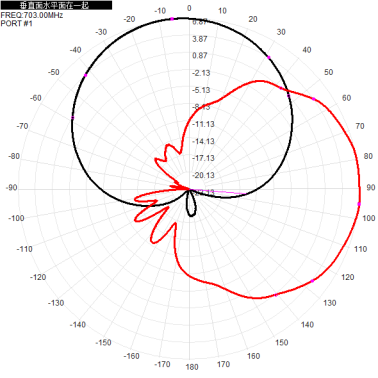

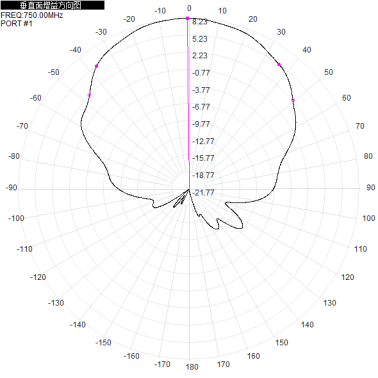

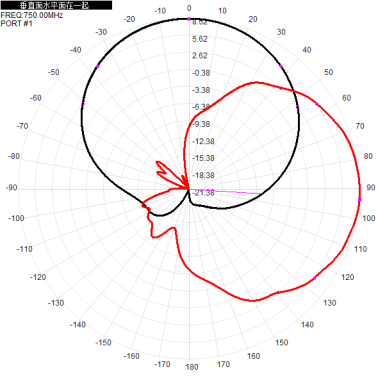

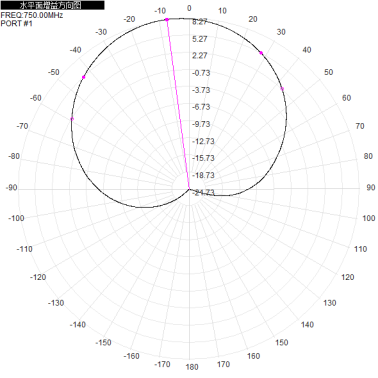

703MHz 2*N-K 703-803M 700M 800M 8dbi dual-polarization directional antenna for base station antenna 310x280x80mm 2*N-K 703-803M 700M 800M 8dbi dual-polarization directional antenna for base station antenna 310x280x80mm 2*N-K 703-803M 700M 800M 8dbi dual-polarization directional antenna for base station antenna 310x280x80mm

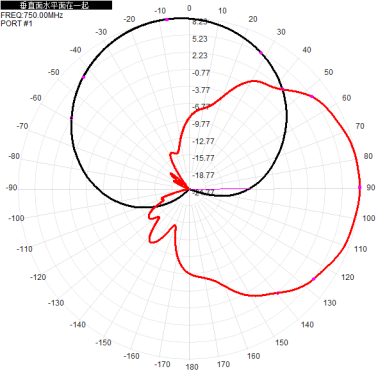

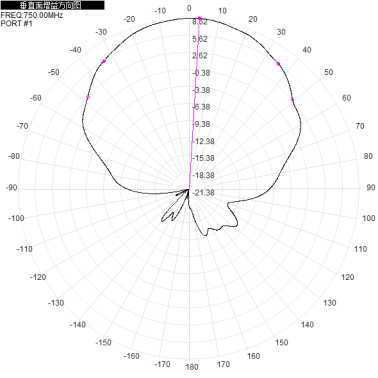

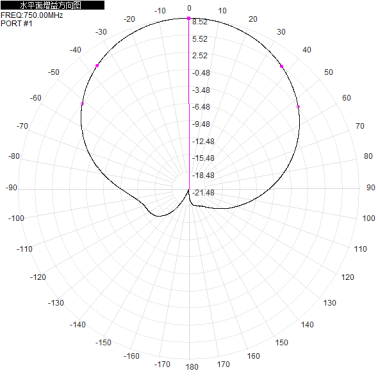

750MHz 2*N-K 703-803M 700M 800M 8dbi dual-polarization directional antenna for base station antenna 310x280x80mm 2*N-K 703-803M 700M 800M 8dbi dual-polarization directional antenna for base station antenna 310x280x80mm 2*N-K 703-803M 700M 800M 8dbi dual-polarization directional antenna for base station antenna 310x280x80mm

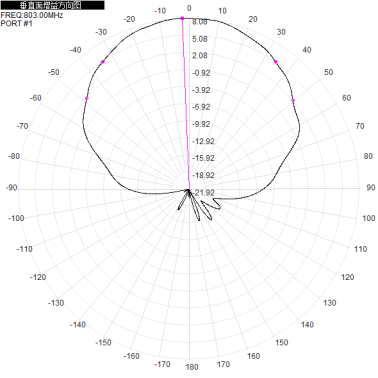

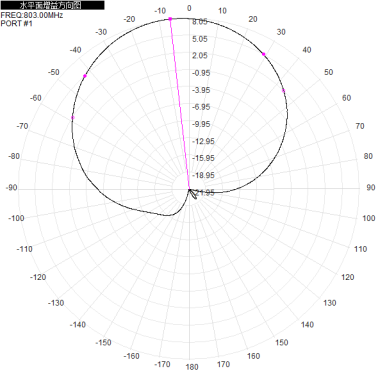

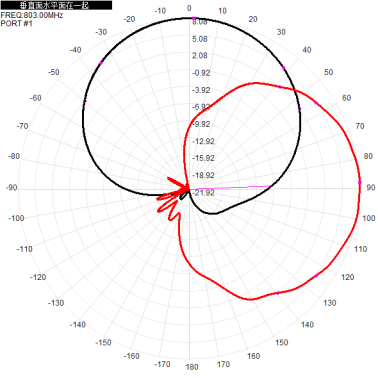

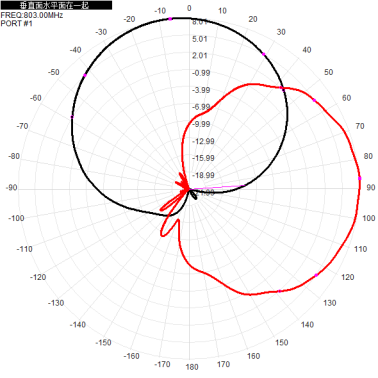

803MHz 2*N-K 703-803M 700M 800M 8dbi dual-polarization directional antenna for base station antenna 310x280x80mm 2*N-K 703-803M 700M 800M 8dbi dual-polarization directional antenna for base station antenna 310x280x80mm 2*N-K 703-803M 700M 800M 8dbi dual-polarization directional antenna for base station antenna 310x280x80mm


Port2 2D-Horizontal 2D-Vertical Horizontal & Vertical
703MHz 2*N-K 703-803M 700M 800M 8dbi dual-polarization directional antenna for base station antenna 310x280x80mm 2*N-K 703-803M 700M 800M 8dbi dual-polarization directional antenna for base station antenna 310x280x80mm 2*N-K 703-803M 700M 800M 8dbi dual-polarization directional antenna for base station antenna 310x280x80mm
750MHz 2*N-K 703-803M 700M 800M 8dbi dual-polarization directional antenna for base station antenna 310x280x80mm 2*N-K 703-803M 700M 800M 8dbi dual-polarization directional antenna for base station antenna 310x280x80mm 2*N-K 703-803M 700M 800M 8dbi dual-polarization directional antenna for base station antenna 310x280x80mm
803MHz 2*N-K 703-803M 700M 800M 8dbi dual-polarization directional antenna for base station antenna 310x280x80mm 2*N-K 703-803M 700M 800M 8dbi dual-polarization directional antenna for base station antenna 310x280x80mm 2*N-K 703-803M 700M 800M 8dbi dual-polarization directional antenna for base station antenna 310x280x80mm
