Specifications
Brand Name :
Leenz
Model Number :
LZANT-10585-A
Certification :
RoHs
Place of Origin :
China
MOQ :
2
Payment Terms :
T/T
Supply Ability :
200 per day
Delivery Time :
15 days
Frequency :
703-803MHz
VSWR :
<2.0
Peak Gain :
12dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 703-803MHz
S.W.R. <= 2.0
Antenna Gain 12dBi
Polarization V
Horizontal Beamwidth 100±10°
Vertical Beamwidth 20±5°
F/B >23dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type N-K
Dimension 1200*280*125mm
Radome material UPVC
Weight 10Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data

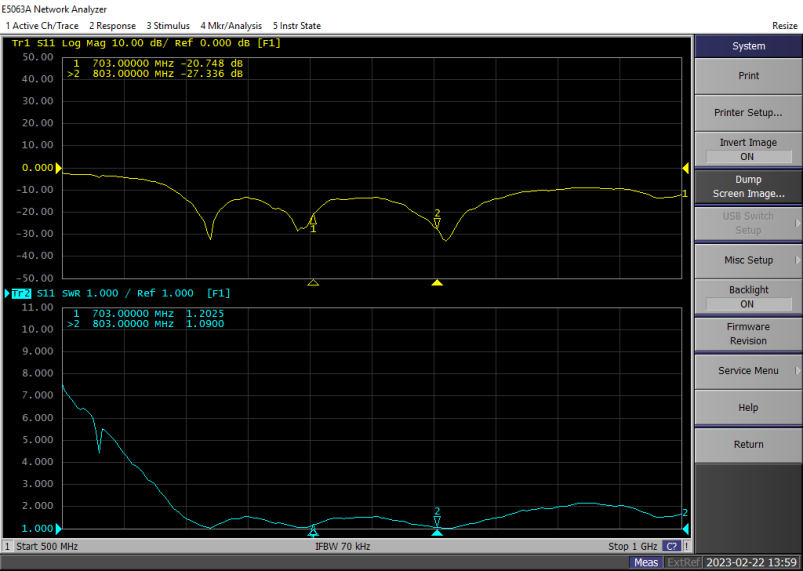

2.1 VSWR

703-803M 700M 800M 12dbi Single-polarization Directional Antenna 1200x280x125mm






























2.2 Total Efficiency & Gain:


Frequency(MHz)

Gain(dBi)

703

12.8

713

12.5

723

12.2

733

12.0

743

12.0

753

12.1

763

12.4

773

12.5

783

12.5

793

12.6

803

12.7

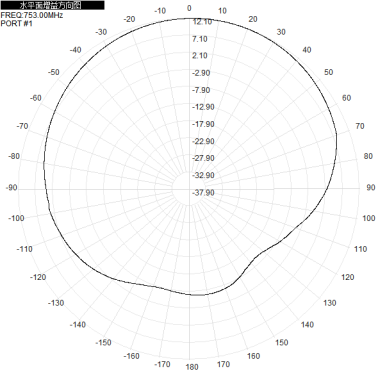

2.3 Radiation Pattern

Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical

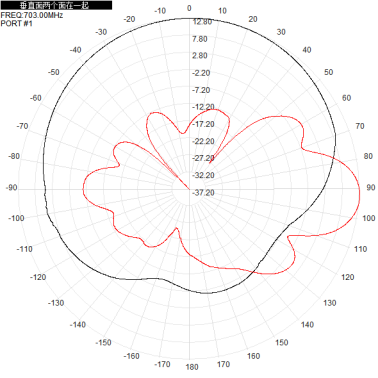

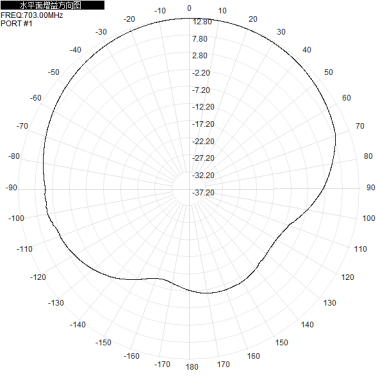

703MHz 703-803M 700M 800M 12dbi Single-polarization Directional Antenna 1200x280x125mm 703-803M 700M 800M 12dbi Single-polarization Directional Antenna 1200x280x125mm 703-803M 700M 800M 12dbi Single-polarization Directional Antenna 1200x280x125mm

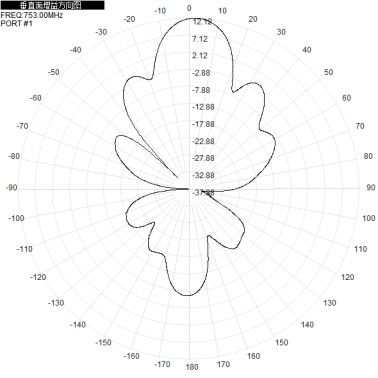

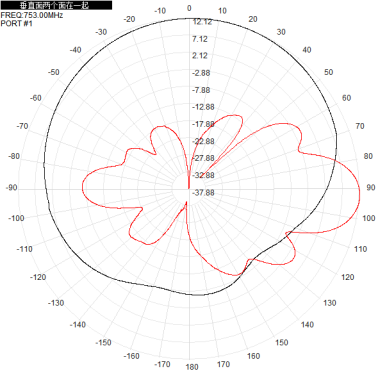

753MHz 703-803M 700M 800M 12dbi Single-polarization Directional Antenna 1200x280x125mm 703-803M 700M 800M 12dbi Single-polarization Directional Antenna 1200x280x125mm 703-803M 700M 800M 12dbi Single-polarization Directional Antenna 1200x280x125mm

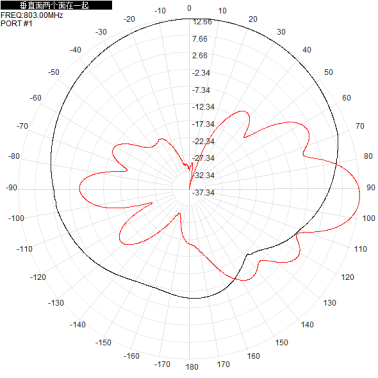

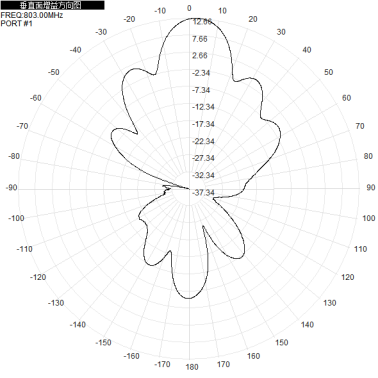

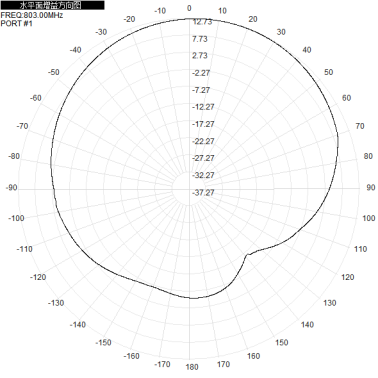

803MHz 703-803M 700M 800M 12dbi Single-polarization Directional Antenna 1200x280x125mm 703-803M 700M 800M 12dbi Single-polarization Directional Antenna 1200x280x125mm 703-803M 700M 800M 12dbi Single-polarization Directional Antenna 1200x280x125mm
