2*N-K 703-803M 700M 800M 10dbi dual-polarization directional antenna for base station antenna 680x280x125mm
2*N-K 703-803M 700M 800M 10dbi dual-polarization directional antenna for base station antenna 680x280x125mm
2*N-K 703-803M 700M 800M 10dbi dual-polarization directional antenna for base station antenna 680x280x125mm
2*N-K 703-803M 700M 800M 10dbi dual-polarization directional antenna for base station antenna 680x280x125mm
2*N-K 703-803M 700M 800M 10dbi dual-polarization directional antenna for base station antenna 680x280x125mm
2*N-K 703-803M 700M 800M 10dbi dual-polarization directional antenna for base station antenna 680x280x125mm
2*N-K 703-803M 700M 800M 10dbi dual-polarization directional antenna for base station antenna 680x280x125mm
2*N-K 703-803M 700M 800M 10dbi dual-polarization directional antenna for base station antenna 680x280x125mm
2*N-K 703-803M 700M 800M 10dbi dual-polarization directional antenna for base station antenna 680x280x125mm
2*N-K 703-803M 700M 800M 10dbi dual-polarization directional antenna for base station antenna 680x280x125mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-11093-B
Certification :
RoHs
Place of Origin :
China
MOQ :
2
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
703-803MHz
VSWR :
<2.0
Peak Gain :
10dBi
Impedance :
50
Description

2*N-K 703-803M 700M 800M 10dbi dual-polarization directional antenna for base station antenna

1. Specification

A. Electrical Characteristics
Frequency 703-803MHz
S.W.R. <= 2.0
Antenna Gain 9dBi
Polarization ±45°
Horizontal Beamwidth 70±10°
Vertical Beamwidth 35±5°
F/B >24dB
Impedance 50Ohm
Max. Power 100W
B. Material & Mechanical Characteristics
Connector Type 2*N-K
Dimension 680*280*125mm
Radome material UPVC
Weight 6.3Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data

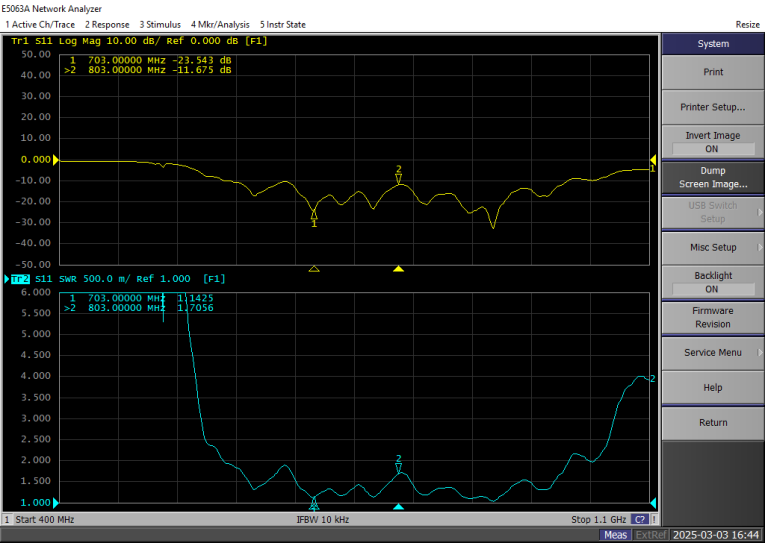

2.1 VSWR

Port 1 +45°

2*N-K 703-803M 700M 800M 10dbi dual-polarization directional antenna for base station antenna 680x280x125mm




















Port 2 -45°

2*N-K 703-803M 700M 800M 10dbi dual-polarization directional antenna for base station antenna 680x280x125mm



2.2 Total Efficiency & Gain:


Port 1 +45°

Port 2 -45°

Frequency(MHz)

Gain(dBi)

Frequency(MHz)

Gain(dBi)

703

9.4

703

9.1

710

9.6

710

9.4

720

9.8

720

9.6

730

9.8

730

9.7

740

10.1

740

10.1

750

10.2

750

10.2

760

10.1

760

10.2

770

10.1

770

10.3

780

10.1

780

10.4

790

9.9

790

10.2

800

9.7

800

9.9

803

9.6

803

9.7


2.3 Radiation Pattern

Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical

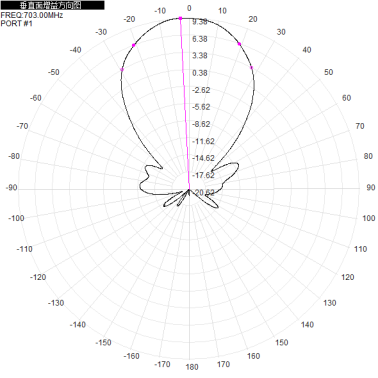

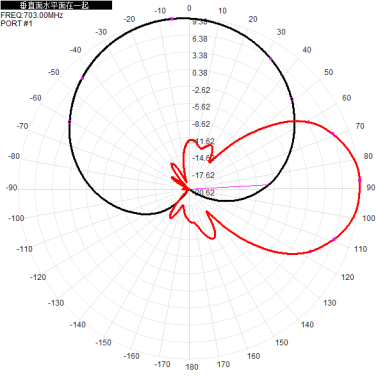

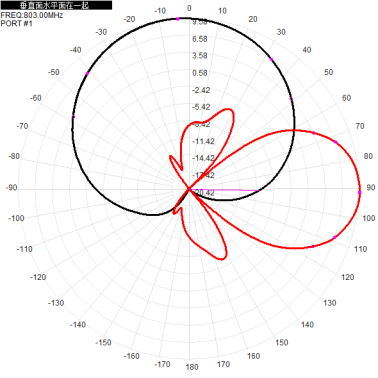

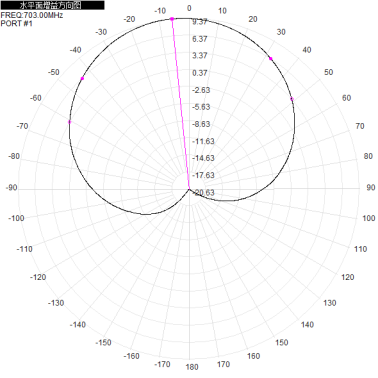

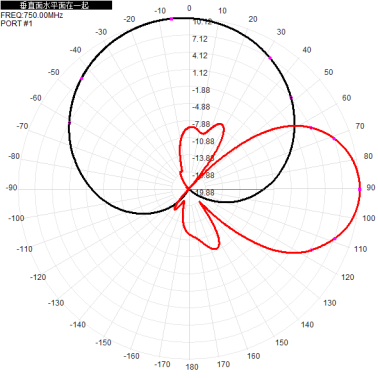

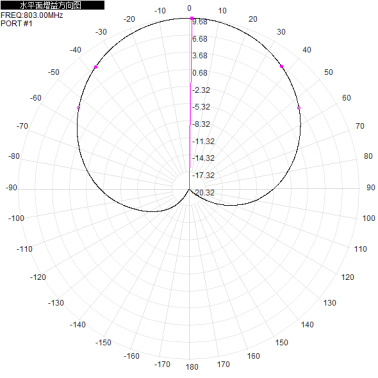

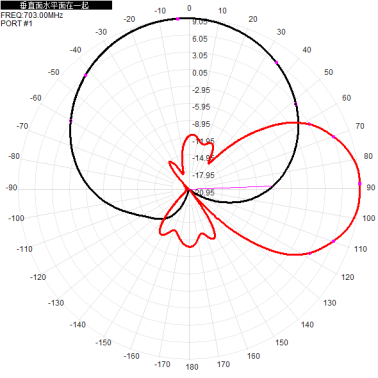

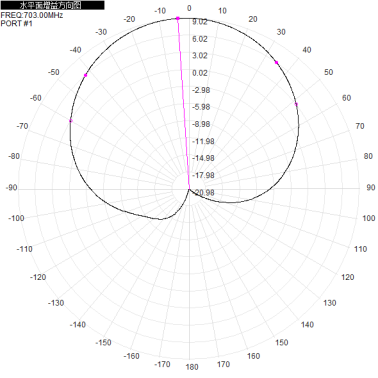

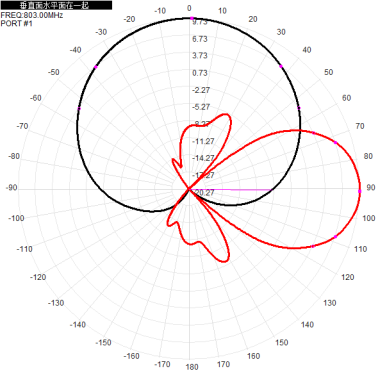

703MHz 2*N-K 703-803M 700M 800M 10dbi dual-polarization directional antenna for base station antenna 680x280x125mm 2*N-K 703-803M 700M 800M 10dbi dual-polarization directional antenna for base station antenna 680x280x125mm 2*N-K 703-803M 700M 800M 10dbi dual-polarization directional antenna for base station antenna 680x280x125mm

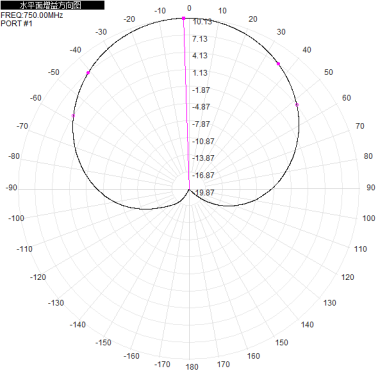

750MHz 2*N-K 703-803M 700M 800M 10dbi dual-polarization directional antenna for base station antenna 680x280x125mm 2*N-K 703-803M 700M 800M 10dbi dual-polarization directional antenna for base station antenna 680x280x125mm 2*N-K 703-803M 700M 800M 10dbi dual-polarization directional antenna for base station antenna 680x280x125mm
803MHz 2*N-K 703-803M 700M 800M 10dbi dual-polarization directional antenna for base station antenna 680x280x125mm 2*N-K 703-803M 700M 800M 10dbi dual-polarization directional antenna for base station antenna 680x280x125mm 2*N-K 703-803M 700M 800M 10dbi dual-polarization directional antenna for base station antenna 680x280x125mm


Port2 2D-Horizontal 2D-Vertical Horizontal & Vertical
703MHz 2*N-K 703-803M 700M 800M 10dbi dual-polarization directional antenna for base station antenna 680x280x125mm 2*N-K 703-803M 700M 800M 10dbi dual-polarization directional antenna for base station antenna 680x280x125mm 2*N-K 703-803M 700M 800M 10dbi dual-polarization directional antenna for base station antenna 680x280x125mm
750MHz 2*N-K 703-803M 700M 800M 10dbi dual-polarization directional antenna for base station antenna 680x280x125mm 2*N-K 703-803M 700M 800M 10dbi dual-polarization directional antenna for base station antenna 680x280x125mm 2*N-K 703-803M 700M 800M 10dbi dual-polarization directional antenna for base station antenna 680x280x125mm
803MHz 2*N-K 703-803M 700M 800M 10dbi dual-polarization directional antenna for base station antenna 680x280x125mm 2*N-K 703-803M 700M 800M 10dbi dual-polarization directional antenna for base station antenna 680x280x125mm 2*N-K 703-803M 700M 800M 10dbi dual-polarization directional antenna for base station antenna 680x280x125mm
