6G-12G 6000-12000M 4dBi omnidirectional small mushroom head ceiling-mounted antenna
6G-12G 6000-12000M 4dBi omnidirectional small mushroom head ceiling-mounted antenna
6G-12G 6000-12000M 4dBi omnidirectional small mushroom head ceiling-mounted antenna
6G-12G 6000-12000M 4dBi omnidirectional small mushroom head ceiling-mounted antenna
6G-12G 6000-12000M 4dBi omnidirectional small mushroom head ceiling-mounted antenna
6G-12G 6000-12000M 4dBi omnidirectional small mushroom head ceiling-mounted antenna
6G-12G 6000-12000M 4dBi omnidirectional small mushroom head ceiling-mounted antenna
6G-12G 6000-12000M 4dBi omnidirectional small mushroom head ceiling-mounted antenna
6G-12G 6000-12000M 4dBi omnidirectional small mushroom head ceiling-mounted antenna
6G-12G 6000-12000M 4dBi omnidirectional small mushroom head ceiling-mounted antenna
Specifications
Brand Name :
Leenz
Model Number :
LZANT-11914-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
1000 per day
Delivery Time :
15 days
Frequency :
6000-12000MHz
VSWR :
<2.0
Peak Gain :
3dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 6000-12000MHz
S.W.R. <2.0
Antenna Gain 4dBi
Polarization Vertical
Horizontal Beamwidth 360°
Vertical Beamwidth 30-120°
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type N-K connector
Dimension φ86*40mm
Radome material ABS
Weight 0.09Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity

36.9m/s

2. Antenna - S Parameter Test Data

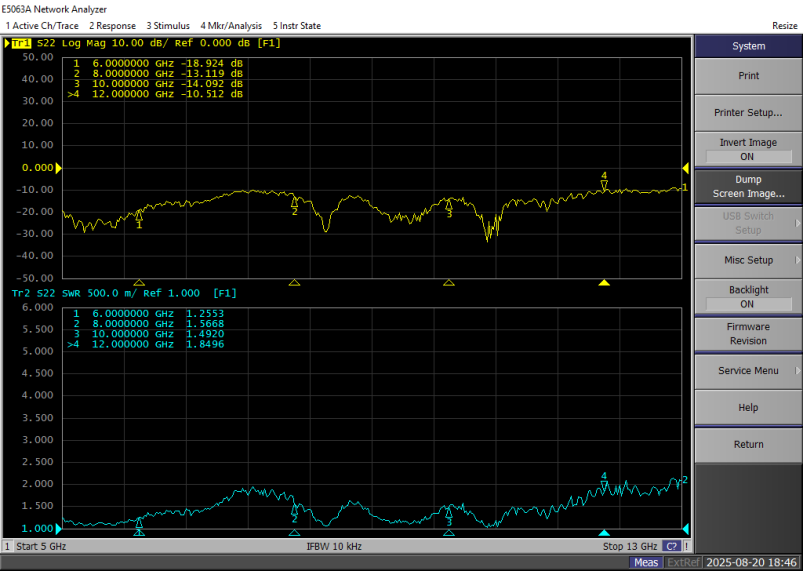

2.1 VSWR

6G-12G 6000-12000M 4dBi omnidirectional small mushroom head ceiling-mounted antenna




2.2 Total Efficiency & Gain:


Frequency(MHz)

Gain(dBi)

Efficiency(%)

Frequency(MHz)

Gain(dBi)

Efficiency(%)

6000

3.8

86.2

9100

2.3

67.0

6100

4.1

82.9

9200

1.6

65.9

6200

4.1

85.2

9300

1.1

63.6

6300

3.9

86.7

9400

2.1

75.7

6400

3.6

86.6

9500

1.5

65.4

6500

3.5

80.2

9600

1.4

66.9

6600

3.8

84.2

9700

0.9

64.9

6700

3.5

83.1

9800

1.3

66.3

6800

3.1

80.1

9900

1.9

68.7

6900

2.9

74.5

10000

1.8

66.0

7000

3.4

78.4

10100

2.2

66.8

7100

3.2

72.9

10200

2.4

66.7

7200

3.1

67.8

10300

2.2

69.5

7300

3.0

65.8

10400

2.2

66.6

7400

3.0

66.6

10500

2.6

65.7

7500

2.3

61.9

10600

2.0

60.2

7600

1.7

52.8

10700

2.0

62.7

7700

1.8

54.9

10800

2.3

61.2

7800

1.7

54.2

10900

2.7

60.5

7900

2.0

55.3

11000

3.4

64.1

8000

2.7

64.3

11100

4.0

67.3

8100

2.5

63.1

11200

4.3

70.9

8200

2.9

68.0

11300

4.2

70.5

8300

2.7

65.4

11400

4.0

70.2

8400

2.7

68.1

11500

4.0

68.7

8500

2.5

64.3

11600

4.0

70.9

8600

2.0

60.9

11700

3.3

68.9

8700

1.8

60.2

11800

2.7

63.1

8800

2.2

63.4

11900

2.1

60.2

8900

3.0

77.0

12000

2.3

62.5

9000

2.6

72.0

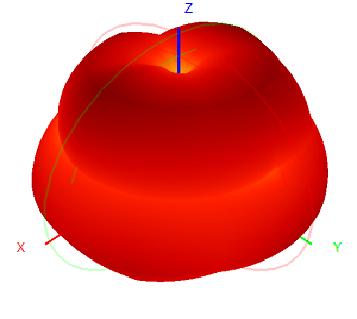

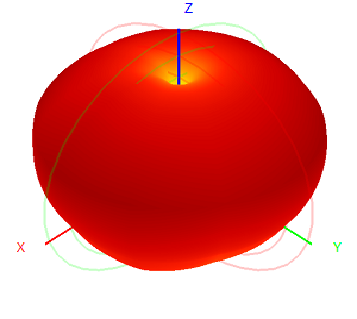

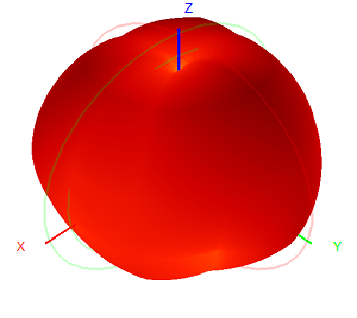

2.3 Radiation Pattern

Port1 3D 2D-Horizontal 2D- Vertical
6000MHz 6G-12G 6000-12000M 4dBi omnidirectional small mushroom head ceiling-mounted antenna 6G-12G 6000-12000M 4dBi omnidirectional small mushroom head ceiling-mounted antenna 6G-12G 6000-12000M 4dBi omnidirectional small mushroom head ceiling-mounted antenna
9000MHz 6G-12G 6000-12000M 4dBi omnidirectional small mushroom head ceiling-mounted antenna 6G-12G 6000-12000M 4dBi omnidirectional small mushroom head ceiling-mounted antenna 6G-12G 6000-12000M 4dBi omnidirectional small mushroom head ceiling-mounted antenna
12000MHz 6G-12G 6000-12000M 4dBi omnidirectional small mushroom head ceiling-mounted antenna 6G-12G 6000-12000M 4dBi omnidirectional small mushroom head ceiling-mounted antenna 6G-12G 6000-12000M 4dBi omnidirectional small mushroom head ceiling-mounted antenna
