SMA male 4G LTE GSM GPRS omnidirectional 3dbi waterproof rubber antenna 12x135mm
SMA male 4G LTE GSM GPRS omnidirectional 3dbi waterproof rubber antenna 12x135mm
SMA male 4G LTE GSM GPRS omnidirectional 3dbi waterproof rubber antenna 12x135mm
SMA male 4G LTE GSM GPRS omnidirectional 3dbi waterproof rubber antenna 12x135mm
SMA male 4G LTE GSM GPRS omnidirectional 3dbi waterproof rubber antenna 12x135mm
SMA male 4G LTE GSM GPRS omnidirectional 3dbi waterproof rubber antenna 12x135mm
SMA male 4G LTE GSM GPRS omnidirectional 3dbi waterproof rubber antenna 12x135mm
SMA male 4G LTE GSM GPRS omnidirectional 3dbi waterproof rubber antenna 12x135mm
SMA male 4G LTE GSM GPRS omnidirectional 3dbi waterproof rubber antenna 12x135mm
SMA male 4G LTE GSM GPRS omnidirectional 3dbi waterproof rubber antenna 12x135mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10063-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
1K per day
Delivery Time :
15 days
Frequency :
806-960MHz; 1710-2700MHz
VSWR :
<3.2
Peak Gain :
3dBi
Impedance :
50
Description

SMA male 4G LTE GSM GPRS omnidirectional 3dbi waterproof rubber antenna 12x135mm
1. Specification

A. Electrical Characteristics
Frequency 806-960MHz 1710-2700MHz
S.W.R. <= 3.2 <=3.2
Antenna Gain 2dBi 3dBi
Efficiency ≈41% ≈54%
Polarization Linear Linear
Impedance 50 Ohm 50 Ohm
B. Material & Mechanical Characteristics
Connector Type SMA-J
Dimension ¢12*135mm
Color TPEE+PC Black
Weight 0.01Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

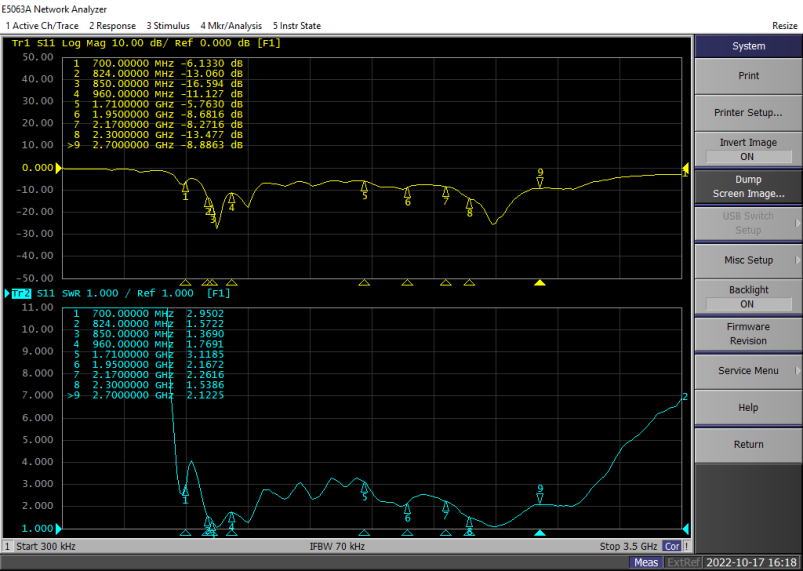

2.1 VSWR
SMA male 4G LTE GSM GPRS omnidirectional 3dbi waterproof rubber antenna 12x135mm

2.2 Total Efficiency & Gain

Frequency (MHz)

800.0

820.0

840.0

860.0

880.0

900.0

920.0

940.0

960.0

Gain (dBi)

1.02

1.01

0.88

1.21

1.55

1.45

1.85

2.12

2.18

Efficiency (%)

40.90

42.02

41.66

46.41

50.83

46.56

51.06

52.67

47.29

Frequency (MHz)

1710.0

1800.0

1890.0

1980.0

2070.0

2160.0

2250.0

2340.0

2430.0

2520.0

2610.0

2700.0

Gain (dBi)

3.75

4.44

4.43

2.62

2.28

3.49

4.50

3.96

4.22

3.97

3.80

3.90

Efficiency (%)

49.46

46.26

53.57

48.69

44.71

55.17

62.63

61.11

61.76

56.38

50.24

52.42
SMA male 4G LTE GSM GPRS omnidirectional 3dbi waterproof rubber antenna 12x135mm

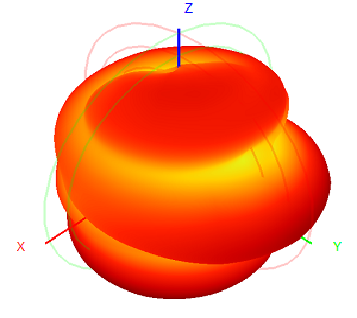

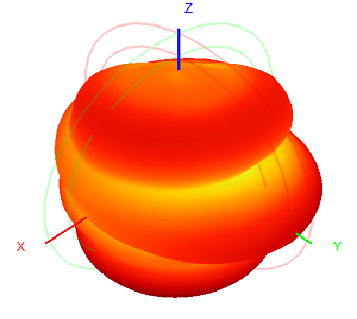

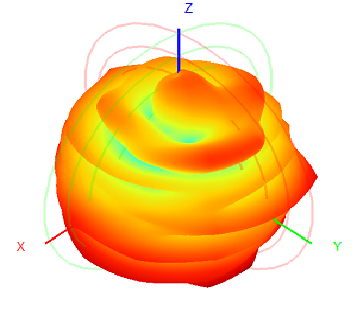

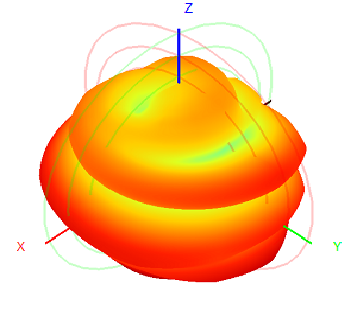

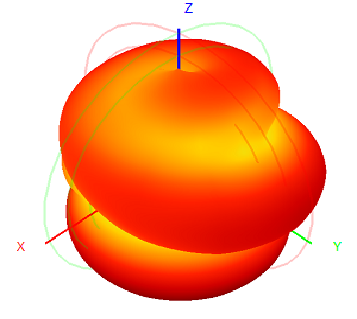

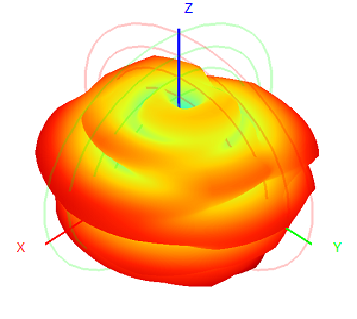

2.2 Radiation Pattern


 3D 2D-Horizontal 2D-Vertical
800MHz SMA male 4G LTE GSM GPRS omnidirectional 3dbi waterproof rubber antenna 12x135mm SMA male 4G LTE GSM GPRS omnidirectional 3dbi waterproof rubber antenna 12x135mm SMA male 4G LTE GSM GPRS omnidirectional 3dbi waterproof rubber antenna 12x135mm
900MHz SMA male 4G LTE GSM GPRS omnidirectional 3dbi waterproof rubber antenna 12x135mm SMA male 4G LTE GSM GPRS omnidirectional 3dbi waterproof rubber antenna 12x135mm SMA male 4G LTE GSM GPRS omnidirectional 3dbi waterproof rubber antenna 12x135mm
960MHz SMA male 4G LTE GSM GPRS omnidirectional 3dbi waterproof rubber antenna 12x135mm SMA male 4G LTE GSM GPRS omnidirectional 3dbi waterproof rubber antenna 12x135mm SMA male 4G LTE GSM GPRS omnidirectional 3dbi waterproof rubber antenna 12x135mm

3D 2D-Horizontal 2D-Vertical
1700MHz SMA male 4G LTE GSM GPRS omnidirectional 3dbi waterproof rubber antenna 12x135mm SMA male 4G LTE GSM GPRS omnidirectional 3dbi waterproof rubber antenna 12x135mm SMA male 4G LTE GSM GPRS omnidirectional 3dbi waterproof rubber antenna 12x135mm
2250MHz SMA male 4G LTE GSM GPRS omnidirectional 3dbi waterproof rubber antenna 12x135mm SMA male 4G LTE GSM GPRS omnidirectional 3dbi waterproof rubber antenna 12x135mm SMA male 4G LTE GSM GPRS omnidirectional 3dbi waterproof rubber antenna 12x135mm
2700MHz SMA male 4G LTE GSM GPRS omnidirectional 3dbi waterproof rubber antenna 12x135mm SMA male 4G LTE GSM GPRS omnidirectional 3dbi waterproof rubber antenna 12x135mm SMA male 4G LTE GSM GPRS omnidirectional 3dbi waterproof rubber antenna 12x135mm
