Specifications
Brand Name :
Leenz
Model Number :
LZANT-10229-TNCJ
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
1K per day
Delivery Time :
15 days
Frequency :
2400-2500M
VSWR :
<2
Peak Gain :
5dBi
Impedance :
50
Description

SMA male 2.4G 2400-2500M Bluetooth antenna Wi-Fi router antenna omnidirectional unmanned aerial vehicle remote control folding rubber tube antenna 13x196mm

1. Specification

A. Electrical Characteristics
Frequency 2400-2500MHz
Impedance 50 Ohm
S.W.R. <2
Gain 5dBi
Efficiency ≈72%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 35±5°
B. Material & Mechanical Characteristics
Connector Type TNC-J
Dimension Φ13*215mm
Weight 0.02Kg
Radome material PBT+PC BLACK
C. Environmental
Operation Temperature - 40 ˚C ~ + 85˚C
Storage Temperature - 40 ˚C ~ + 85˚C


2. Antenna - S Parameter Test Data

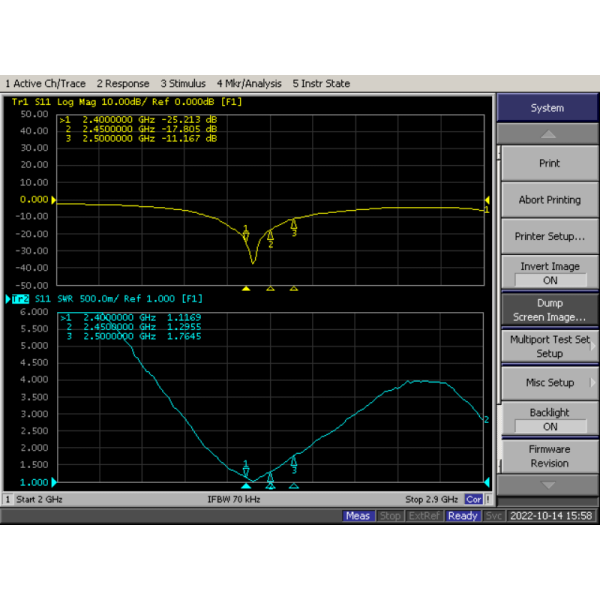

2.1 VSWR
TNC male 2.4G 2400-2500M Bluetooth antenna Wi-Fi router antenna omnidirectional unmanned aerial vehicle remote control folding rubber tube antenna 13x215mm

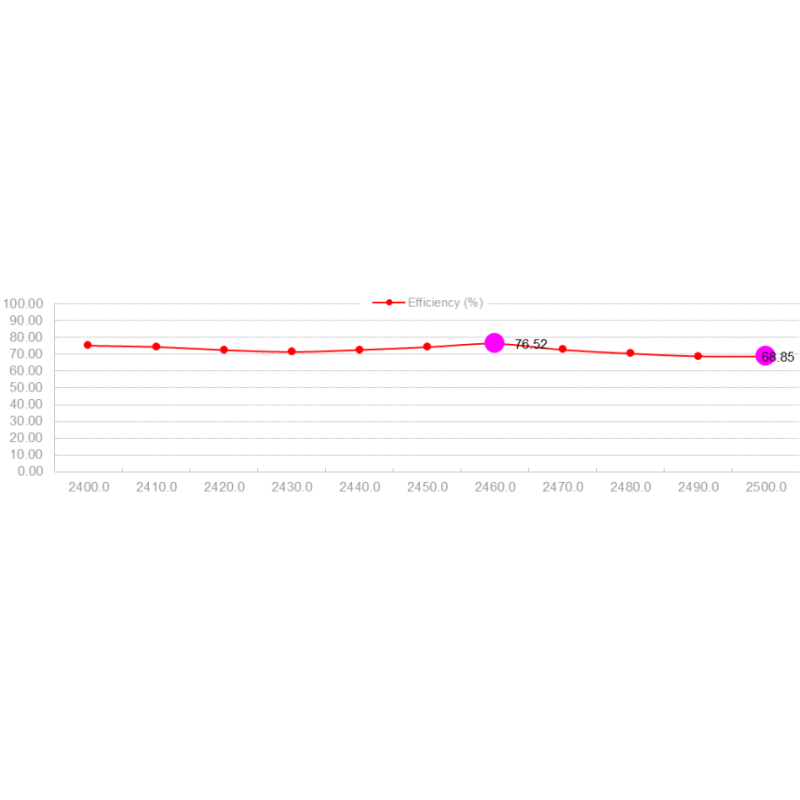

2.2 Total Efficiency & Gain:

Frequency (MHz)

2400.0

2410.0

2420.0

2430.0

2440.0

2450.0

2460.0

2470.0

2480.0

2490.0

2500.0

Gain (dBi)

4.49

4.49

4.48

4.46

4.56

4.57

4.62

4.45

4.38

4.27

4.12

Efficiency (%)

75.33

74.59

72.72

71.58

72.76

74.43

76.52

72.83

70.60

68.96

68.85

TNC male 2.4G 2400-2500M Bluetooth antenna Wi-Fi router antenna omnidirectional unmanned aerial vehicle remote control folding rubber tube antenna 13x215mm





2.3 Radiation Pattern

 3D 2D-Horizontal 2D-Vertical
2400MHz TNC male 2.4G 2400-2500M Bluetooth antenna Wi-Fi router antenna omnidirectional unmanned aerial vehicle remote control folding rubber tube antenna 13x215mm TNC male 2.4G 2400-2500M Bluetooth antenna Wi-Fi router antenna omnidirectional unmanned aerial vehicle remote control folding rubber tube antenna 13x215mm TNC male 2.4G 2400-2500M Bluetooth antenna Wi-Fi router antenna omnidirectional unmanned aerial vehicle remote control folding rubber tube antenna 13x215mm
2450MHz TNC male 2.4G 2400-2500M Bluetooth antenna Wi-Fi router antenna omnidirectional unmanned aerial vehicle remote control folding rubber tube antenna 13x215mm TNC male 2.4G 2400-2500M Bluetooth antenna Wi-Fi router antenna omnidirectional unmanned aerial vehicle remote control folding rubber tube antenna 13x215mm TNC male 2.4G 2400-2500M Bluetooth antenna Wi-Fi router antenna omnidirectional unmanned aerial vehicle remote control folding rubber tube antenna 13x215mm
2500MHz TNC male 2.4G 2400-2500M Bluetooth antenna Wi-Fi router antenna omnidirectional unmanned aerial vehicle remote control folding rubber tube antenna 13x215mm TNC male 2.4G 2400-2500M Bluetooth antenna Wi-Fi router antenna omnidirectional unmanned aerial vehicle remote control folding rubber tube antenna 13x215mm TNC male 2.4G 2400-2500M Bluetooth antenna Wi-Fi router antenna omnidirectional unmanned aerial vehicle remote control folding rubber tube antenna 13x215mm
