SMA male Lora 433M omnidirectional waterproof rubber antenna 12x135mm
SMA male Lora 433M omnidirectional waterproof rubber antenna 12x135mm
SMA male Lora 433M omnidirectional waterproof rubber antenna 12x135mm
SMA male Lora 433M omnidirectional waterproof rubber antenna 12x135mm
SMA male Lora 433M omnidirectional waterproof rubber antenna 12x135mm
SMA male Lora 433M omnidirectional waterproof rubber antenna 12x135mm
SMA male Lora 433M omnidirectional waterproof rubber antenna 12x135mm
SMA male Lora 433M omnidirectional waterproof rubber antenna 12x135mm
SMA male Lora 433M omnidirectional waterproof rubber antenna 12x135mm
SMA male Lora 433M omnidirectional waterproof rubber antenna 12x135mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10066-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
1K per day
Delivery Time :
15 days
Frequency :
433MHz
VSWR :
<2.0
Peak Gain :
-1dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 433MHz
S.W.R. <= 2.0
Antenna Gain -1dBi
Efficiency ≈23%
Polarization Linear
Impedance 50 Ohm
B. Material & Mechanical Characteristics
Connector Type SMA-J
Dimension ¢12*135mm
Color TPEE+PC Black
Weight 0.01Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

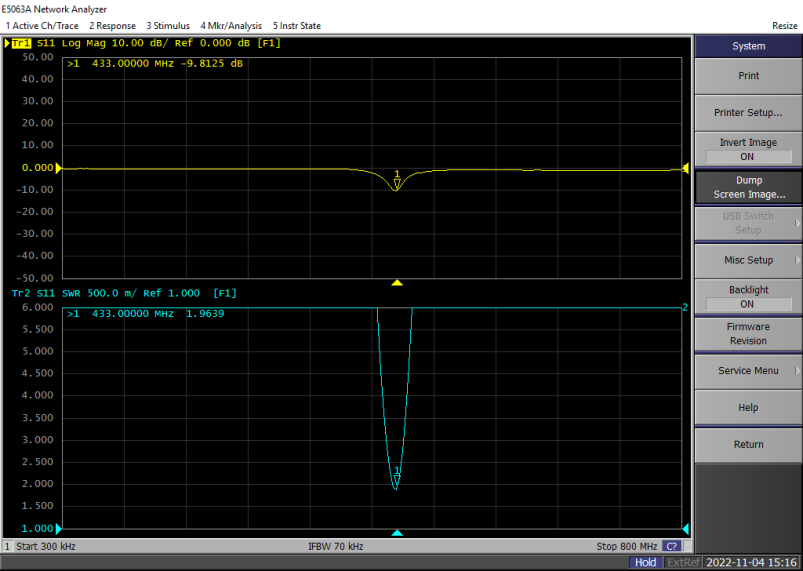

2.1 VSWR
SMA male Lora 433M omnidirectional waterproof rubber antenna 12x135mm

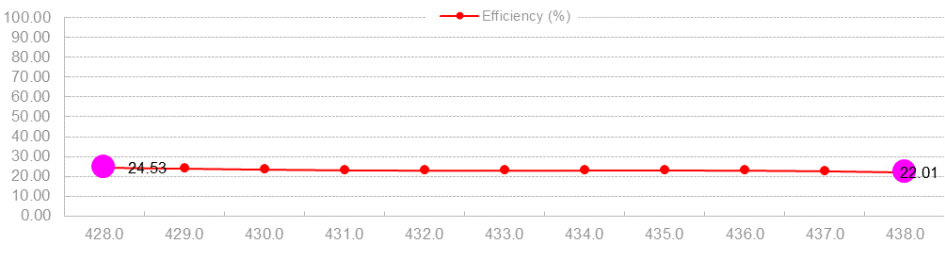

2.2 Total Efficiency & Gain


Frequency (MHz)

428.0

429.0

430.0

431.0

432.0

433.0

434.0

435.0

436.0

437.0

438.0

Gain (dBi)

-1.18

-1.28

-1.40

-1.49

-1.54

-1.58

-1.59

-1.60

-1.64

-1.73

-1.89

Efficiency (%)

24.53

24.04

23.51

23.16

22.97

22.94

23.02

23.08

23.02

22.66

22.01
SMA male Lora 433M omnidirectional waterproof rubber antenna 12x135mm

2.2 Radiation Pattern


 3D 2D-Horizontal 2D-Vertical
428MHz SMA male Lora 433M omnidirectional waterproof rubber antenna 12x135mm SMA male Lora 433M omnidirectional waterproof rubber antenna 12x135mm SMA male Lora 433M omnidirectional waterproof rubber antenna 12x135mm
433MHz SMA male Lora 433M omnidirectional waterproof rubber antenna 12x135mm SMA male Lora 433M omnidirectional waterproof rubber antenna 12x135mm SMA male Lora 433M omnidirectional waterproof rubber antenna 12x135mm
438MHz SMA male Lora 433M omnidirectional waterproof rubber antenna 12x135mm SMA male Lora 433M omnidirectional waterproof rubber antenna 12x135mm SMA male Lora 433M omnidirectional waterproof rubber antenna 12x135mm
