SMA male Lora 470-510M omnidirectional waterproof rubber antenna 12x135mm
SMA male Lora 470-510M omnidirectional waterproof rubber antenna 12x135mm
SMA male Lora 470-510M omnidirectional waterproof rubber antenna 12x135mm
SMA male Lora 470-510M omnidirectional waterproof rubber antenna 12x135mm
SMA male Lora 470-510M omnidirectional waterproof rubber antenna 12x135mm
SMA male Lora 470-510M omnidirectional waterproof rubber antenna 12x135mm
SMA male Lora 470-510M omnidirectional waterproof rubber antenna 12x135mm
SMA male Lora 470-510M omnidirectional waterproof rubber antenna 12x135mm
SMA male Lora 470-510M omnidirectional waterproof rubber antenna 12x135mm
SMA male Lora 470-510M omnidirectional waterproof rubber antenna 12x135mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10669-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
1K per day
Delivery Time :
15 days
Frequency :
470-510MHz
VSWR :
<2.0
Peak Gain :
1dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 470-510MHz
S.W.R. <= 2.0
Antenna Gain 1dBi
Efficiency ≈46%
Polarization Linear
Impedance 50 Ohm
B. Material & Mechanical Characteristics
Connector Type SMA-J
Dimension ¢12*135mm
Color TPEE+PC Black
Weight 0.01Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

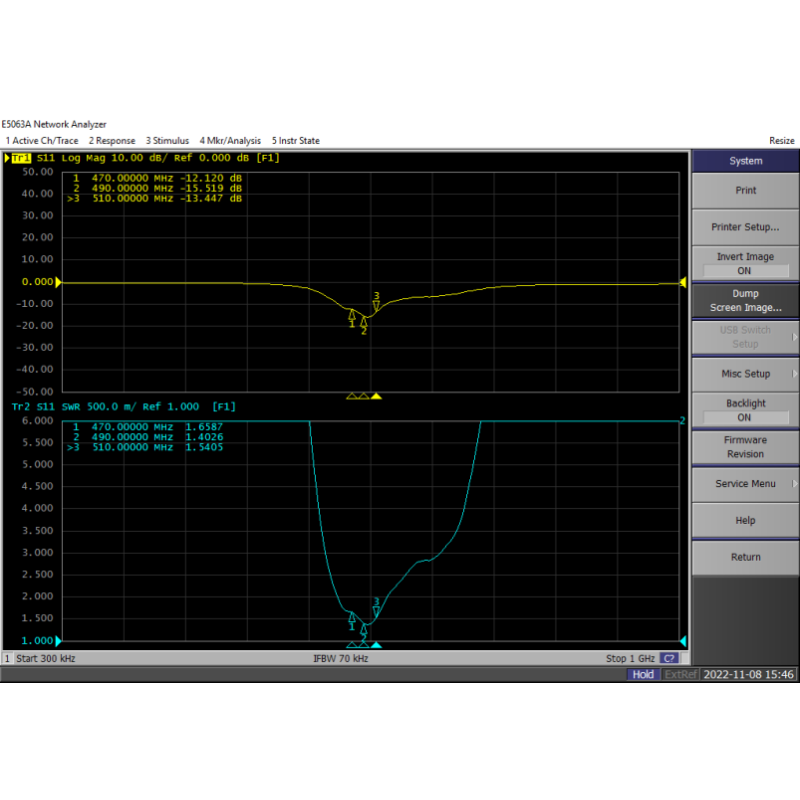

2.1 VSWR
SMA male Lora 470-510M omnidirectional waterproof rubber antenna 12x135mm

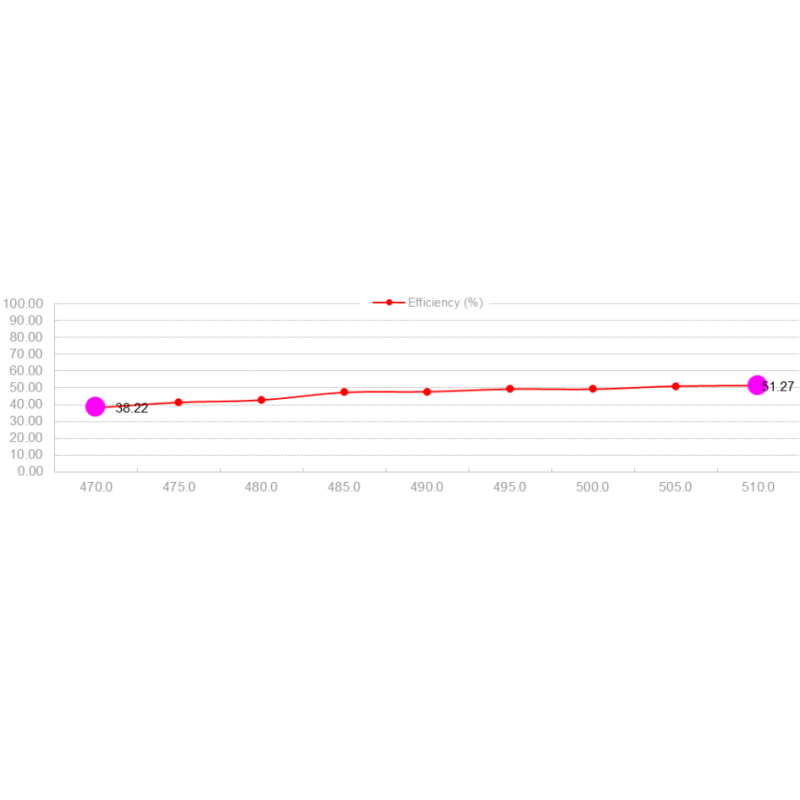

2.2 Total Efficiency & Gain


Frequency (MHz)

470.0

475.0

480.0

485.0

490.0

495.0

500.0

505.0

510.0

Gain (dBi)

-0.06

0.27

0.42

0.82

0.76

0.80

0.71

0.84

0.87

Efficiency (%)

38.22

41.37

42.74

47.22

47.60

49.20

49.10

50.89

51.27

SMA male Lora 470-510M omnidirectional waterproof rubber antenna 12x135mm

2.2 Radiation Pattern


 3D 2D-Horizontal 2D-Vertical
470MHz SMA male Lora 470-510M omnidirectional waterproof rubber antenna 12x135mm SMA male Lora 470-510M omnidirectional waterproof rubber antenna 12x135mm SMA male Lora 470-510M omnidirectional waterproof rubber antenna 12x135mm
490MHz SMA male Lora 470-510M omnidirectional waterproof rubber antenna 12x135mm SMA male Lora 470-510M omnidirectional waterproof rubber antenna 12x135mm SMA male Lora 470-510M omnidirectional waterproof rubber antenna 12x135mm
510MHz SMA male Lora 470-510M omnidirectional waterproof rubber antenna 12x135mm SMA male Lora 470-510M omnidirectional waterproof rubber antenna 12x135mm SMA male Lora 470-510M omnidirectional waterproof rubber antenna 12x135mm
