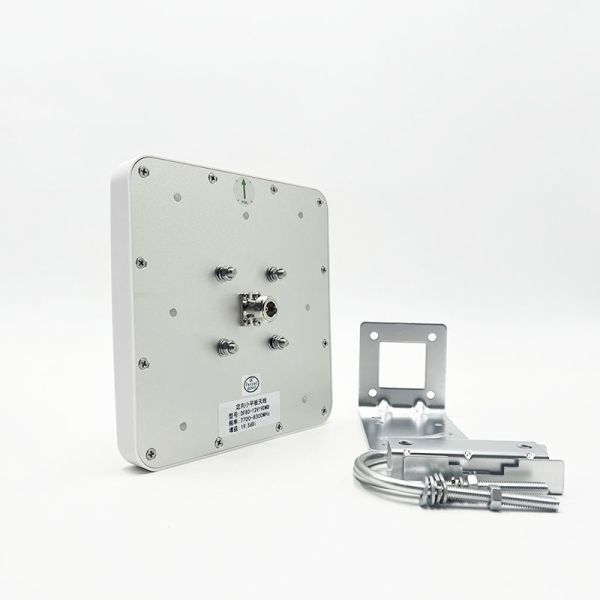

7700-8300MHz 19dBi UAV Directional Antenna with 50W Max Power and N-K Connector
7700-8300MHz 19dBi UAV Directional Antenna with 50W Max Power and N-K Connector
7700-8300MHz 19dBi UAV Directional Antenna with 50W Max Power and N-K Connector
7700-8300MHz 19dBi UAV Directional Antenna with 50W Max Power and N-K Connector
7700-8300MHz 19dBi UAV Directional Antenna with 50W Max Power and N-K Connector
7700-8300MHz 19dBi UAV Directional Antenna with 50W Max Power and N-K Connector
7700-8300MHz 19dBi UAV Directional Antenna with 50W Max Power and N-K Connector
7700-8300MHz 19dBi UAV Directional Antenna with 50W Max Power and N-K Connector
7700-8300MHz 19dBi UAV Directional Antenna with 50W Max Power and N-K Connector
7700-8300MHz 19dBi UAV Directional Antenna with 50W Max Power and N-K Connector
Specifications
Brand Name :
Leenz
Model Number :
LZANT-11031-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
7700-8300MHz
VSWR :
<2.0
Peak Gain :
19dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 7700-8300MHz
S.W.R. <= 2.0
Antenna Gain 19dBi
Polarization V
Horizontal Beamwidth 14±2°
Vertical Beamwidth 14±2°
F/B ＞20db
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type N -K
Dimension 160*160*23mm
Radome material ABS
Mount Pole ∅30-∅50
Weight 0.4Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR

7700-8300MHz 19dBi UAV Directional Antenna with 50W Max Power and N-K Connector

2.2 Total Efficiency & Gain:

Frequency(MHz)

Gain(dBi)

7700

19.1

7750

18.8

7800

18.5

7850

19.4

7900

19.0

7950

19.7

8000

19.9

8050

19.9

8100

19.2

8150

20.2

8200

20.0

8250

19.7

8300

20.0



2.3 Radiation Pattern
Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
7700MHz 7700-8300MHz 19dBi UAV Directional Antenna with 50W Max Power and N-K Connector 7700-8300MHz 19dBi UAV Directional Antenna with 50W Max Power and N-K Connector 7700-8300MHz 19dBi UAV Directional Antenna with 50W Max Power and N-K Connector
8000MHz 7700-8300MHz 19dBi UAV Directional Antenna with 50W Max Power and N-K Connector 7700-8300MHz 19dBi UAV Directional Antenna with 50W Max Power and N-K Connector 7700-8300MHz 19dBi UAV Directional Antenna with 50W Max Power and N-K Connector
8300MHz 7700-8300MHz 19dBi UAV Directional Antenna with 50W Max Power and N-K Connector 7700-8300MHz 19dBi UAV Directional Antenna with 50W Max Power and N-K Connector 7700-8300MHz 19dBi UAV Directional Antenna with 50W Max Power and N-K Connector
