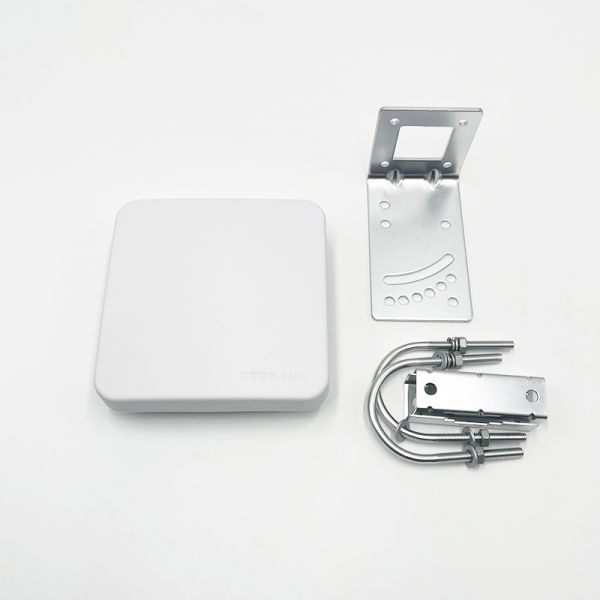

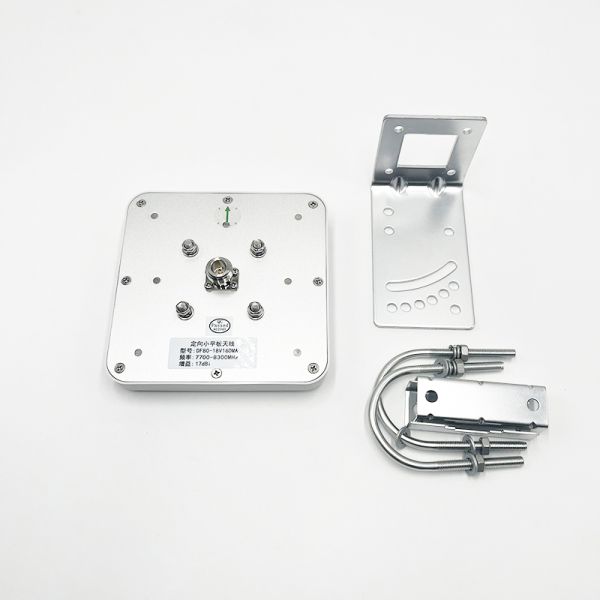

7700-8300MHz 17dBi UAV Directional Antenna with 50W Max Power and N-K Connector
7700-8300MHz 17dBi UAV Directional Antenna with 50W Max Power and N-K Connector
7700-8300MHz 17dBi UAV Directional Antenna with 50W Max Power and N-K Connector
7700-8300MHz 17dBi UAV Directional Antenna with 50W Max Power and N-K Connector
7700-8300MHz 17dBi UAV Directional Antenna with 50W Max Power and N-K Connector
7700-8300MHz 17dBi UAV Directional Antenna with 50W Max Power and N-K Connector
7700-8300MHz 17dBi UAV Directional Antenna with 50W Max Power and N-K Connector
7700-8300MHz 17dBi UAV Directional Antenna with 50W Max Power and N-K Connector
7700-8300MHz 17dBi UAV Directional Antenna with 50W Max Power and N-K Connector
7700-8300MHz 17dBi UAV Directional Antenna with 50W Max Power and N-K Connector
7700-8300MHz 17dBi UAV Directional Antenna with 50W Max Power and N-K Connector
7700-8300MHz 17dBi UAV Directional Antenna with 50W Max Power and N-K Connector
Specifications
Brand Name :
Leenz
Model Number :
LZANT-11030-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
7700-8300MHz
VSWR :
<2.0
Peak Gain :
17dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 7700-8300MHz
S.W.R. <= 2.0
Antenna Gain 17dBi
Polarization V
Horizontal Beamwidth 18±2°
Vertical Beamwidth 18±2°
F/B ＞20db
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type N -K
Dimension 130*130*23mm
Radome material ABS
Mount Pole ∅30-∅50
Weight 0.33Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR

7700-8300MHz 17dBi UAV Directional Antenna with 50W Max Power and N-K Connector


7700-8300MHz 17dBi UAV Directional Antenna with 50W Max Power and N-K Connector


2.2 Total Efficiency & Gain:

Frequency(MHz)

Gain(dBi)

7700

17.1

7750

17.2

7800

17.6

7850

17.7

7900

16.9

7950

18.2

8000

18.1

8050

18.4

8100

17.6

8150

18.3

8200

17.6

8250

17.6

8300

17.5



2.3 Radiation Pattern
Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
7700MHz 7700-8300MHz 17dBi UAV Directional Antenna with 50W Max Power and N-K Connector 7700-8300MHz 17dBi UAV Directional Antenna with 50W Max Power and N-K Connector 7700-8300MHz 17dBi UAV Directional Antenna with 50W Max Power and N-K Connector
8000MHz 7700-8300MHz 17dBi UAV Directional Antenna with 50W Max Power and N-K Connector 7700-8300MHz 17dBi UAV Directional Antenna with 50W Max Power and N-K Connector 7700-8300MHz 17dBi UAV Directional Antenna with 50W Max Power and N-K Connector
8300MHz 7700-8300MHz 17dBi UAV Directional Antenna with 50W Max Power and N-K Connector 7700-8300MHz 17dBi UAV Directional Antenna with 50W Max Power and N-K Connector 7700-8300MHz 17dBi UAV Directional Antenna with 50W Max Power and N-K Connector
