1000-1200M 14dbi dual-polarized directional antenna 1.2G directional antenna 290x390x50mm
1000-1200M 14dbi dual-polarized directional antenna 1.2G directional antenna 290x390x50mm
1000-1200M 14dbi dual-polarized directional antenna 1.2G directional antenna 290x390x50mm
1000-1200M 14dbi dual-polarized directional antenna 1.2G directional antenna 290x390x50mm
1000-1200M 14dbi dual-polarized directional antenna 1.2G directional antenna 290x390x50mm
1000-1200M 14dbi dual-polarized directional antenna 1.2G directional antenna 290x390x50mm
1000-1200M 14dbi dual-polarized directional antenna 1.2G directional antenna 290x390x50mm
1000-1200M 14dbi dual-polarized directional antenna 1.2G directional antenna 290x390x50mm
1000-1200M 14dbi dual-polarized directional antenna 1.2G directional antenna 290x390x50mm
1000-1200M 14dbi dual-polarized directional antenna 1.2G directional antenna 290x390x50mm
Specifications
Model Number :
LZANT-12285-A
MOQ :
10
Frequency :
1000-1200MHz
Payment Terms :
T/T
Certification :
RoHs
Supply Ability :
500 per day
Impedance :
50
Place of Origin :
China
Delivery Time :
15 days
Peak Gain :
14dBi
Brand Name :
Leenz
VSWR :
<2.0
Description

1. Specification

A. Electrical Characteristics
Frequency 1000-1200MHz
S.W.R. <= 2.0
Antenna Gain 14±1dBi
Polarization H/V
Horizontal Beamwidth 40±5°
Vertical Beamwidth 35±5°
F/B >20dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type N - K *2
Dimension

390*390*50mm
Radome material ABS
Weight 1.8Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
1000-1200M 14dbi dual-polarized directional antenna 1.2G directional antenna 290x390x50mm

2.2 Total Efficiency & Gain:

Port 1(H)

Port 2(V)

Frequency(MHz)

Gain(dBi)

Frequency(MHz)

Gain(dBi)

1000

13.5

1000

13.7

1020

13.2

1020

13.5

1040

13.7

1040

14.1

1060

13.7

1060

14.0

1080

13.8

1080

13.7

1100

14.1

1100

13.9

1120

14.0

1120

14.0

1140

14.2

1140

13.8

1160

14.2

1160

13.8

1180

14.6

1180

14.2

1200

14.1

1200

13.7

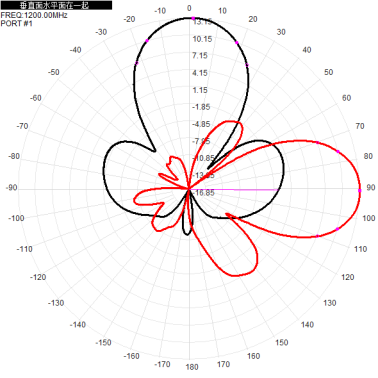

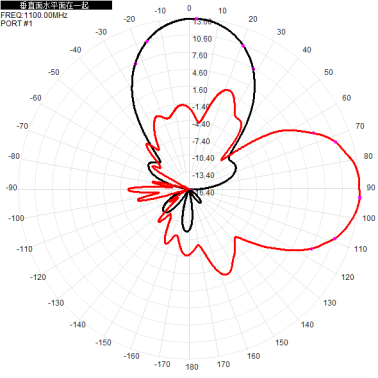

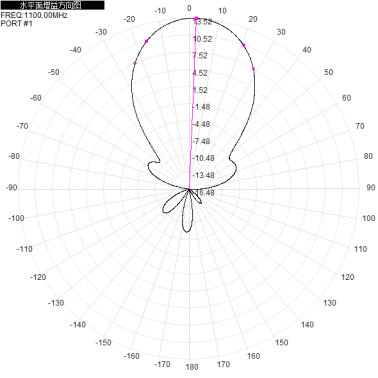

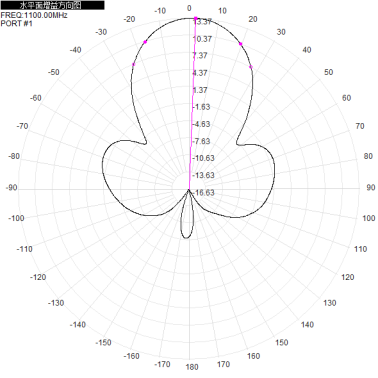

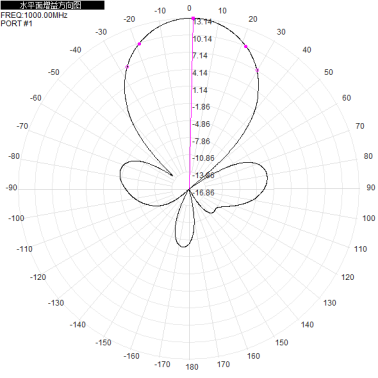

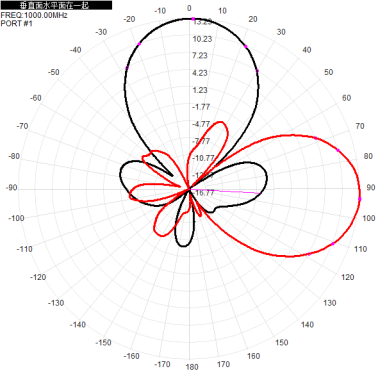

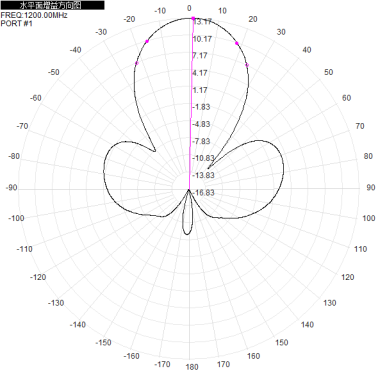

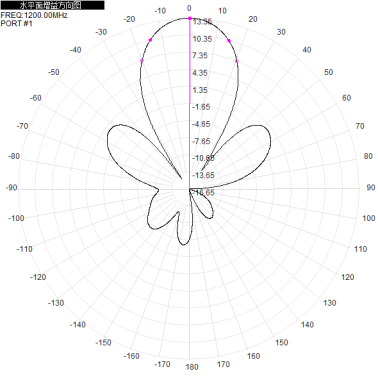

2.3 Radiation Pattern

Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
1000MHz 1000-1200M 14dbi dual-polarized directional antenna 1.2G directional antenna 290x390x50mm 1000-1200M 14dbi dual-polarized directional antenna 1.2G directional antenna 290x390x50mm 1000-1200M 14dbi dual-polarized directional antenna 1.2G directional antenna 290x390x50mm
1100MHz 1000-1200M 14dbi dual-polarized directional antenna 1.2G directional antenna 290x390x50mm 1000-1200M 14dbi dual-polarized directional antenna 1.2G directional antenna 290x390x50mm 1000-1200M 14dbi dual-polarized directional antenna 1.2G directional antenna 290x390x50mm
1200MHz 1000-1200M 14dbi dual-polarized directional antenna 1.2G directional antenna 290x390x50mm 1000-1200M 14dbi dual-polarized directional antenna 1.2G directional antenna 290x390x50mm 1000-1200M 14dbi dual-polarized directional antenna 1.2G directional antenna 290x390x50mm

Port2 2D-Horizontal 2D-Vertical Horizontal & Vertical
1000MHz 1000-1200M 14dbi dual-polarized directional antenna 1.2G directional antenna 290x390x50mm 1000-1200M 14dbi dual-polarized directional antenna 1.2G directional antenna 290x390x50mm 1000-1200M 14dbi dual-polarized directional antenna 1.2G directional antenna 290x390x50mm
1100MHz 1000-1200M 14dbi dual-polarized directional antenna 1.2G directional antenna 290x390x50mm 1000-1200M 14dbi dual-polarized directional antenna 1.2G directional antenna 290x390x50mm 1000-1200M 14dbi dual-polarized directional antenna 1.2G directional antenna 290x390x50mm
1200MHz 1000-1200M 14dbi dual-polarized directional antenna 1.2G directional antenna 290x390x50mm 1000-1200M 14dbi dual-polarized directional antenna 1.2G directional antenna 290x390x50mm 1000-1200M 14dbi dual-polarized directional antenna 1.2G directional antenna 290x390x50mm
