Specifications
Certification :
RoHs
Model Number :
LZANT-12284-A
Delivery Time :
15 days
Peak Gain :
12dBi
MOQ :
10
Frequency :
800-950MHz
Supply Ability :
500 per day
Impedance :
50
Payment Terms :
T/T
Place of Origin :
China
Brand Name :
Leenz
VSWR :
<2.0
Description

1. Specification

A. Electrical Characteristics
Frequency 800-950MHz
S.W.R. <= 2.0
Antenna Gain 12±1dBi
Polarization H/V
Horizontal Beamwidth 45±10°
Vertical Beamwidth 45±10°
F/B >20dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type N - K *2
Dimension

390*390*50mm
Radome material ABS
Weight 1.6Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data

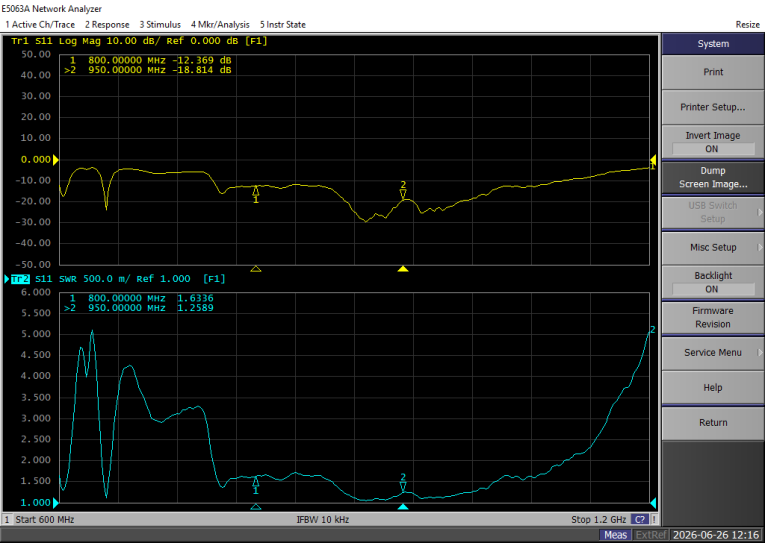

2.1 VSWR
800-950M 12dbi dual-polarized directional antenna 900M directional antenna 290x390x50mm

2.2 Total Efficiency & Gain:

Port 1(H)

Port 2(V)

Frequency(MHz)

Gain(dBi)

Frequency(MHz)

Gain(dBi)

800

11.2

800

11.2

810

10.8

810

11.2

820

10.6

820

11.2

830

10.5

830

11.1

840

10.6

840

11.5

850

10.8

850

11.7

860

10.7

860

11.8

870

10.8

870

12.1

880

10.9

880

12.1

890

10.7

890

10.7

900

10.5

900

10.6

910

10.8

910

10.5

920

11.2

920

10.4

930

11.3

930

10.3

940

11.4

940

10.1

950

11.3

950

10.0

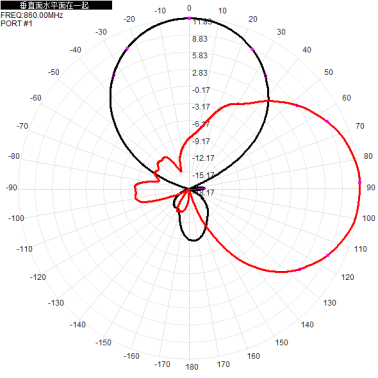

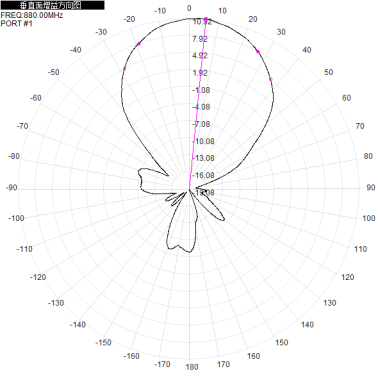

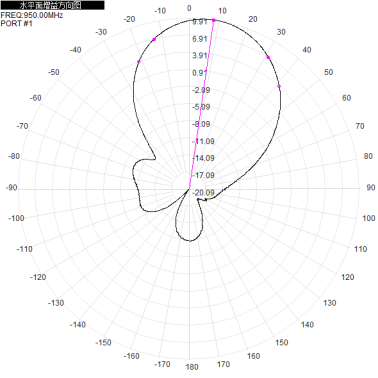

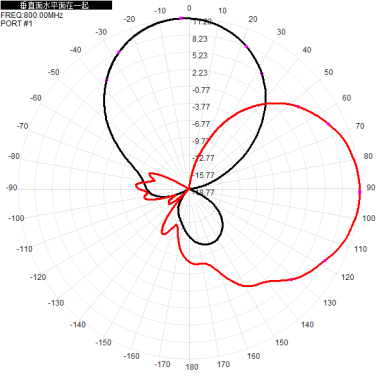

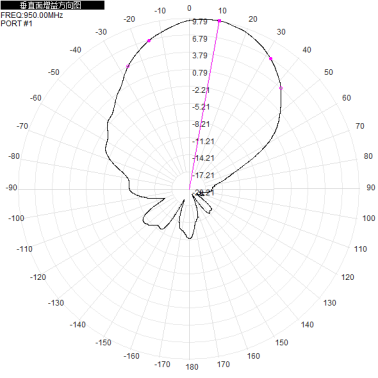

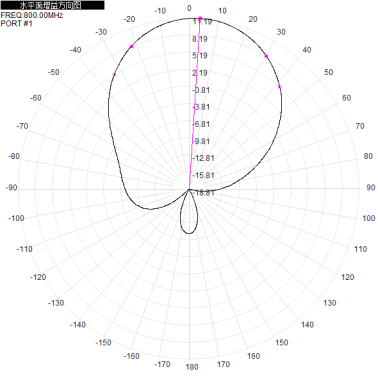

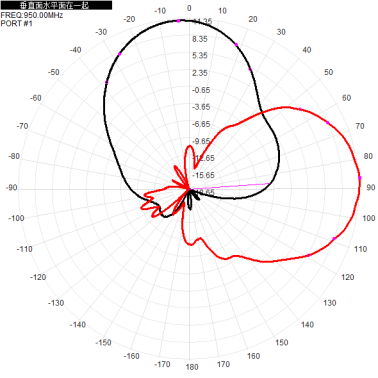

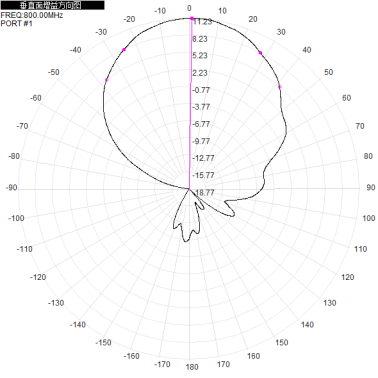

2.3 Radiation Pattern

Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
800MHz 800-950M 12dbi dual-polarized directional antenna 900M directional antenna 290x390x50mm 800-950M 12dbi dual-polarized directional antenna 900M directional antenna 290x390x50mm 800-950M 12dbi dual-polarized directional antenna 900M directional antenna 290x390x50mm

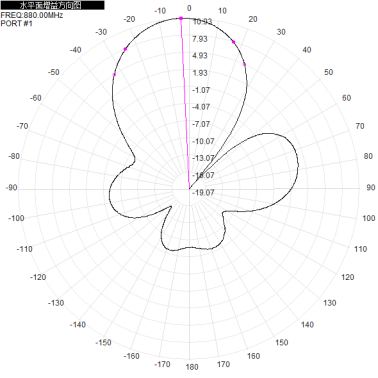

880MHz 800-950M 12dbi dual-polarized directional antenna 900M directional antenna 290x390x50mm 800-950M 12dbi dual-polarized directional antenna 900M directional antenna 290x390x50mm 800-950M 12dbi dual-polarized directional antenna 900M directional antenna 290x390x50mm

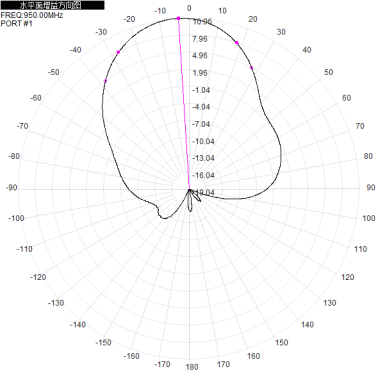

950MHz 800-950M 12dbi dual-polarized directional antenna 900M directional antenna 290x390x50mm 800-950M 12dbi dual-polarized directional antenna 900M directional antenna 290x390x50mm 800-950M 12dbi dual-polarized directional antenna 900M directional antenna 290x390x50mm

Port2 2D-Horizontal 2D-Vertical Horizontal & Vertical
800MHz 800-950M 12dbi dual-polarized directional antenna 900M directional antenna 290x390x50mm 800-950M 12dbi dual-polarized directional antenna 900M directional antenna 290x390x50mm 800-950M 12dbi dual-polarized directional antenna 900M directional antenna 290x390x50mm
880MHz 800-950M 12dbi dual-polarized directional antenna 900M directional antenna 290x390x50mm 800-950M 12dbi dual-polarized directional antenna 900M directional antenna 290x390x50mm 800-950M 12dbi dual-polarized directional antenna 900M directional antenna 290x390x50mm
950MHz 800-950M 12dbi dual-polarized directional antenna 900M directional antenna 290x390x50mm 800-950M 12dbi dual-polarized directional antenna 900M directional antenna 290x390x50mm 800-950M 12dbi dual-polarized directional antenna 900M directional antenna 290x390x50mm
