860-930M 865M-868M-902-928M Circularly Polarized Directional Antenna, 186x186x28mm
860-930M 865M-868M-902-928M Circularly Polarized Directional Antenna, 186x186x28mm
860-930M 865M-868M-902-928M Circularly Polarized Directional Antenna, 186x186x28mm
860-930M 865M-868M-902-928M Circularly Polarized Directional Antenna, 186x186x28mm
860-930M 865M-868M-902-928M Circularly Polarized Directional Antenna, 186x186x28mm
860-930M 865M-868M-902-928M Circularly Polarized Directional Antenna, 186x186x28mm
860-930M 865M-868M-902-928M Circularly Polarized Directional Antenna, 186x186x28mm
860-930M 865M-868M-902-928M Circularly Polarized Directional Antenna, 186x186x28mm
860-930M 865M-868M-902-928M Circularly Polarized Directional Antenna, 186x186x28mm
860-930M 865M-868M-902-928M Circularly Polarized Directional Antenna, 186x186x28mm
Specifications
Model Number :
LZANT-12004-A
MOQ :
10
Frequency :
965-928MHz
Supply Ability :
500 per day
Impedance :
50
Payment Terms :
T/T
Certification :
RoHs
Delivery Time :
15 days
Peak Gain :
7dBi
Brand Name :
Leenz
Place of Origin :
China
VSWR :
<2.0
Description

1. Specification

A. Electrical Characteristics
Frequency 865-928MHz
S.W.R. <2.0
Antenna Gain 7dBi
Polarization RHCP
Horizontal Beamwidth 75±10°
Vertical Beamwidth 75±10°
F/B >17dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type N -K
Dimension 186*186*28mm
Radome material ABS
Weight 0.55Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data

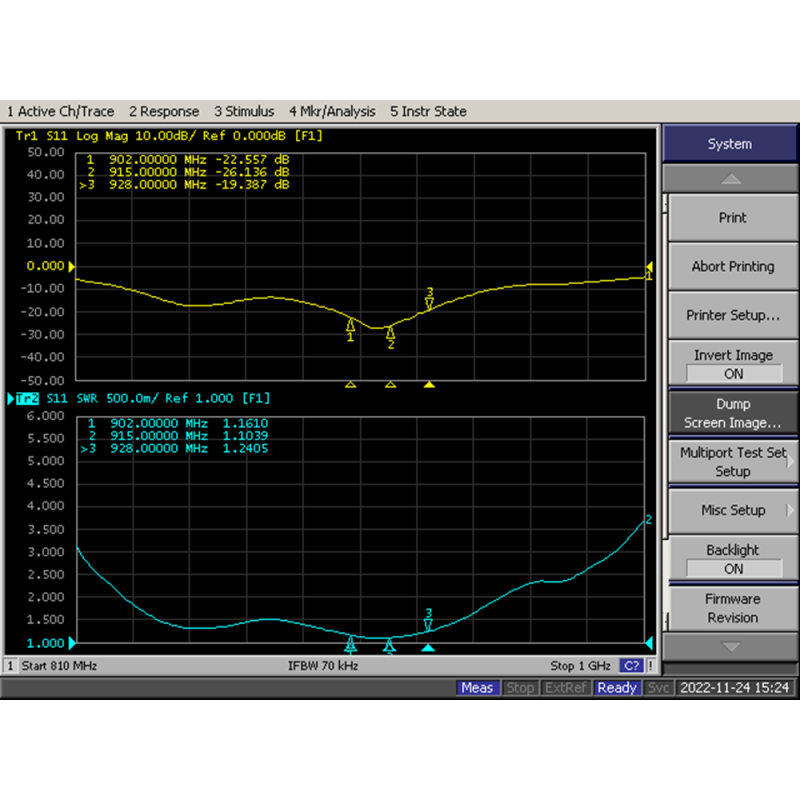

2.1 VSWR




2.2 Total Efficiency & Gain:

Frequency(MHz) Gain(dBi) Efficiency (%)
900.0 6.85 65.00
905.0 7.15 67.84
910.0 7.18 66.84
915.0 7.31 67.50
920.0 7.25 65.98
925.0 7.36 67.15
930.0 7.30 65.95

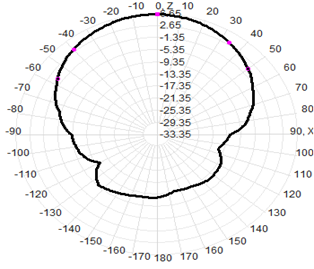

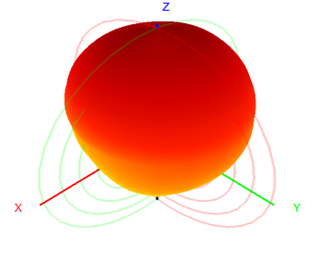

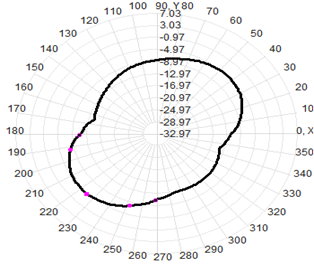

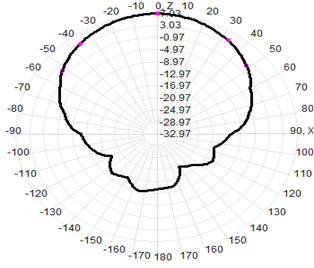

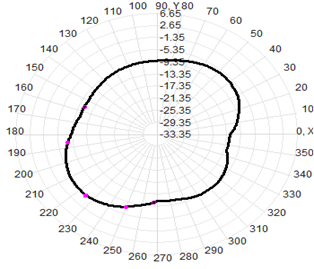

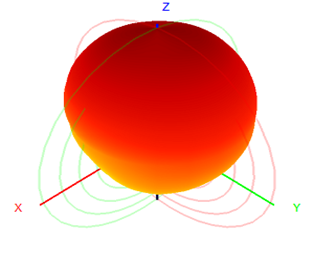

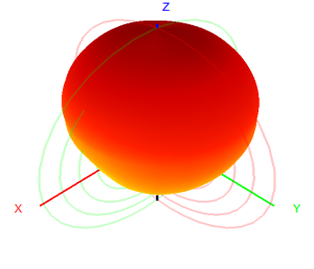

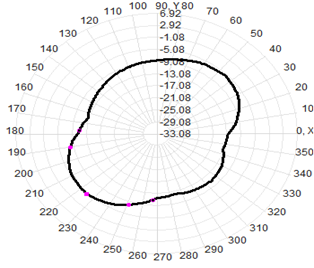

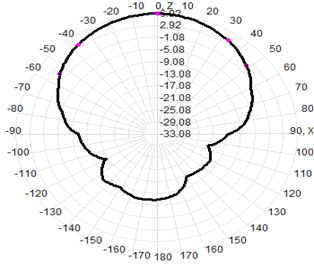

2.3 Radiation Pattern


 3D 2D-Horizontal 2D-Vertical
902MHz
915MHz
928MHz
