Specifications
Model Number :
LZANT-11130-A
VSWR :
<2.0
Delivery Time :
15 days
Brand Name :
Leenz
Frequency :
5900-7125MHz
Supply Ability :
500 per day
Payment Terms :
T/T
MOQ :
10
Certification :
RoHs
Peak Gain :
23dBi
Place of Origin :
China
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 5900-7125MHz
S.W.R. <= 3.0
Antenna Gain 23dBi
Polarization H+V
Horizontal Beamwidth 9±2°
Vertical Beamwidth 9±2°
F/B >25dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type 2*MMCX-JW connector
Dimension

305*305*30mm
Radome material ABS
Weight 0.95Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data

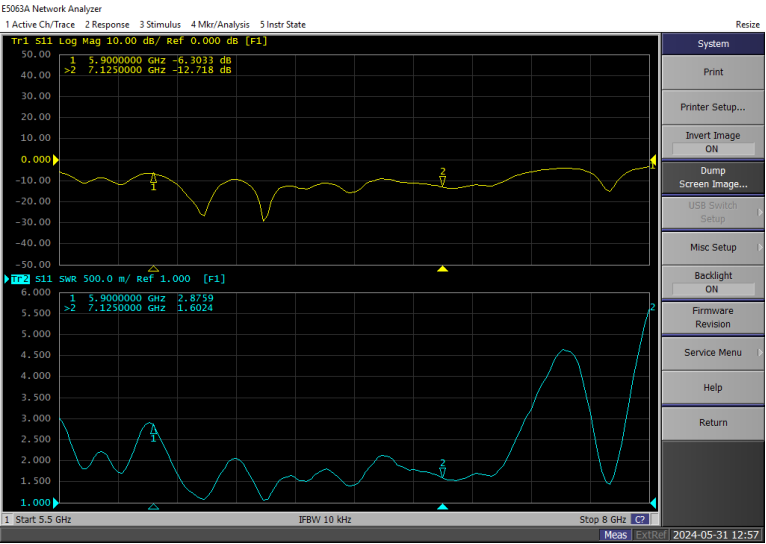

2.1 VSWR
wifi6e 5.9-7.2G 5900-7125M dual-polarized 23dbi directional antenna 305x305x30mm

2.2 Total Efficiency & Gain:

Port 1(H)

Port 2(V)

Frequency(MHz)

Gain(dBi)

Frequency(MHz)

Gain(dBi)

5900

22.2

5900

22.7

6000

22.5

6000

23.0

6100

23.9

6100

23.8

6200

22.6

6200

23.8

6300

23.4

6300

24.4

6400

23.5

6400

23.8

6500

23.3

6500

24.3

6600

22.8

6600

23.6

6700

23.0

6700

24.1

6800

22.5

6800

23.4

6900

22.1

6900

22.9

7000

22.4

7000

22.5

7100

22.6

7100

22.6

7125

22.3

7125

22.1


2.3 Radiation Pattern

Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical

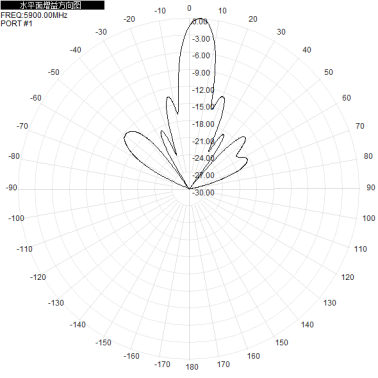

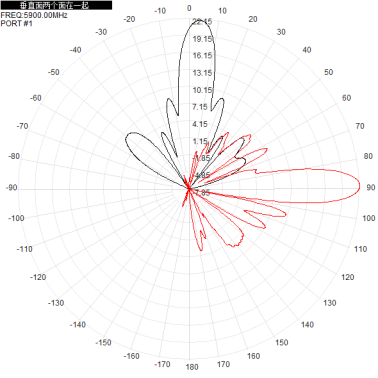

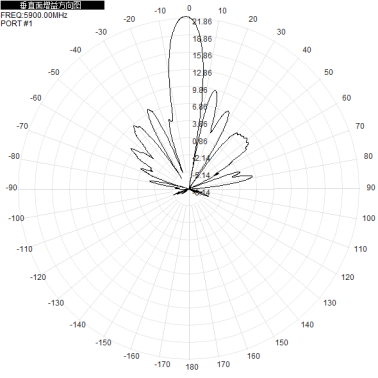

5900MHz wifi6e 5.9-7.2G 5900-7125M dual-polarized 23dbi directional antenna 305x305x30mm wifi6e 5.9-7.2G 5900-7125M dual-polarized 23dbi directional antenna 305x305x30mm wifi6e 5.9-7.2G 5900-7125M dual-polarized 23dbi directional antenna 305x305x30mm

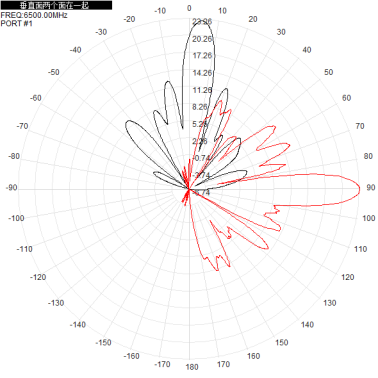

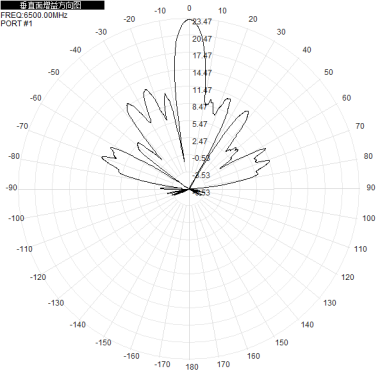

6500MHz wifi6e 5.9-7.2G 5900-7125M dual-polarized 23dbi directional antenna 305x305x30mm wifi6e 5.9-7.2G 5900-7125M dual-polarized 23dbi directional antenna 305x305x30mm wifi6e 5.9-7.2G 5900-7125M dual-polarized 23dbi directional antenna 305x305x30mm

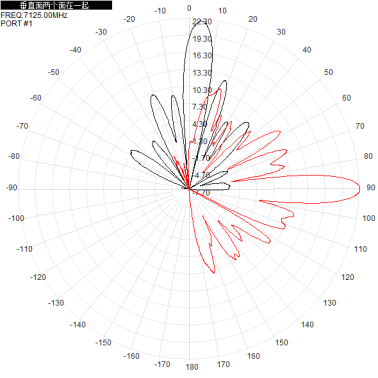

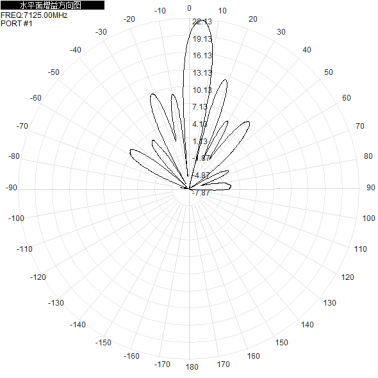

7125MHz wifi6e 5.9-7.2G 5900-7125M dual-polarized 23dbi directional antenna 305x305x30mm wifi6e 5.9-7.2G 5900-7125M dual-polarized 23dbi directional antenna 305x305x30mm wifi6e 5.9-7.2G 5900-7125M dual-polarized 23dbi directional antenna 305x305x30mm
