2.4G 5.8G 10dbi eight-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ264x261mm
2.4G 5.8G 10dbi eight-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ264x261mm
2.4G 5.8G 10dbi eight-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ264x261mm
2.4G 5.8G 10dbi eight-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ264x261mm
2.4G 5.8G 10dbi eight-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ264x261mm
2.4G 5.8G 10dbi eight-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ264x261mm
2.4G 5.8G 10dbi eight-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ264x261mm
2.4G 5.8G 10dbi eight-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ264x261mm
2.4G 5.8G 10dbi eight-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ264x261mm
2.4G 5.8G 10dbi eight-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ264x261mm
Specifications
Model Number :
LZANT-11726-A
VSWR :
<1.7
Supply Ability :
50 per day
Payment Terms :
T/T
Delivery Time :
15 days
Brand Name :
Leenz
Frequency :
2400-2500MHz; 5180-5850MHz
MOQ :
10
Certification :
RoHs
Peak Gain :
10dBi
Place of Origin :
China
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 2400-2500MHz 5150-5850MHz
S.W.R. <= 1.7 <= 1.7
Antenna Gain 10dBi 10dBi
Polarization V V
Horizontal Beamwidth 70±10° 70±10°
Vertical Beamwidth 40±5° 40±5°
Impedance 50Ohm 50Ohm
Max. Power 100W 100W
B. Material & Mechanical Characteristics
Connector Type 16*SMA-J
Dimension φ261*261±2mm
Radome material Aluminum alloy + PCB
Weight 1.4Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR

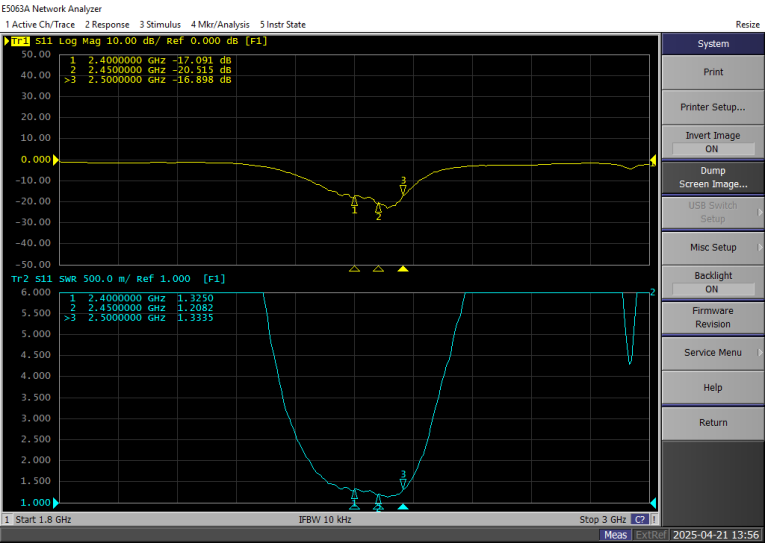

Port 2.4G
2.4G 5.8G 10dbi eight-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ264x261mm

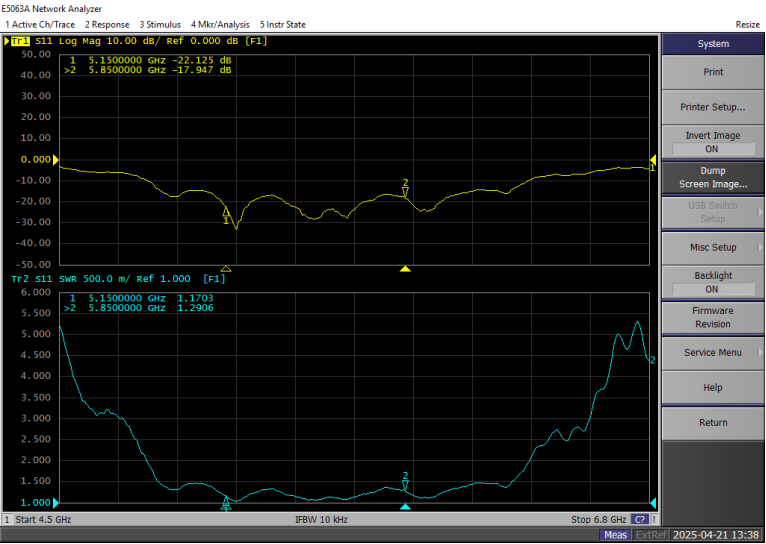

Port 5.8G
2.4G 5.8G 10dbi eight-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ264x261mm


2.2 Total Efficiency & Gain:

Frequency(MHz)

Gain(dBi)

Efficiency(%)

Frequency(MHz)

Gain(dBi)

Efficiency(%)

2400

9.9

73.0

5150

9.6

71.9

2410

9.9

72.5

5250

9.6

73.4

2420

9.9

72.3

5350

10.0

72.7

2430

9.8

72.5

5450

10.3

78.7

2440

9.8

73.1

5550

10.0

69.9

2450

9.8

73.1

5650

9.8

68.8

2460

9.8

73.3

5750

9.8

69.8

2470

9.8

74.5

5850

10.2

69.3

2480

9.8

74.6

2490

9.8

74.1

2500

9.8

74.1




2.3 Radiation Pattern
Port1-8 3D 2D-Horizontal 2D-Vertical

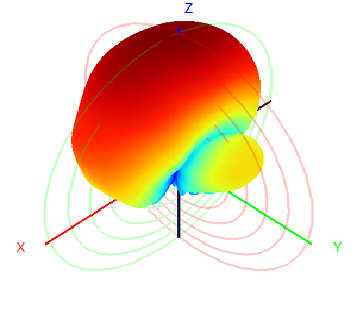

2400MHz 2.4G 5.8G 10dbi eight-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ264x261mm 2.4G 5.8G 10dbi eight-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ264x261mm 2.4G 5.8G 10dbi eight-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ264x261mm

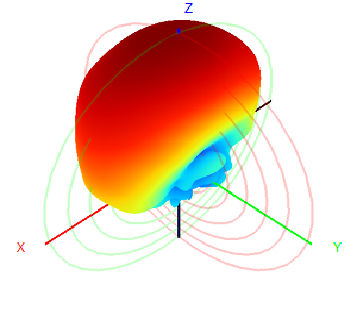

2450MHz 2.4G 5.8G 10dbi eight-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ264x261mm 2.4G 5.8G 10dbi eight-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ264x261mm 2.4G 5.8G 10dbi eight-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ264x261mm

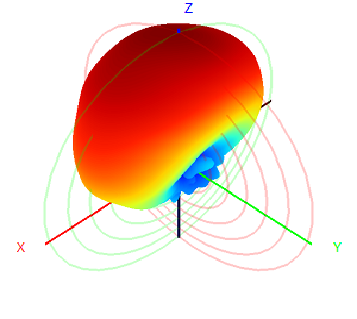

2500MHz 2.4G 5.8G 10dbi eight-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ264x261mm 2.4G 5.8G 10dbi eight-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ264x261mm 2.4G 5.8G 10dbi eight-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ264x261mm


Port 9-16 3D 2D-Horizontal 2D-Vertical

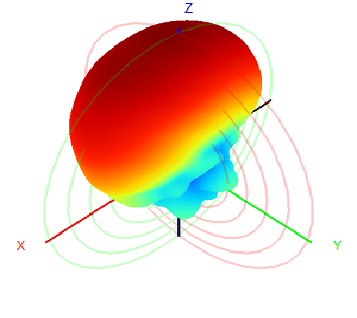

5150MHz 2.4G 5.8G 10dbi eight-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ264x261mm 2.4G 5.8G 10dbi eight-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ264x261mm 2.4G 5.8G 10dbi eight-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ264x261mm

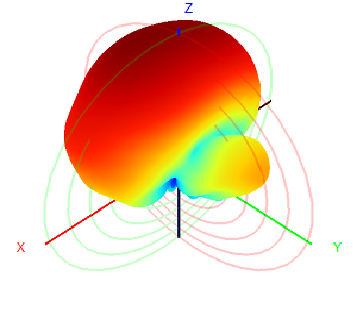

5550MHz 2.4G 5.8G 10dbi eight-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ264x261mm 2.4G 5.8G 10dbi eight-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ264x261mm 2.4G 5.8G 10dbi eight-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ264x261mm

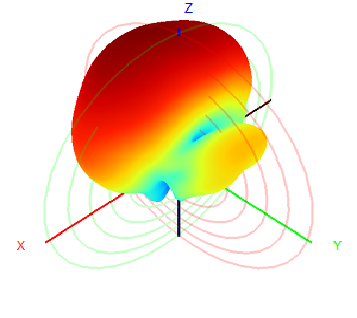

5850MHz 2.4G 5.8G 10dbi eight-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ264x261mm 2.4G 5.8G 10dbi eight-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ264x261mm 2.4G 5.8G 10dbi eight-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ264x261mm
