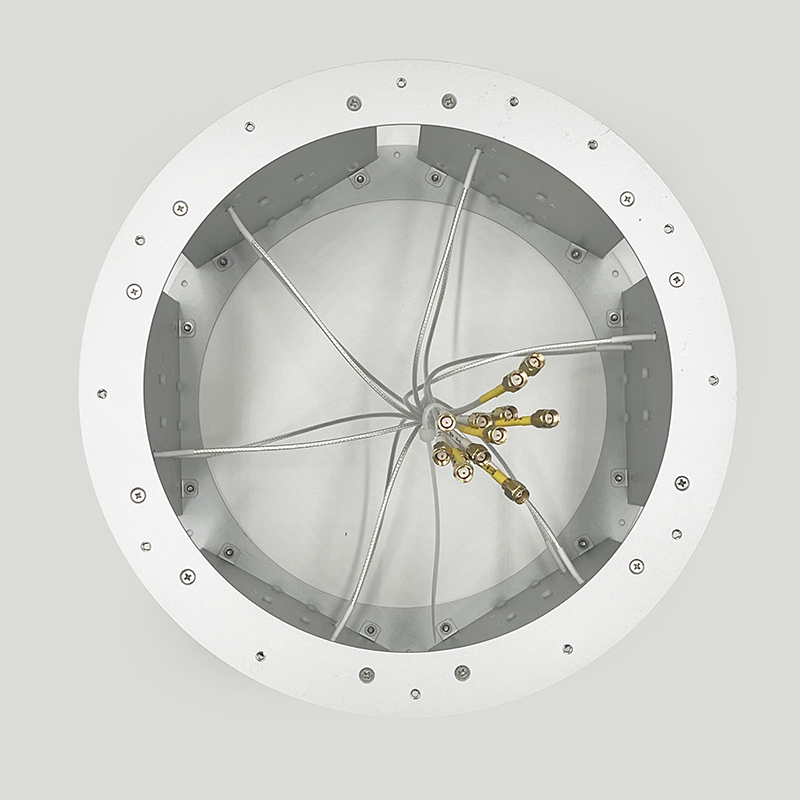

2.4G 5.8G 10dbi six-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ291x200mm
2.4G 5.8G 10dbi six-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ291x200mm
2.4G 5.8G 10dbi six-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ291x200mm
2.4G 5.8G 10dbi six-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ291x200mm
2.4G 5.8G 10dbi six-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ291x200mm
2.4G 5.8G 10dbi six-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ291x200mm
2.4G 5.8G 10dbi six-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ291x200mm
2.4G 5.8G 10dbi six-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ291x200mm
2.4G 5.8G 10dbi six-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ291x200mm
2.4G 5.8G 10dbi six-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ291x200mm
Specifications
MOQ :
10
Frequency :
2400-2500MHz; 5180-5850MHz
Certification :
RoHs
Model Number :
LZANT-12262-A
Supply Ability :
50 per day
Impedance :
50
Payment Terms :
T/T
Delivery Time :
15 days
Peak Gain :
10dBi
Brand Name :
Leenz
Place of Origin :
China
VSWR :
<2.0
Description

1. Specification

A. Electrical Characteristics
Frequency 2400-2500MHz 5150-5850MHz
S.W.R. <= 2.0 <= 2.0
Antenna Gain 10dBi 10-12dBi
Polarization V V
Horizontal Beamwidth 69-74° 69-95°
Vertical Beamwidth 30-32° 15-21°
Impedance 50Ohm 50Ohm
Max. Power 50W 50W
B. Material & Mechanical Characteristics
Connector Type 12*SMA-J
Dimension φ291*200±2mm
Radome material Aluminum alloy + PCB
Weight 2.3Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
Port 2.4G
2.4G 5.8G 10dbi six-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ291x200mm
Port 5.8G

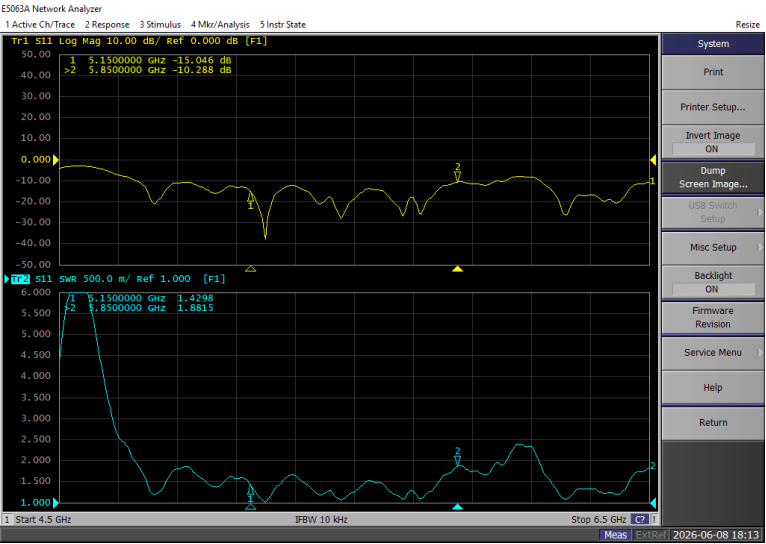

2.4G 5.8G 10dbi six-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ291x200mm


2.2 Total Efficiency & Gain:

Frequency(MHz)

Gain(dBi)

Efficiency(%)

2400

9.8

62.5

2410

9.8

61.4

2420

9.9

61.4

2430

10.0

61.4

2440

9.9

59.9

2450

9.8

58.1

2460

9.6

57.2

2470

9.4

56.4

2480

9.4

56.6

2490

9.4

56.2

2500

9.3

55.0

5150

10.0

58.6

5250

10.1

58.6

5350

10.2

56.5

5450

10.3

61.2

5550

10.6

57.6

5650

11.1

55.6

5750

11.7

59.1

5850

11.8

55.8


2.3 Radiation Pattern
Port1-6 3D 2D-Horizontal 2D-Vertical

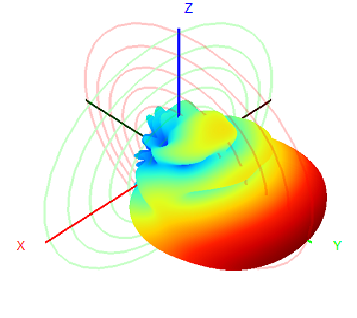

2400MHz 2.4G 5.8G 10dbi six-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ291x200mm 2.4G 5.8G 10dbi six-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ291x200mm 2.4G 5.8G 10dbi six-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ291x200mm

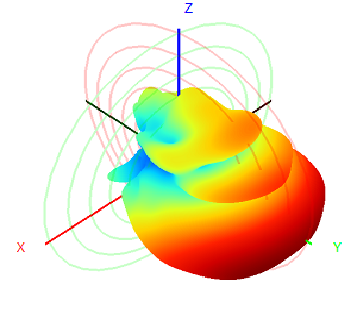

2450MHz 2.4G 5.8G 10dbi six-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ291x200mm 2.4G 5.8G 10dbi six-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ291x200mm 2.4G 5.8G 10dbi six-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ291x200mm

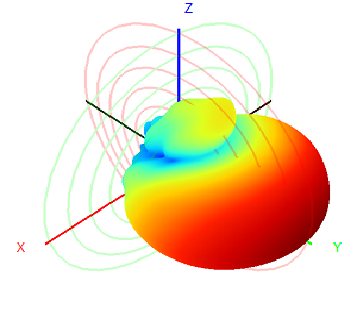

2500MHz 2.4G 5.8G 10dbi six-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ291x200mm 2.4G 5.8G 10dbi six-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ291x200mm 2.4G 5.8G 10dbi six-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ291x200mm


Port 6-12 3D 2D-Horizontal 2D-Vertical

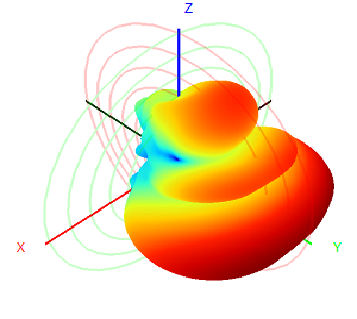

5150MHz 2.4G 5.8G 10dbi six-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ291x200mm 2.4G 5.8G 10dbi six-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ291x200mm 2.4G 5.8G 10dbi six-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ291x200mm

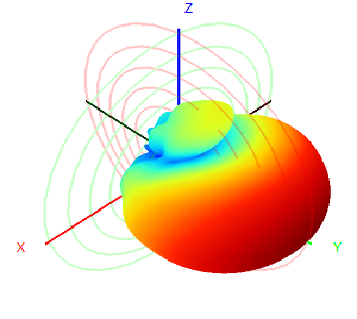

5550MHz 2.4G 5.8G 10dbi six-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ291x200mm 2.4G 5.8G 10dbi six-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ291x200mm 2.4G 5.8G 10dbi six-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ291x200mm
5850MHz 2.4G 5.8G 10dbi six-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ291x200mm 2.4G 5.8G 10dbi six-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ291x200mm 2.4G 5.8G 10dbi six-directional ring array directional antenna - airborne, vehicle-mounted, ground station suppression interference for unmanned aerial vehicles directional antenna φ291x200mm
