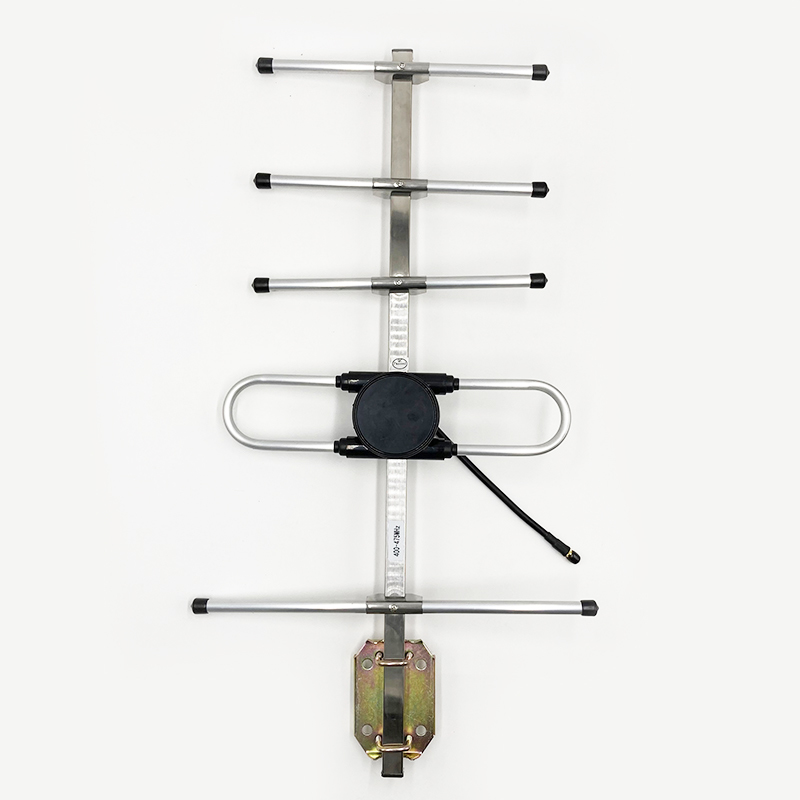

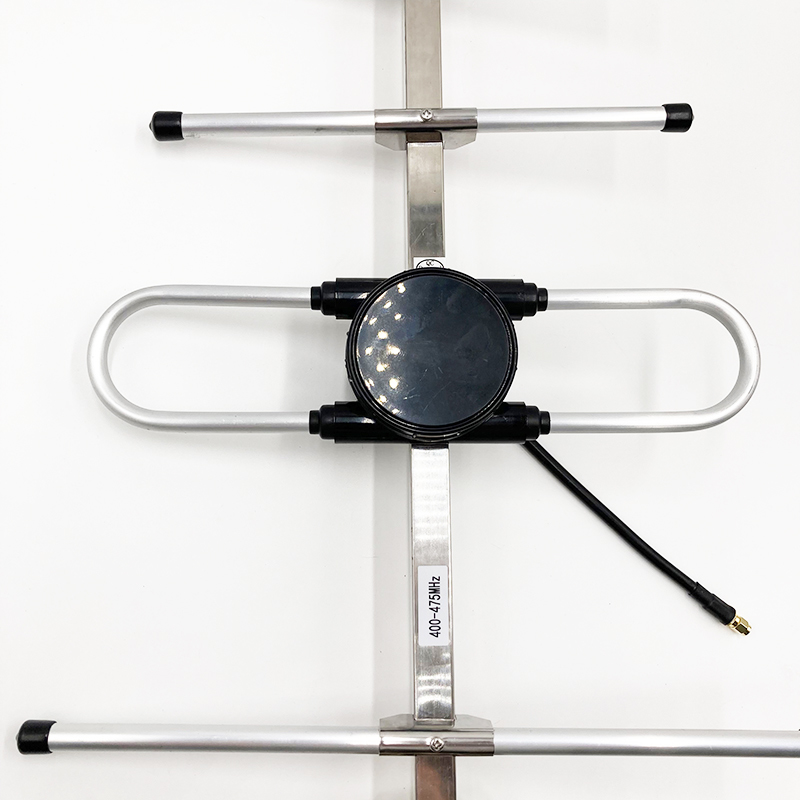

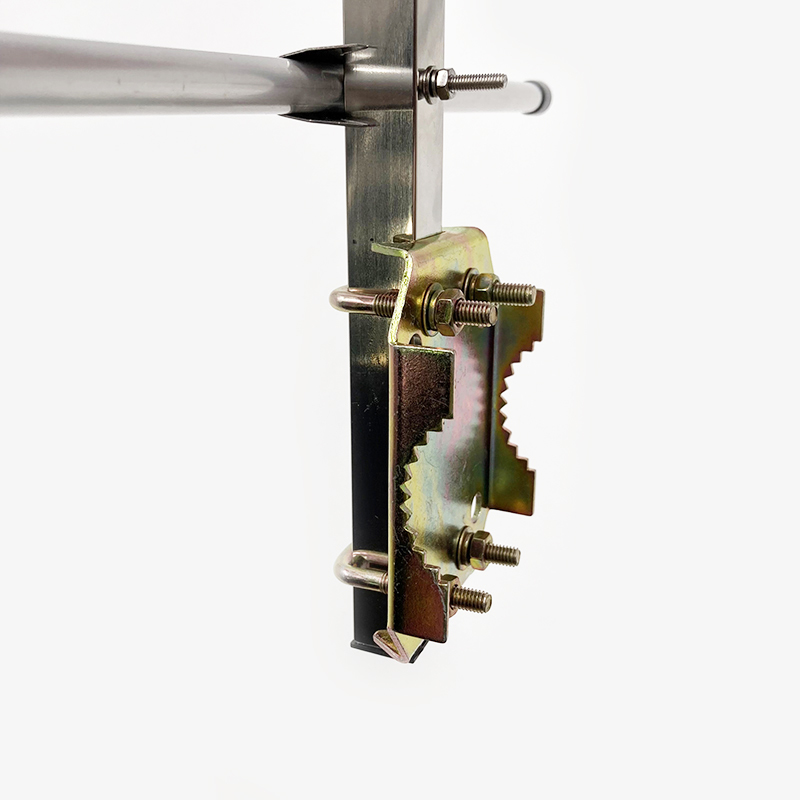

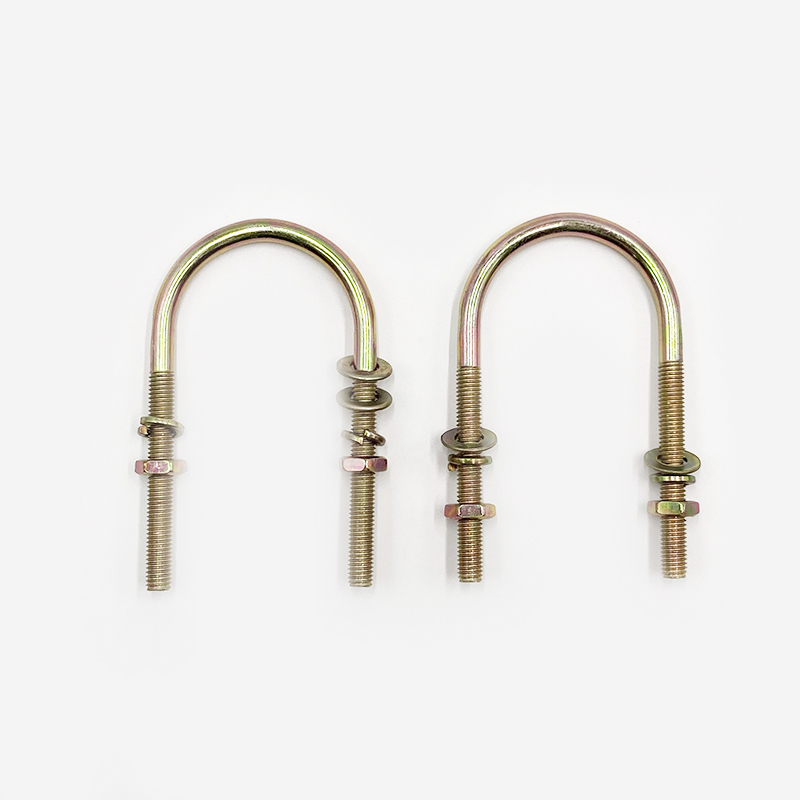

433M400-470MHz 8dBi Log-periodic Directional Antenna
433M400-470MHz 8dBi Log-periodic Directional Antenna
433M400-470MHz 8dBi Log-periodic Directional Antenna
433M400-470MHz 8dBi Log-periodic Directional Antenna
433M400-470MHz 8dBi Log-periodic Directional Antenna
433M400-470MHz 8dBi Log-periodic Directional Antenna
433M400-470MHz 8dBi Log-periodic Directional Antenna
433M400-470MHz 8dBi Log-periodic Directional Antenna
433M400-470MHz 8dBi Log-periodic Directional Antenna
433M400-470MHz 8dBi Log-periodic Directional Antenna
Specifications
Model Number :
LZANT-11288-A
VSWR :
<2.0
Delivery Time :
15 days
Brand Name :
Leenz
Frequency :
400-470MHz
Supply Ability :
500 per day
Payment Terms :
T/T
MOQ :
10
Certification :
RoHs
Peak Gain :
8dBi
Place of Origin :
China
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 400-470MHz
S.W.R. <= 2.0
Antenna Gain 8dBi
Polarization Vertical
Horizontal Beamwidth 33-105°
Vertical Beamwidth 55-65°
F/B >5.6dB
Impedance 50Ohm
Max. Power 150W
B. Material & Mechanical Characteristics

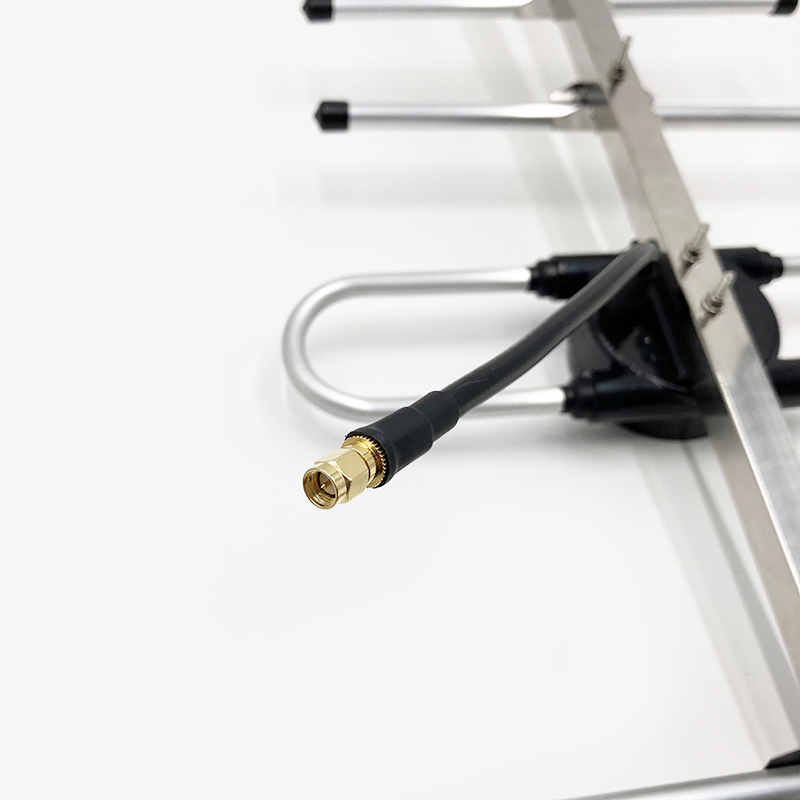

Connector Type SMA-J connector
Dimension 670*360*55mm
Length of L line RG58 25cm
Radome material Aluminum alloy
Weight 0.8Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data

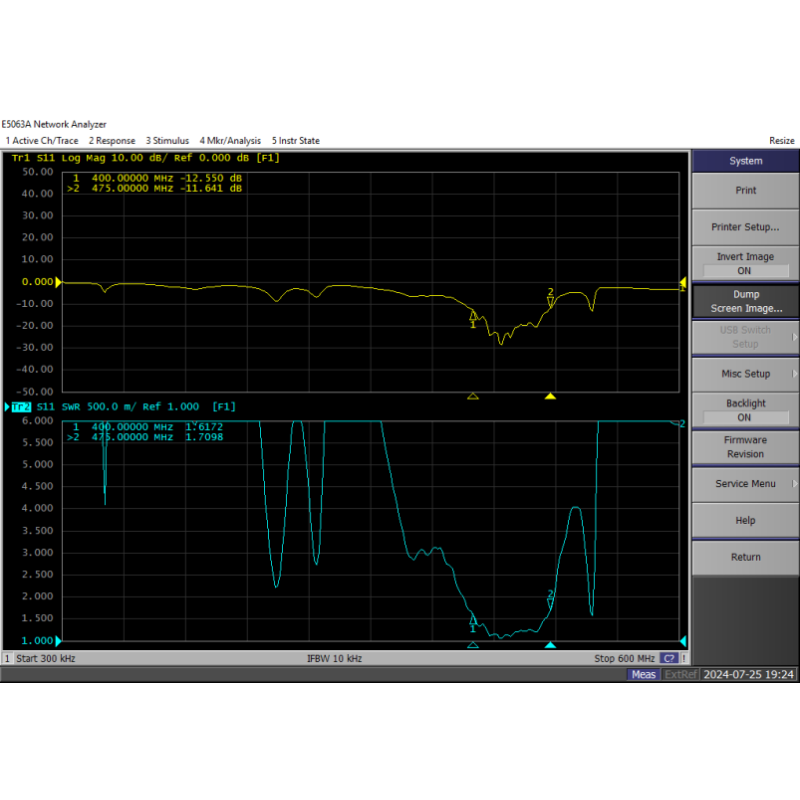

2.1 VSWR

433M400-470MHz 8dBi Log-periodic Directional Antenna




2.2 Total Efficiency & Gain:


Frequency(MHz)

Gain(dBi)

Efficiency(%)

400

7.5

48.0

410

7.8

55.0

420

7.9

58.0

430

7.3

52.4

440

7.2

55.0

450

7.7

61.8

460

8.6

73.1

470

8.9

71.6

475

8.8

67.9

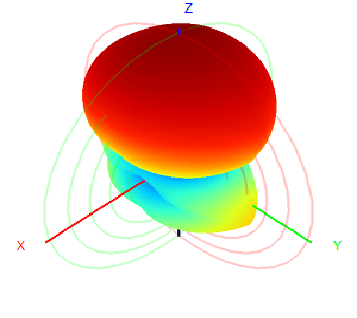

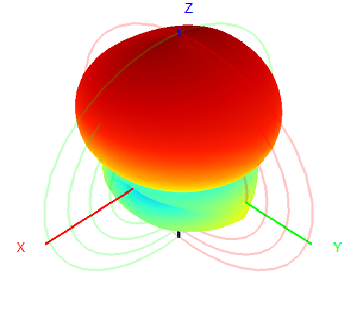

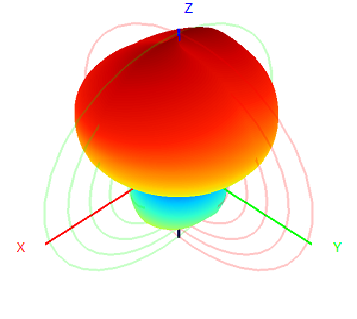

2.3 Radiation Pattern


 3D 2D-Horizontal 2D-Vertical
400MHz 433M400-470MHz 8dBi Log-periodic Directional Antenna 433M400-470MHz 8dBi Log-periodic Directional Antenna 433M400-470MHz 8dBi Log-periodic Directional Antenna
440MHz 433M400-470MHz 8dBi Log-periodic Directional Antenna 433M400-470MHz 8dBi Log-periodic Directional Antenna 433M400-470MHz 8dBi Log-periodic Directional Antenna
470MHz 433M400-470MHz 8dBi Log-periodic Directional Antenna 433M400-470MHz 8dBi Log-periodic Directional Antenna 433M400-470MHz 8dBi Log-periodic Directional Antenna
