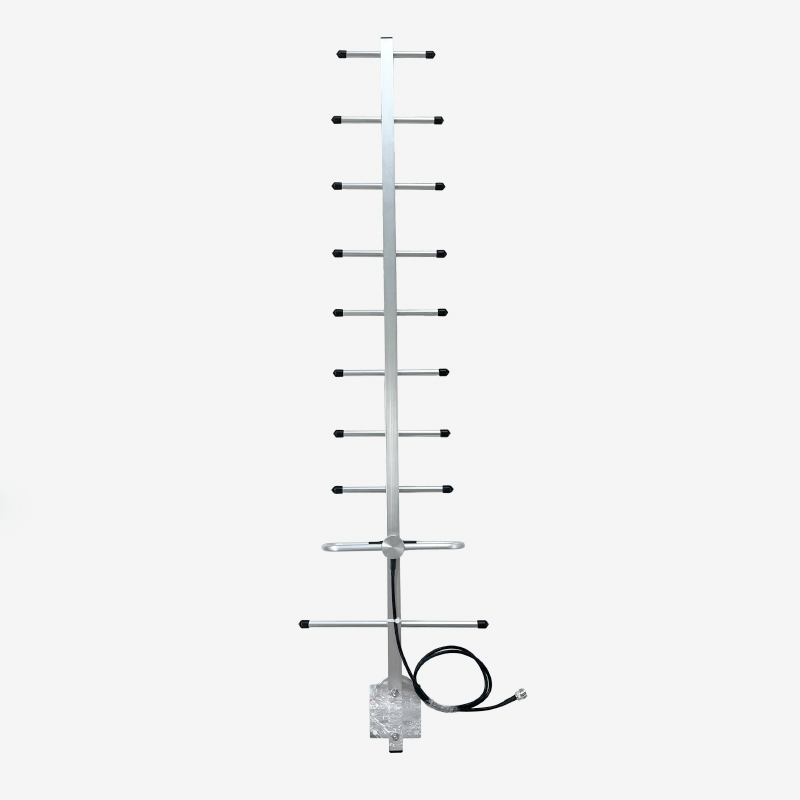

650-680MHz 12dBi Log-periodic Directional Antenna
650-680MHz 12dBi Log-periodic Directional Antenna
Specifications
Model Number :
LZANT-11886-A
Delivery Time :
15 days
Peak Gain :
12dBi
Brand Name :
Leenz
Supply Ability :
500 per day
Impedance :
50
Payment Terms :
T/T
MOQ :
10
Frequency :
650-680MHz
Certification :
RoHs
VSWR :
<2.0
Place of Origin :
China
Description

1. Specification

A. Electrical Characteristics
Frequency 650-680MHz
S.W.R. <= 2.0
Antenna Gain 12dBi
Polarization Vertical
Horizontal Beamwidth 35±10°
Vertical Beamwidth 35±10°
F/B >5.6dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type N-K connector
Dimension 1120*280*60±5mm
Length of L line RG58 1m
Radome material Aluminum alloy
Weight 0.7Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data

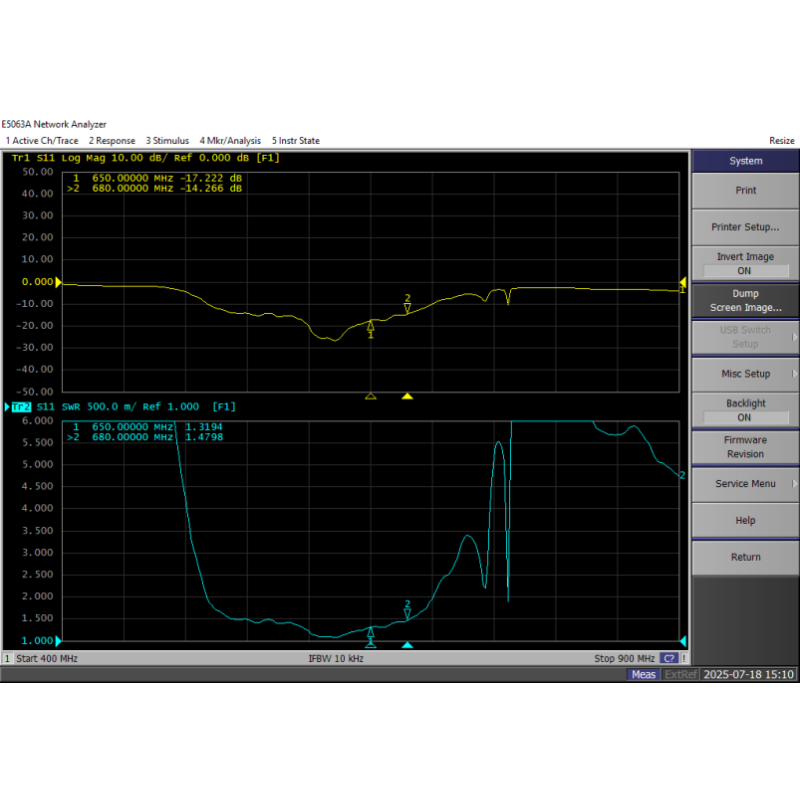

2.1 VSWR

650-680MHz 12dBi Log-periodic Directional Antenna




2.2 Total Efficiency & Gain:


Frequency(MHz)

Gain(dBi)

Efficiency(%)

650

11.2

54.4

655

11.3

55.4

660

11.3

53.1

665

11.5

53.7

670

11.8

56.4

675

11.9

57.2

680

12.3

62.8


2.3 Radiation Pattern


 3D 2D-Horizontal 2D-Vertical

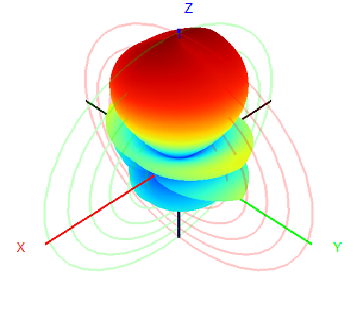

650MHz 650-680MHz 12dBi Log-periodic Directional Antenna 650-680MHz 12dBi Log-periodic Directional Antenna 650-680MHz 12dBi Log-periodic Directional Antenna

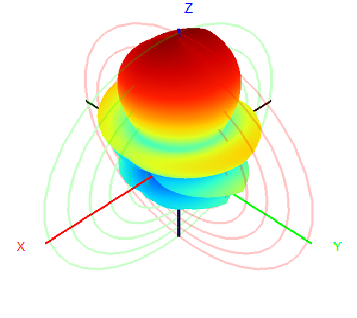

665MHz 650-680MHz 12dBi Log-periodic Directional Antenna 650-680MHz 12dBi Log-periodic Directional Antenna 650-680MHz 12dBi Log-periodic Directional Antenna

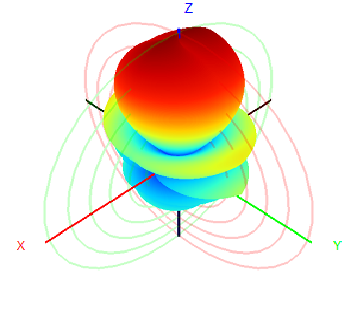

680MHz 650-680MHz 12dBi Log-periodic Directional Antenna 650-680MHz 12dBi Log-periodic Directional Antenna 650-680MHz 12dBi Log-periodic Directional Antenna
