Specifications
Model Number :
LZANT-10591-B
Supply Ability :
500 per day
Impedance :
50
Delivery Time :
15 days
Peak Gain :
12dBi
MOQ :
10
Frequency :
1710-3800MHz
Payment Terms :
T/T
VSWR :
<2.0
Certification :
RoHs
Place of Origin :
China
Brand Name :
Leenz
Description

1. Specification

A. Electrical Characteristics
Frequency 1710-3800MHz
S.W.R. <= 2.0
Antenna Gain 12dBi
Polarization V
Horizontal Beamwidth 65±10°
Vertical Beamwidth 25±5°
F/B >25dB
Impedance 50Ohm
Max. Power 100W
B. Material & Mechanical Characteristics
Connector Type N - K
Dimension

300*160*80mm
Radome material UPVC
Weight 4.2Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data

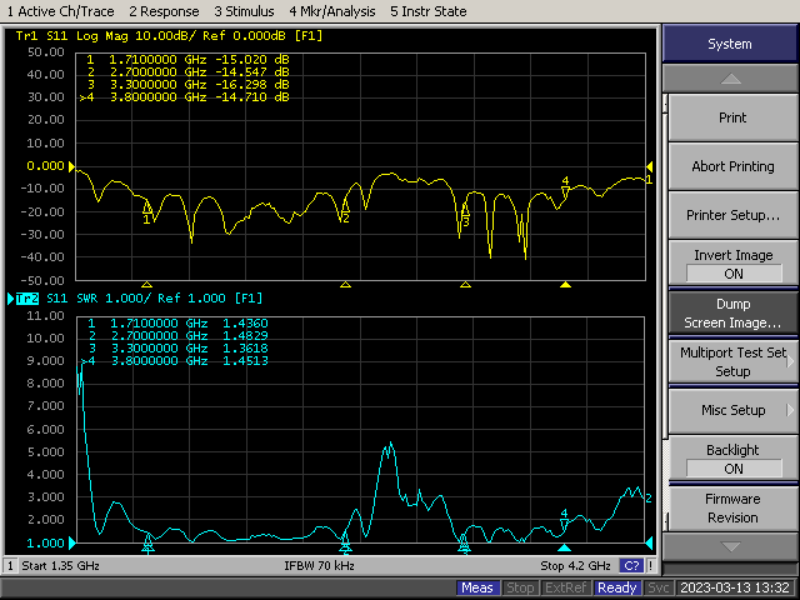

2.1 VSWR
industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 12dBi base station sector plate antenna 300x160x80mm

2.2 Total Efficiency & Gain:

Frequency(MHz)

Gain(dBi)

1700

10.6

1800

10.7

1900

11.0

2000

11.4

2100

12.0

2200

11.9

2300

12.1

2400

12.2

2500

12.6

2600

13.1

2700

12.8

3300

11.6

3350

12.0

3400

11.4

3450

12.4

3500

12.6

3550

12.8

3600

12.3

3650

12.6

3700

12.8

3750

12.5

3800

12.3




2.3 Radiation Pattern

Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical

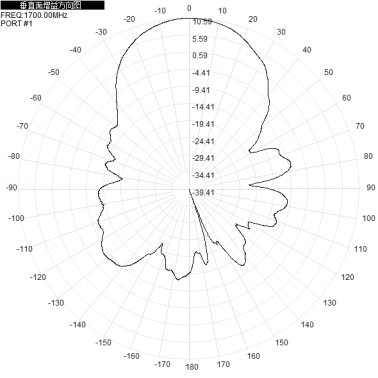

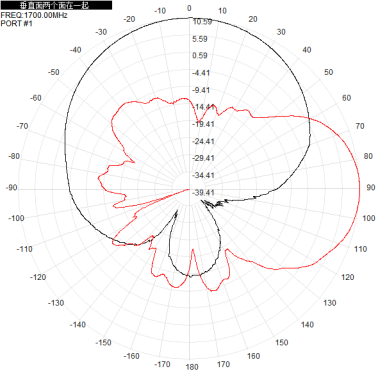

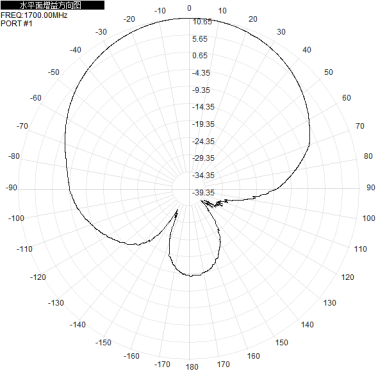

1700MHz industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 12dBi base station sector plate antenna 300x160x80mm industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 12dBi base station sector plate antenna 300x160x80mm industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 12dBi base station sector plate antenna 300x160x80mm

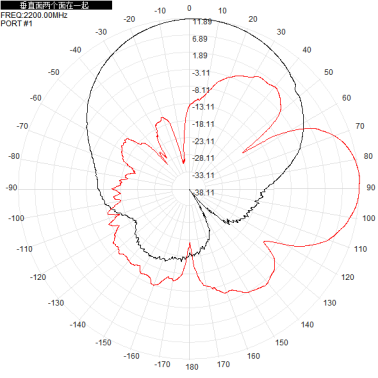

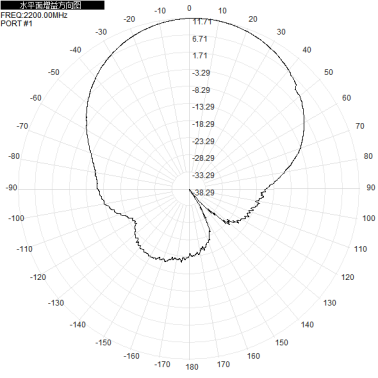

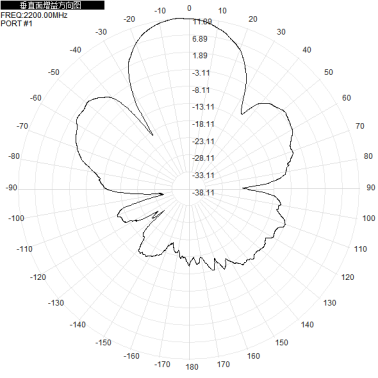

2200MHz industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 12dBi base station sector plate antenna 300x160x80mm industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 12dBi base station sector plate antenna 300x160x80mm industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 12dBi base station sector plate antenna 300x160x80mm

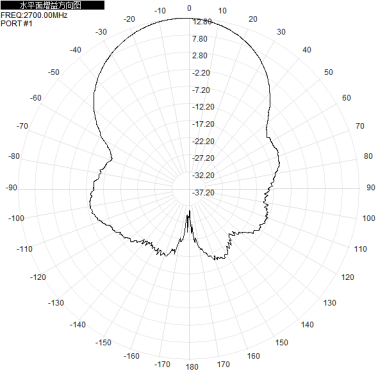

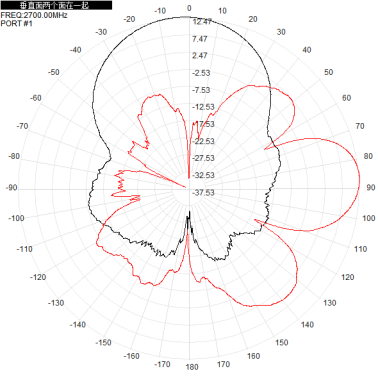

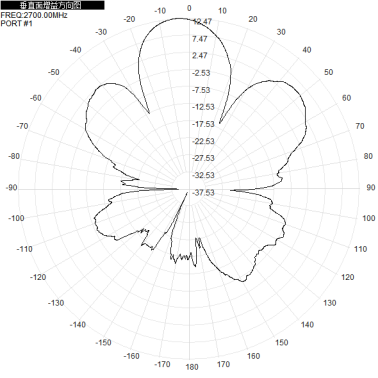

2700MHz industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 12dBi base station sector plate antenna 300x160x80mm industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 12dBi base station sector plate antenna 300x160x80mm industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 12dBi base station sector plate antenna 300x160x80mm

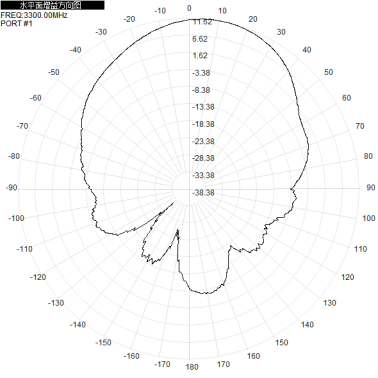

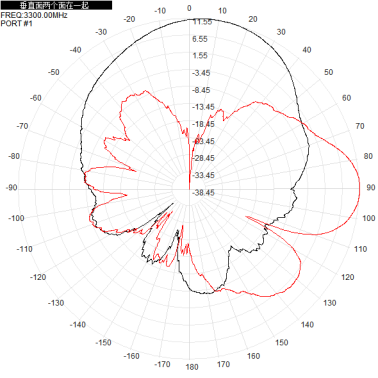

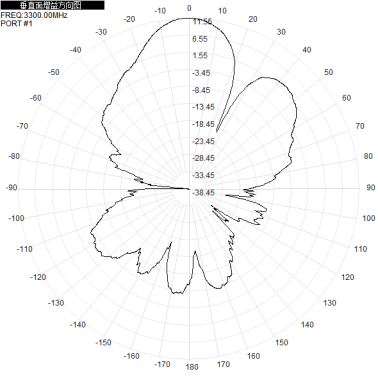

3300MHz industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 12dBi base station sector plate antenna 300x160x80mm industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 12dBi base station sector plate antenna 300x160x80mm industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 12dBi base station sector plate antenna 300x160x80mm

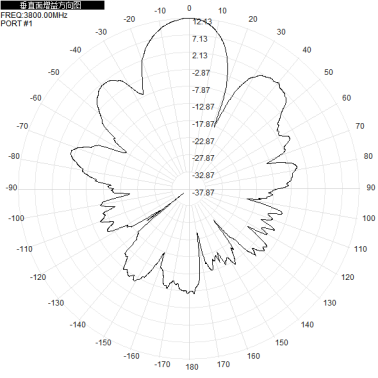

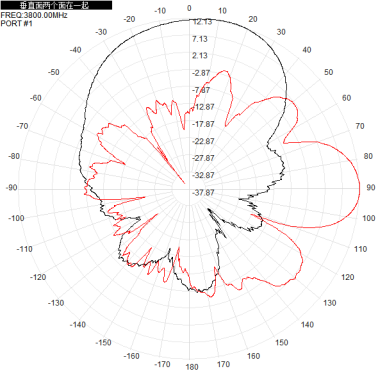

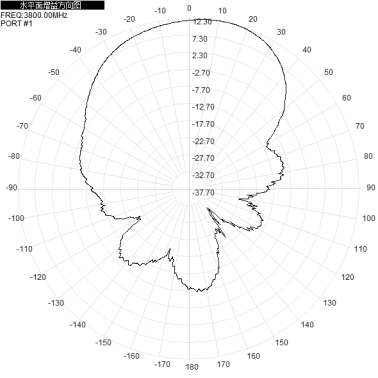

3800MHz industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 12dBi base station sector plate antenna 300x160x80mm industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 12dBi base station sector plate antenna 300x160x80mm industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 12dBi base station sector plate antenna 300x160x80mm
