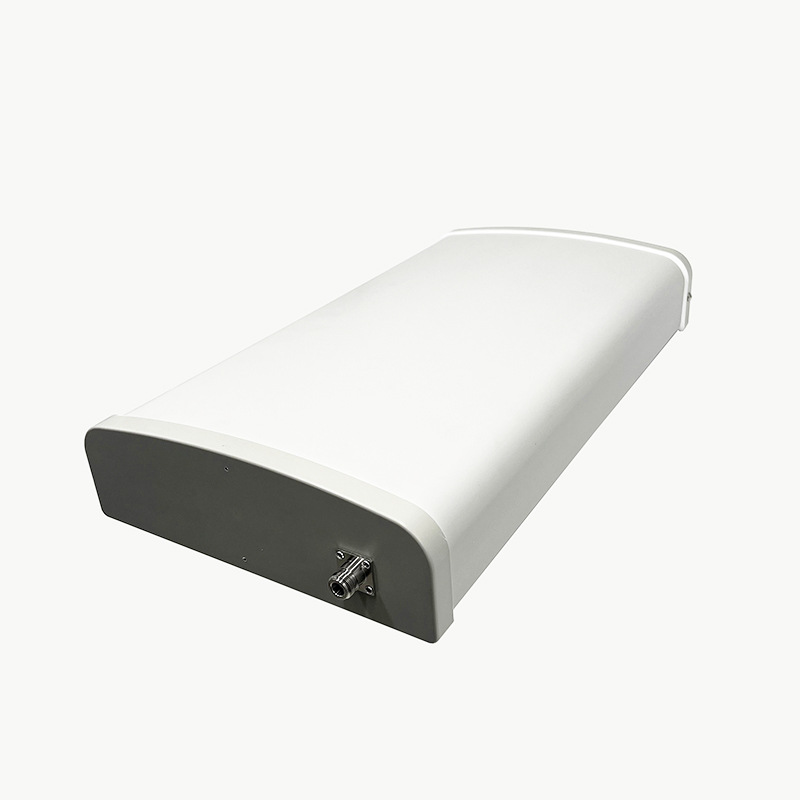

industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 18dBi base station sector plate antenna
industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 18dBi base station sector plate antenna
industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 18dBi base station sector plate antenna
industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 18dBi base station sector plate antenna
industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 18dBi base station sector plate antenna
industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 18dBi base station sector plate antenna
industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 18dBi base station sector plate antenna
industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 18dBi base station sector plate antenna
industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 18dBi base station sector plate antenna
industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 18dBi base station sector plate antenna
Specifications
Model Number :
LZANT-10935-A
Supply Ability :
500 per day
Impedance :
50
Delivery Time :
15 days
Peak Gain :
18dBi
MOQ :
10
Frequency :
1710-3800MHz
Payment Terms :
T/T
VSWR :
<2.0
Certification :
RoHs
Place of Origin :
China
Brand Name :
Leenz
Description

1. Specification

A. Electrical Characteristics
Frequency 1710-3800MHz
S.W.R. <= 2.0
Antenna Gain 18dBi
Polarization V
Horizontal Beamwidth 18-36°
Vertical Beamwidth 9-20°
F/B >25dB
Impedance 50Ohm
Max. Power 100W
B. Material & Mechanical Characteristics
Connector Type N Female connector
Dimension

500-280*80mm
Radome material UPVC
Weight 4.2Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data

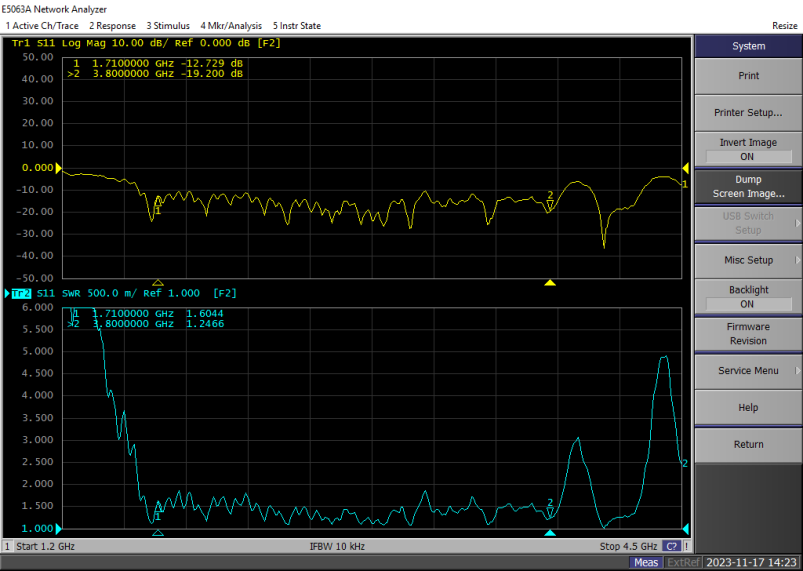

2.1 VSWR
industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 18dBi base station sector plate antenna

2.2 Total Efficiency & Gain:

Frequency(MHz)

Gain(dBi)

1700

16.4

1800

16.3

1900

16.7

2000

16.6

2100

16.9

2200

16.8

2300

16.9

2400

17.0

2500

16.9

2600

17.1

2700

17.3

2800

18.0

2900

18.1

3000

18.2

3100

18.7

3200

20.4

3300

20.6

3400

20.7

3500

20.0

3600

19.5

3700

19.5

3800

20.1




2.3 Radiation Pattern

Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical

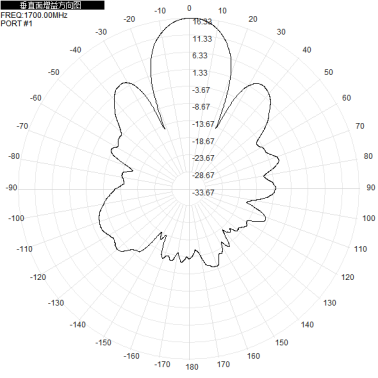

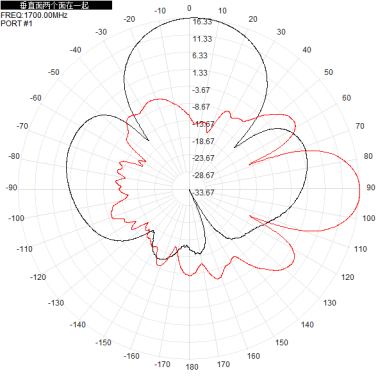

1700MHz industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 18dBi base station sector plate antenna industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 18dBi base station sector plate antenna industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 18dBi base station sector plate antenna

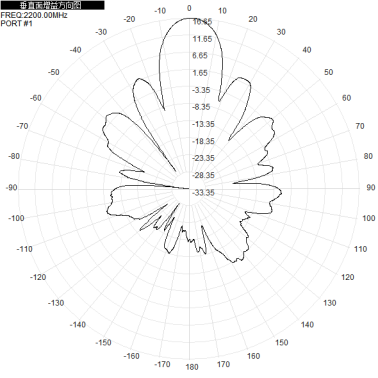

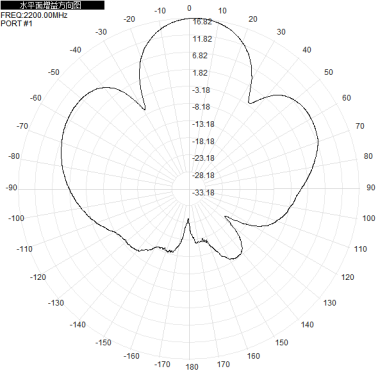

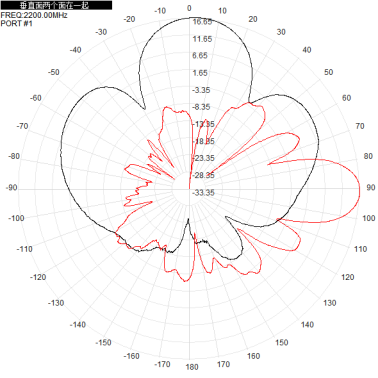

2200MHz industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 18dBi base station sector plate antenna industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 18dBi base station sector plate antenna industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 18dBi base station sector plate antenna

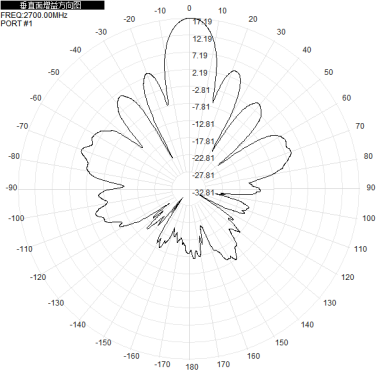

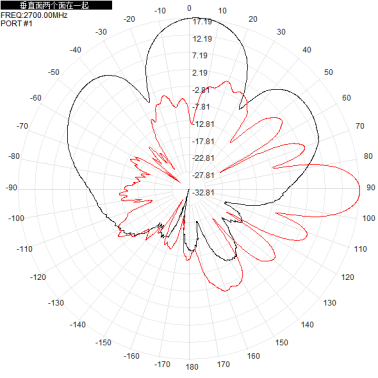

2700MHz industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 18dBi base station sector plate antenna industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 18dBi base station sector plate antenna industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 18dBi base station sector plate antenna

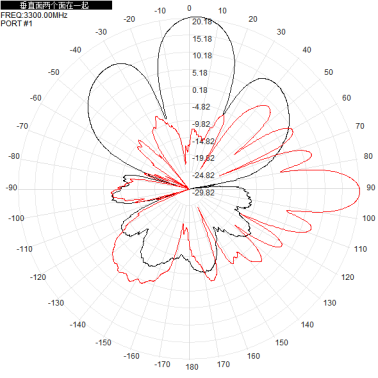

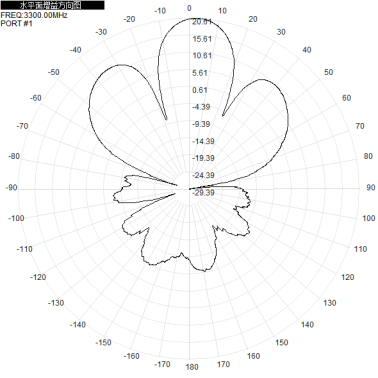

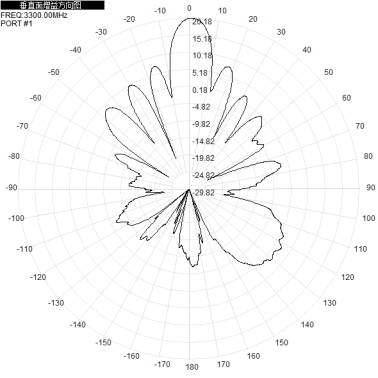

3300MHz industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 18dBi base station sector plate antenna industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 18dBi base station sector plate antenna industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 18dBi base station sector plate antenna

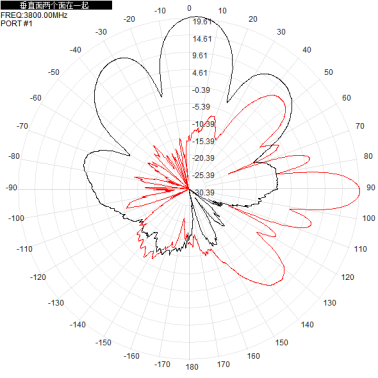

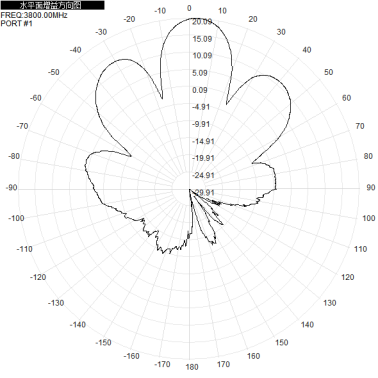

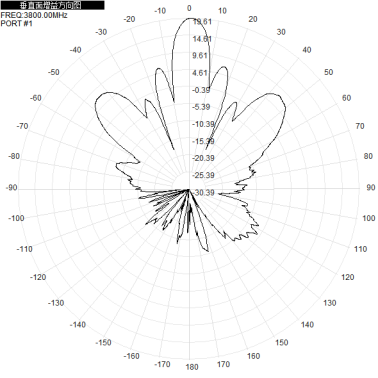

3800MHz industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 18dBi base station sector plate antenna industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 18dBi base station sector plate antenna industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 18dBi base station sector plate antenna
