Specifications
Model Number :
LZANT-10453-A
Supply Ability :
1K per day
Impedance :
50
Delivery Time :
15 days
Peak Gain :
0dBi
MOQ :
10
Frequency :
860-930MHz
Payment Terms :
T/T
VSWR :
<2.6
Brand Name :
Leenz
Certification :
RoHs
Place of Origin :
China
Description

1. Specification

A. Electrical Characteristics
Frequency 860-930MHz
Impedance 50 Ohm
S.W.R. <2.6
Gain 2dBi
Efficiency ≈73%
Polarization Linear
Max Power 10W
B. Material & Mechanical Characteristics
Connector Type RP SMA -J
Dimension Φ13*196mm
Weight 0.02Kg
Antenna material TPEE + PC black
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

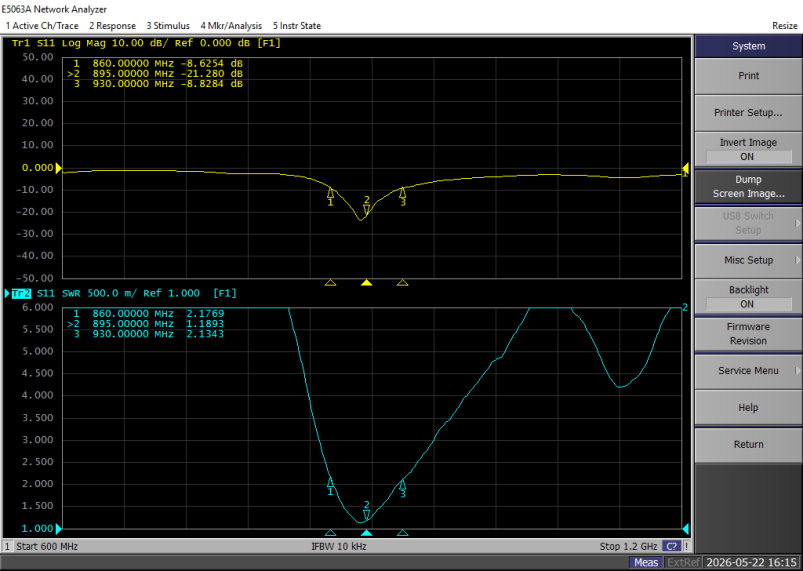

2.1 VSWR

RP SMA-J 860-930M 868M 915M Omnidirectional Foldable Antenna 13x196mm



2.2 Total Efficiency & Gain

Frequency(MHz)

Gain(dBi)

Efficiency(%)

860

1.1

68.0

870

1.7

76.6

880

2.1

84.9

890

1.7

76.3

900

1.9

75.1

910

1.9

73.3

920

1.7

67.0

930

1.5

62.4

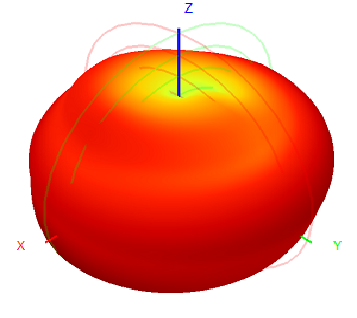

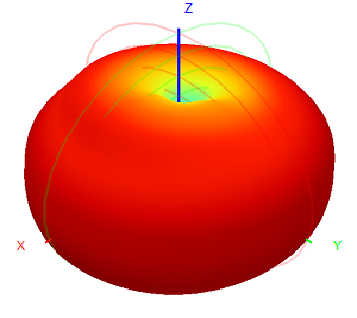

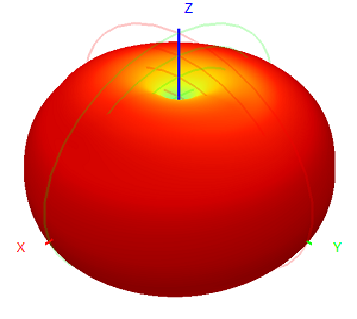

2.2 Radiation Pattern


 3D 2D-Horizontal 2D-Vertical
860MHz RP SMA-J 860-930M 868M 915M Omnidirectional Foldable Antenna 13x196mm RP SMA-J 860-930M 868M 915M Omnidirectional Foldable Antenna 13x196mm RP SMA-J 860-930M 868M 915M Omnidirectional Foldable Antenna 13x196mm
890MHz RP SMA-J 860-930M 868M 915M Omnidirectional Foldable Antenna 13x196mm RP SMA-J 860-930M 868M 915M Omnidirectional Foldable Antenna 13x196mm RP SMA-J 860-930M 868M 915M Omnidirectional Foldable Antenna 13x196mm
930MHz RP SMA-J 860-930M 868M 915M Omnidirectional Foldable Antenna 13x196mm RP SMA-J 860-930M 868M 915M Omnidirectional Foldable Antenna 13x196mm RP SMA-J 860-930M 868M 915M Omnidirectional Foldable Antenna 13x196mm
