Specifications
Model Number :
LZ1738-30D18A
Supply Ability :
500 per day
Impedance :
50
Delivery Time :
15 days
Peak Gain :
18dBi
MOQ :
10
Frequency :
1710-3800MHz
Payment Terms :
T/T
VSWR :
<2.0
Brand Name :
Leenz
Certification :
RoHs
Place of Origin :
China
Description

1. Specification

A. Electrical Characteristics
Frequency 1710-3800MHz
S.W.R. <= 2.0
Antenna Gain 18dBi
Polarization ±45°
Horizontal Beamwidth 30±5°
Vertical Beamwidth 15±3°
F/B >20dB
Impedance 50Ohm
Max. Power 100W
B. Material & Mechanical Characteristics
Connector Type 2*N-K
Dimension

500-280*80mm
Radome material UPVC
Weight 4.5Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data

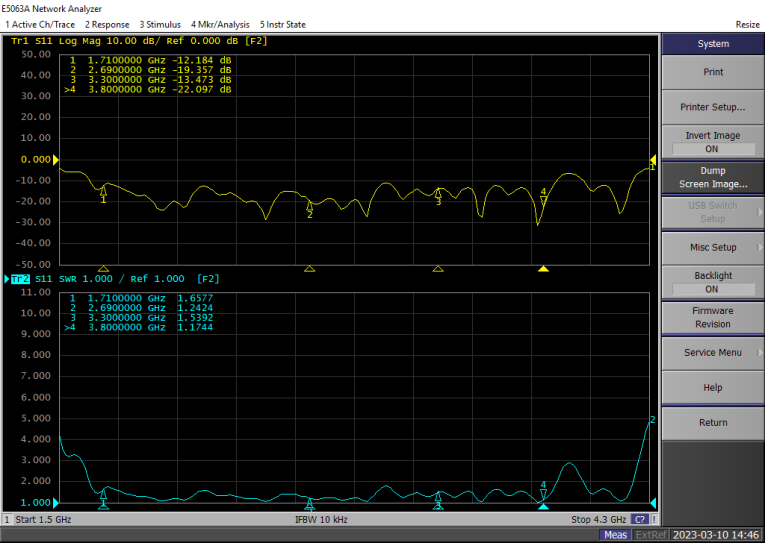

2.1 VSWR
industrial directional antenna 4g 5G 1700-3800M dual-polarization directional antenna 1710-2690M 3300-3800M 18dBi base station sector plate antenna

2.2 Total Efficiency & Gain:

Port 1( +45°)

Port 2( -45°)

Frequency(MHz)

Gain(dBi)

Frequency(MHz)

Gain(dBi)

1700

15.5

1700

15.6

1800

15.8

1800

15.9

1900

16.0

1900

16.2

2000

16.0

2000

16.3

2100

16.7

2100

16.7

2200

17.0

2200

17.0

2300

17.0

2300

17.0

2400

16.7

2400

16.7

2500

16.7

2500

16.7

2600

16.7

2600

16.9

2700

17.0

2700

17.4

3300

17.2

3300

17.1

3350

17.6

3350

17.0

3400

17.8

3400

17.5

3450

17.5

3450

17.6

3500

17.9

3500

17.6

3550

18.2

3550

17.7

3600

18.1

3600

17.6

3650

18.3

3650

18.0

3700

18.8

3700

18.2

3750

18.6

3750

18.0

3800

18.4

3800

18.0




2.3 Radiation Pattern

 2D-Horizontal 2D-Vertical Horizontal & Vertical

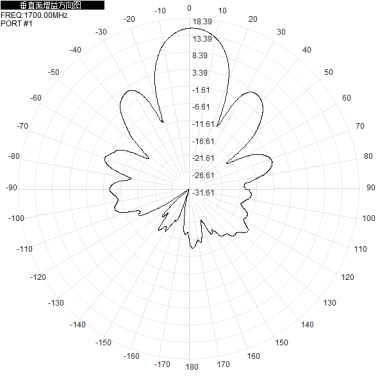

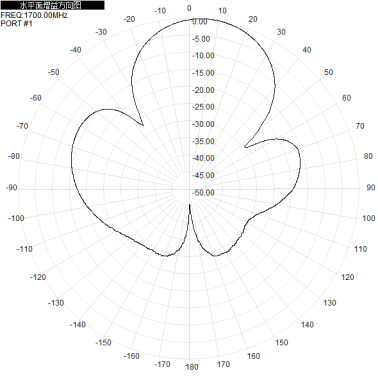

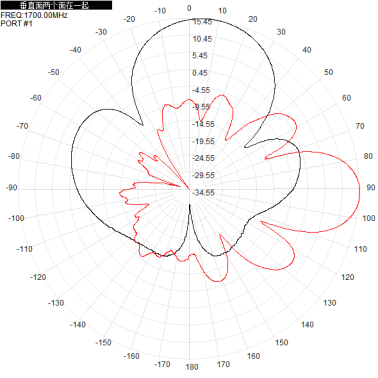

1700MHz industrial directional antenna 4g 5G 1700-3800M dual-polarization directional antenna 1710-2690M 3300-3800M 18dBi base station sector plate antenna industrial directional antenna 4g 5G 1700-3800M dual-polarization directional antenna 1710-2690M 3300-3800M 18dBi base station sector plate antenna industrial directional antenna 4g 5G 1700-3800M dual-polarization directional antenna 1710-2690M 3300-3800M 18dBi base station sector plate antenna

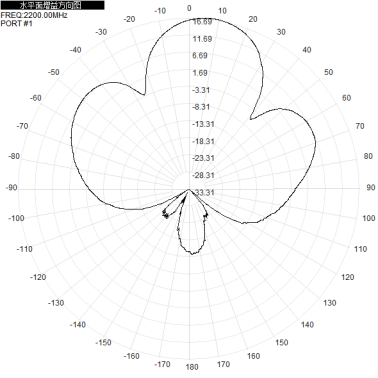

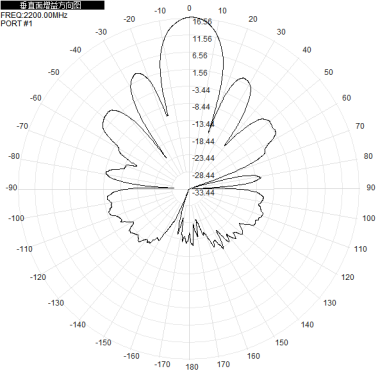

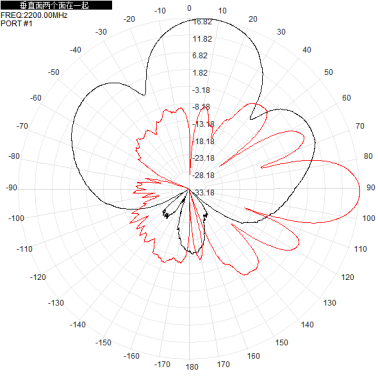

2200MHz industrial directional antenna 4g 5G 1700-3800M dual-polarization directional antenna 1710-2690M 3300-3800M 18dBi base station sector plate antenna industrial directional antenna 4g 5G 1700-3800M dual-polarization directional antenna 1710-2690M 3300-3800M 18dBi base station sector plate antenna industrial directional antenna 4g 5G 1700-3800M dual-polarization directional antenna 1710-2690M 3300-3800M 18dBi base station sector plate antenna

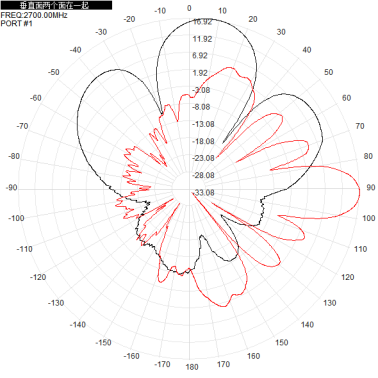

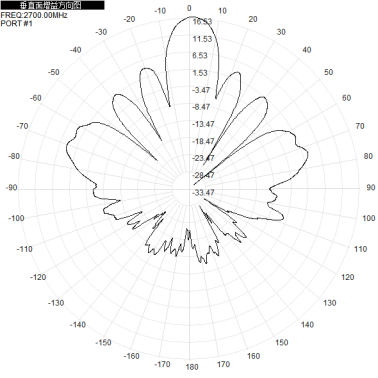

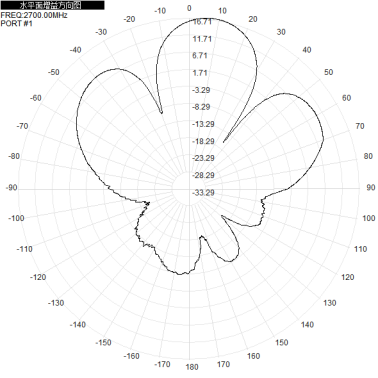

2700MHz industrial directional antenna 4g 5G 1700-3800M dual-polarization directional antenna 1710-2690M 3300-3800M 18dBi base station sector plate antenna industrial directional antenna 4g 5G 1700-3800M dual-polarization directional antenna 1710-2690M 3300-3800M 18dBi base station sector plate antenna industrial directional antenna 4g 5G 1700-3800M dual-polarization directional antenna 1710-2690M 3300-3800M 18dBi base station sector plate antenna

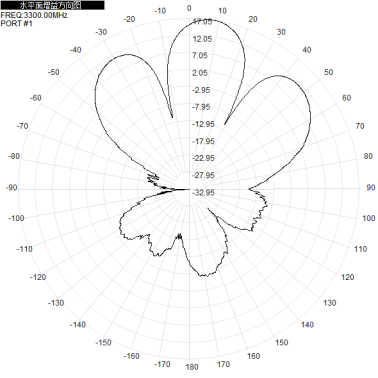

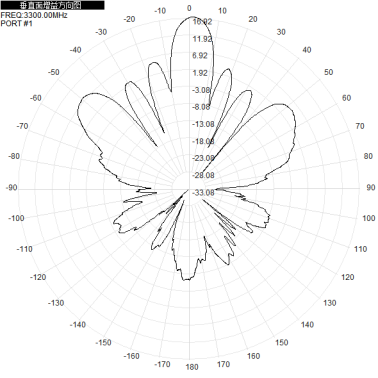

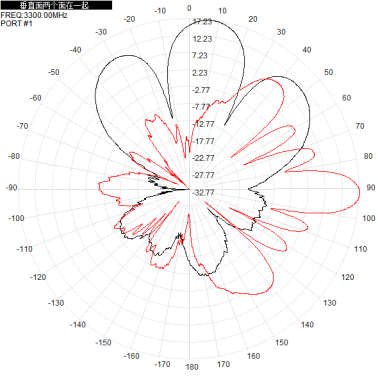

3300MHz industrial directional antenna 4g 5G 1700-3800M dual-polarization directional antenna 1710-2690M 3300-3800M 18dBi base station sector plate antenna industrial directional antenna 4g 5G 1700-3800M dual-polarization directional antenna 1710-2690M 3300-3800M 18dBi base station sector plate antenna industrial directional antenna 4g 5G 1700-3800M dual-polarization directional antenna 1710-2690M 3300-3800M 18dBi base station sector plate antenna

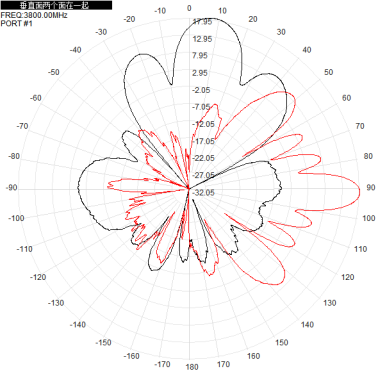

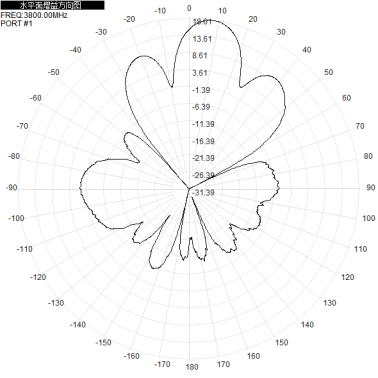

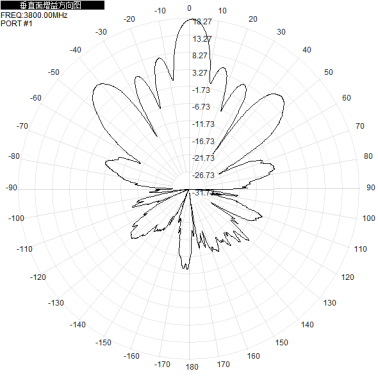

3800MHz industrial directional antenna 4g 5G 1700-3800M dual-polarization directional antenna 1710-2690M 3300-3800M 18dBi base station sector plate antenna industrial directional antenna 4g 5G 1700-3800M dual-polarization directional antenna 1710-2690M 3300-3800M 18dBi base station sector plate antenna industrial directional antenna 4g 5G 1700-3800M dual-polarization directional antenna 1710-2690M 3300-3800M 18dBi base station sector plate antenna
