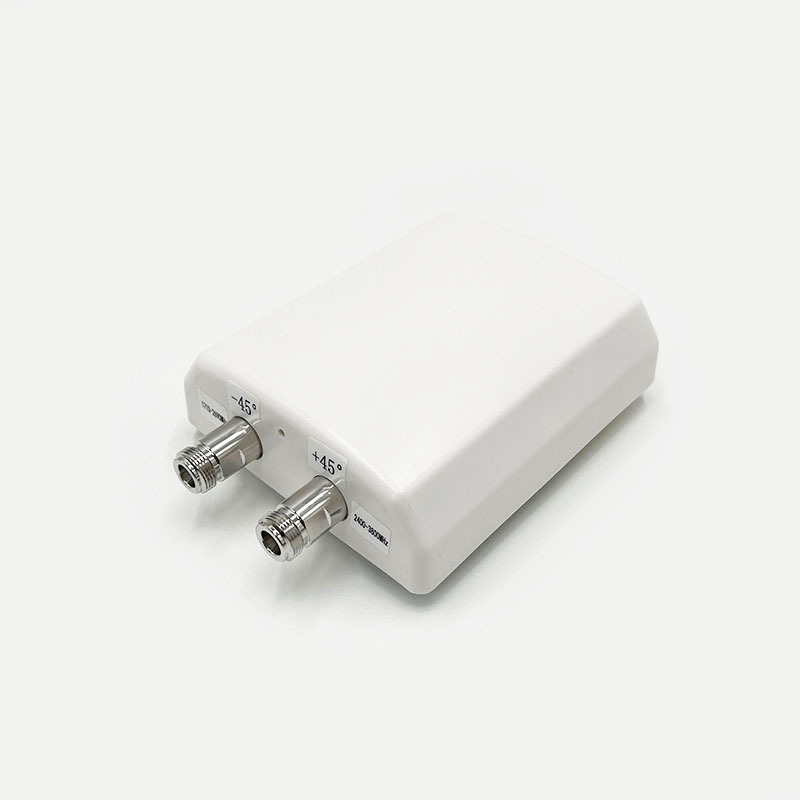

5G 1.7 - 3.8G 1710 - 2690M 2400 - 3800M 8dbi Dual-port Directional Antenna
5G 1.7 - 3.8G 1710 - 2690M 2400 - 3800M 8dbi Dual-port Directional Antenna
5G 1.7 - 3.8G 1710 - 2690M 2400 - 3800M 8dbi Dual-port Directional Antenna
5G 1.7 - 3.8G 1710 - 2690M 2400 - 3800M 8dbi Dual-port Directional Antenna
5G 1.7 - 3.8G 1710 - 2690M 2400 - 3800M 8dbi Dual-port Directional Antenna
5G 1.7 - 3.8G 1710 - 2690M 2400 - 3800M 8dbi Dual-port Directional Antenna
5G 1.7 - 3.8G 1710 - 2690M 2400 - 3800M 8dbi Dual-port Directional Antenna
5G 1.7 - 3.8G 1710 - 2690M 2400 - 3800M 8dbi Dual-port Directional Antenna
5G 1.7 - 3.8G 1710 - 2690M 2400 - 3800M 8dbi Dual-port Directional Antenna
5G 1.7 - 3.8G 1710 - 2690M 2400 - 3800M 8dbi Dual-port Directional Antenna
Specifications
Model Number :
LZANT-11462-A
Supply Ability :
500per day
Impedance :
50
Delivery Time :
15 days
Peak Gain :
8dBi
MOQ :
10
Frequency :
1710-2690/2400-3800MHz
VSWR :
<2.0
Payment Terms :
T/T
Certification :
RoHs
Place of Origin :
China
Brand Name :
Leenz
Description

1. Specification

A. Electrical Characteristics
Frequency 1710-2690/2400-3800MMHz
S.W.R. <= 2.0
Antenna Gain 8dBi
Polarization -45°/+45°
Horizontal Beamwidth 70/65
Vertical Beamwidth 60/55
F/B >20dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type 2*N Female connector
Dimension 140*120*40mm
Radome material ABS
Weight 0.45Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data

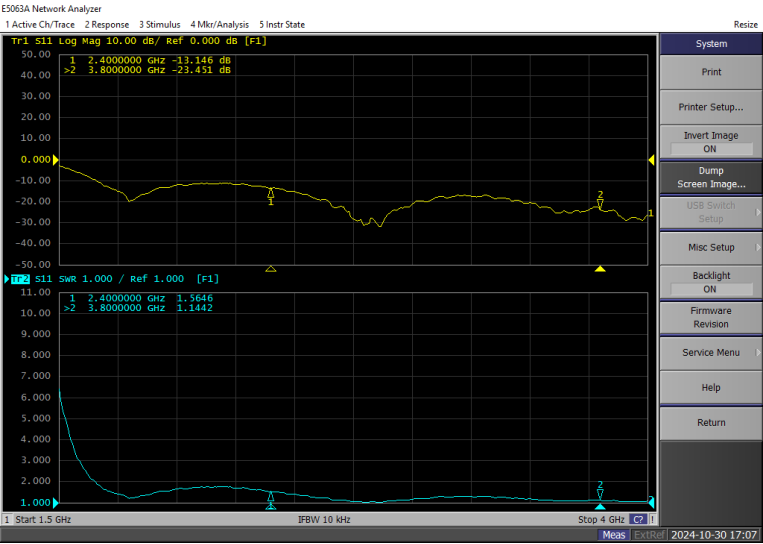

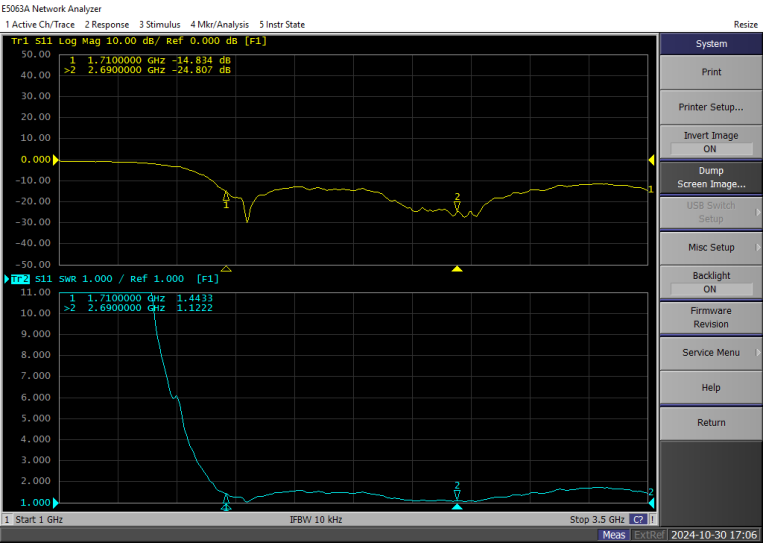

2.1 VSWR
5G 1.7 - 3.8G 1710 - 2690M 2400 - 3800M 8dbi Dual-port Directional Antenna
5G 1.7 - 3.8G 1710 - 2690M 2400 - 3800M 8dbi Dual-port Directional Antenna


2.2 Total Efficiency & Gain:


Port 1

Port 2

Frequency(MHz)

Gain(dBi)

Frequency(MHz)

Gain(dBi)

1710

7.1

2400

8.0

1800

6.4

2500

8.1

1900

7.6

2600

8.4

2000

7.4

2700

8.4

2100

7.5

2800

8.5

2200

7.6

2900

8.2

2300

7.5

3000

8.3

2400

7.9

3100

8.4

2500

8.2

3200

8.6

2600

8.1

3300

8.7

2690

8.1

3400

8.9

3500

9.1

3600

9.4

3700

10.2

3800

11.4

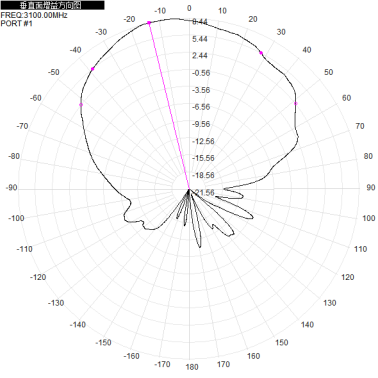

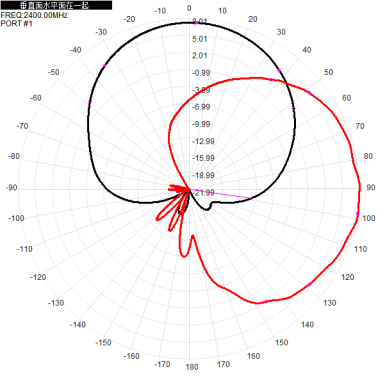

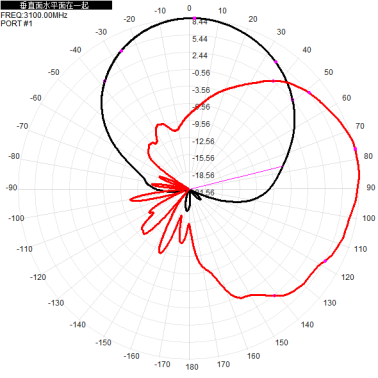

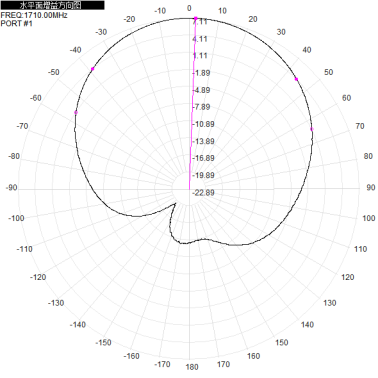

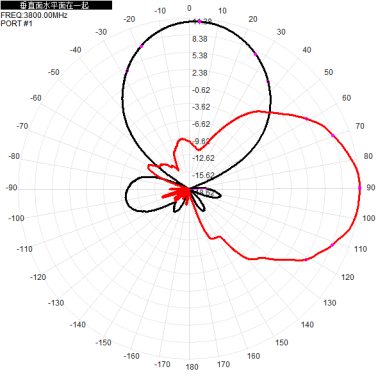

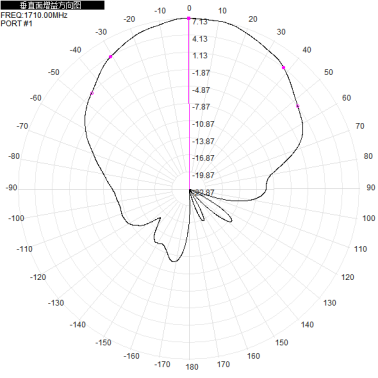

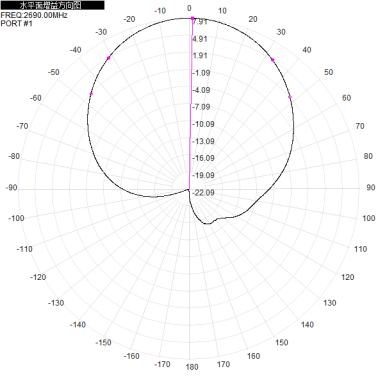

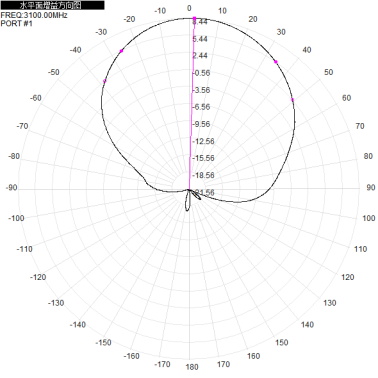

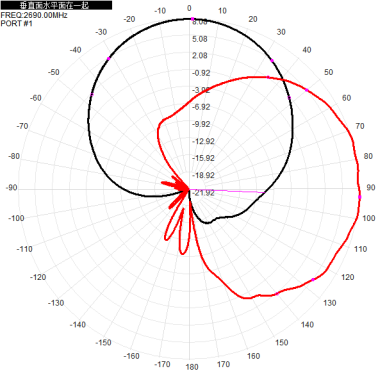

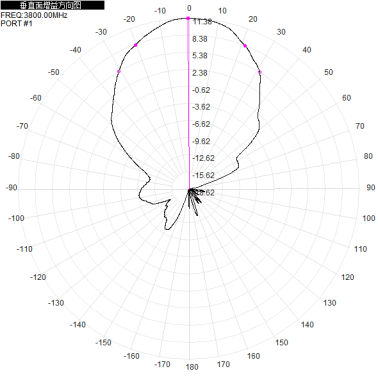

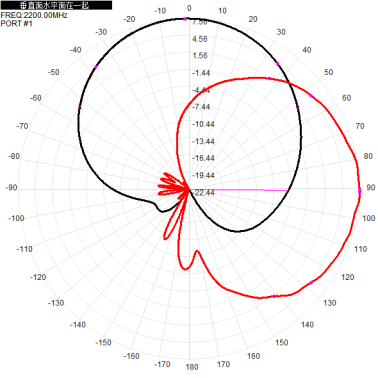

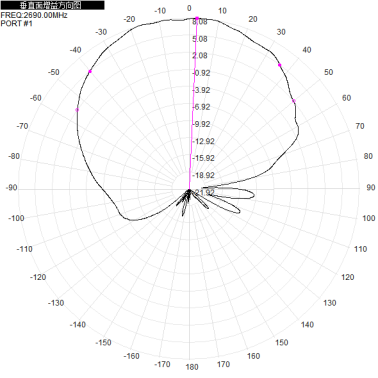

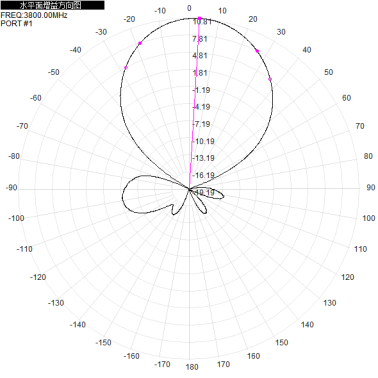

2.3 Radiation Pattern

Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical

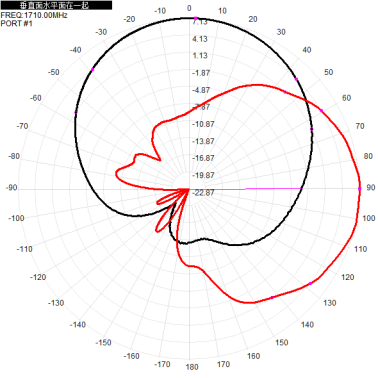

1710MHz 5G 1.7 - 3.8G 1710 - 2690M 2400 - 3800M 8dbi Dual-port Directional Antenna 5G 1.7 - 3.8G 1710 - 2690M 2400 - 3800M 8dbi Dual-port Directional Antenna 5G 1.7 - 3.8G 1710 - 2690M 2400 - 3800M 8dbi Dual-port Directional Antenna

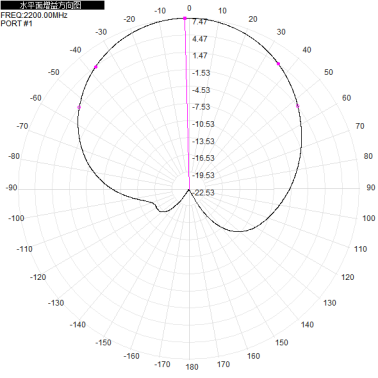

2200MHz 5G 1.7 - 3.8G 1710 - 2690M 2400 - 3800M 8dbi Dual-port Directional Antenna 5G 1.7 - 3.8G 1710 - 2690M 2400 - 3800M 8dbi Dual-port Directional Antenna 5G 1.7 - 3.8G 1710 - 2690M 2400 - 3800M 8dbi Dual-port Directional Antenna
2690M 5G 1.7 - 3.8G 1710 - 2690M 2400 - 3800M 8dbi Dual-port Directional Antenna 5G 1.7 - 3.8G 1710 - 2690M 2400 - 3800M 8dbi Dual-port Directional Antenna 5G 1.7 - 3.8G 1710 - 2690M 2400 - 3800M 8dbi Dual-port Directional Antenna
Port2 2D-Horizontal 2D-Vertical Horizontal & Vertical
2400MHz 5G 1.7 - 3.8G 1710 - 2690M 2400 - 3800M 8dbi Dual-port Directional Antenna 5G 1.7 - 3.8G 1710 - 2690M 2400 - 3800M 8dbi Dual-port Directional Antenna 5G 1.7 - 3.8G 1710 - 2690M 2400 - 3800M 8dbi Dual-port Directional Antenna
3100MHz 5G 1.7 - 3.8G 1710 - 2690M 2400 - 3800M 8dbi Dual-port Directional Antenna 5G 1.7 - 3.8G 1710 - 2690M 2400 - 3800M 8dbi Dual-port Directional Antenna 5G 1.7 - 3.8G 1710 - 2690M 2400 - 3800M 8dbi Dual-port Directional Antenna
3800MHz 5G 1.7 - 3.8G 1710 - 2690M 2400 - 3800M 8dbi Dual-port Directional Antenna 5G 1.7 - 3.8G 1710 - 2690M 2400 - 3800M 8dbi Dual-port Directional Antenna 5G 1.7 - 3.8G 1710 - 2690M 2400 - 3800M 8dbi Dual-port Directional Antenna
