1R1G1B Outdoor Fixed LED Number Display IP65 P4 With S - Video VGA DVI Input
1R1G1B Outdoor Fixed LED Number Display IP65 P4 With S - Video VGA DVI Input
1R1G1B Outdoor Fixed LED Number Display IP65 P4 With S - Video VGA DVI Input
1R1G1B Outdoor Fixed LED Number Display IP65 P4 With S - Video VGA DVI Input
Specifications
Brand Name :
Shenzhen LED World
Model Number :
LW-FO 20
Certification :
CE,RoHS,FCC,CCC
Place of Origin :
China
MOQ :
1 square meter
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5,000 square meters per month
Delivery Time :
10~20 days after receiving the deposit
Packaging Details :
Carton/Plywood case etc.
LED chip :
Taiwan/Silan/Cree/Cree Cotco
Pixel composition :
2Red, 1Green, 1Blue
Control method :
Controlled by PC, synchronous display
Weight :
70Kg /sqm
Peak power consumption :
800W/sqm
Video Frame Rate :
≥ 150 fps
Soft Rubber Mask :
To protect player and LED display itself
Viewing angle :
Horizontal ≥ 120° , Vertical : ≥ 45°
Screen dimension :
Customized Size
Display function :
Video,Animation,Graphics
Description


Professional IP65 Outdoor Fixed LED Number Display P4 With S-Video VGA DVI Input

Quick detail:

  • Improved Picture Quality Clarity;
  • Refresh rate ranging from 1920HZ to 3840HZ, no ghost;
  • High contrast, high refresh rate make the image without any delay, trailing smear;
  • Other available LED lamp option: Nationstar, San’an. Available IC: Sunmoon;
  • Synchronously adjust the brightness and color to make the true and exquisite image;
  • Using Kinglight LED lamp and Macroblock 5124 IC;
  • Wide color range, excellent color uniformity;


Product parameters:

P4 outdoor fixed led display
Module Parameter
Pixel pitch 4mm
Pixel Density 62500 pixels/sqm.
LED type SMD1921 black
Pixel combination 1R1G1B
Module size 320x160mm
Module resolution 80x40 pixels
Driving mode 1/10 scan
Panel Parameter
Number of modules 2W*4H
Panel size 640x640mm
Panel resolution 160x160
Maintain way Rear
IP Rating IP65
Flatness ≤0.1mm
Cabinet material Die-cast aluminium or Iron
General Parameter
Viewing distance ≥5M
Brightness ≥6500CD/sqm.
Viewing angle 120°/120°
Weight 40kg/sqm.
Max Power consumption 900W/sqm.
Aver Power consumption 360W/sqm.
Frame frequency ≥60HZ
Refresh frequency ≥1920HZ
Working Temperature -30ºC~50ºC
Working Voltage AC90~260V±20%,50-60HZ
Grey scale/color 16384x16384x16384
Brightness adjustment 0-255
MTBF 5000 hours
Life 100000 hours
Malfunction dot rate <0.0001
Control distance Ethernet cable≤100m, Single mode fiber optic ≤500m, Multimode fiber optic ≤15km
Control system
Control system Novastar / Linsn / Colorlight ( Optional )
Input signal DVI / HDMI / SDI / VGA / S-video / Composite
Video processor VDWALL / RGBlingk / Novastar ( Optional )
Audio system
Audio system BOSE / JBL / PAL / Customized ( Optional )
Installation Fixed installation / Rental installation ( Optional )
Hanging bar Optional
Certification CE / RoHS / ETL / CCC / FCC / BS476
Packing Type Plywood case / Flight case ( Optional )
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.


FQA:

1. What is a pixel?
The minimum luminous pixel LED display, with ordinary computer monitor, said the "pixel" the same meaning;
2. How to deal with the faulty?
Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%;Secondly, during the guarantee period, we will send new module with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
3. How many workers do you have now?
We have 200 employees.
4. Can you offer a technical support ? Since it s my first time.... ?
We provide free training for our customer, teach client how to set up screens, make configuration of parameters, broadcast the videos through Nova star or Linsn control systems, configure of video processor of LVP605s,LED-550DS.
5. Can I use my own forwarder to transport the products for me?
Yes, if you have your own forwarder in Guangzhou, you canletyour forwardership the products for you. And then you will no need to pay the freight to us;

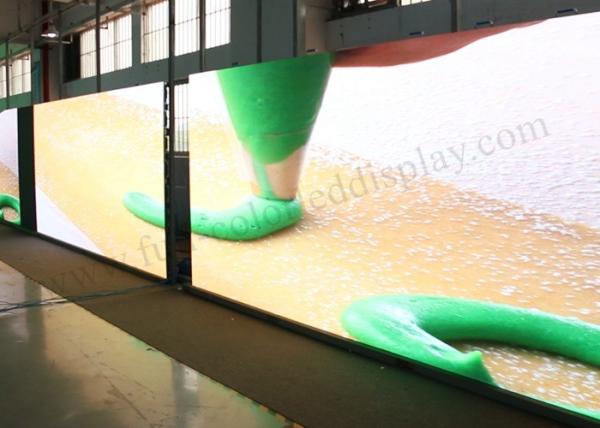

Product case:
1R1G1B Outdoor Fixed LED Number Display IP65 P4 With S - Video VGA DVI Input
