Specifications
Brand Name :
Shenzhen LED World
Model Number :
LW-RI 8
Certification :
CE,RoHS,FCC,CCC
Place of Origin :
China
MOQ :
1 square meter
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
2000 sqm/month
Delivery Time :
15~20 working days after deposit received
Packaging Details :
Carton/Plywood case/Flight case etc.
Module size :
256x128 mm or 320x160mm
Cabinet size (mm) :
512x512mm or 640x640mm
Cabinet material :
Die-casting Aluminium
Pixel density(dot/m2) :
15625
Brightness (nits) :
≥1200
Drive Method :
1/4
Screen work Voltage (V) :
110~240V/AC
Screen View angle :
140°/140°
Standard Certification :
CE CCC
IP Grade :
IP40
Description

outdoor rental 640x640mm-P5,P8,P10.pdf

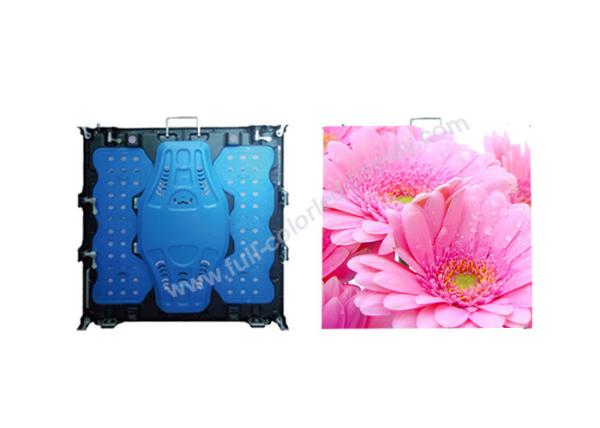

Customized Design P8 Indoor LED Video Wall Rental With Wide Viewing Angle

P8 Indoor Rental LED Wall Display features:

  1. No any glare or water wave for live video;
  2. LED rental screen cabinets , easy and convenient to install, low cost of installation; low -Consumptioncabinet ,save operating costs and reduce labor costs;
  3. Good uniformity and color reducibility made the products top quality;
  4. Reliable quality, advanced and mature technology, compliant with industrial standards and technology developing trend;
  5. OEM cabinet size: cabinet size is adjustable and compatible with different pixels;
  6. It's especially suitable for rental hang-up display and fast installation systemuse;

P8 Indoor Rental LED Wall Display advantage:

  1. We are led screen manufacturer for many years, quality is guaranteed;
  2. The new structure design enables diversified installation to meet the hanging-up and stacking requirements, can be applied to achieve a variety of different occasions to meet various application requirements;
  3. High Contrast ratio: 4000: 1;
  4. 7/24 hours customer support;
  5. Vividandbrilliantcolor,sharpandsmoothimages;
  6. Equips professional video processor, which supports signal formats like AV, DP, VGA, DVI, YPBPR, HDMI, SDI etc;

P8 Indoor Rental LED Wall Display Parameters:

Lamps parameter:

No. Parameter Value
led type brightness Wave Length H/V Visual angle
1 Red LED SMD3528 120-140 MCD 620-625nm 140°/120°
2 Green LED SMD3528 360-435 MCD 520-525nm 140°/120°
3 Blue LED SMD3528 80- 100 MCD 470-475nm 140°/120°

LED module parameter:

Pixel Pitch 8mm
Module size 256x128 mm
320x160mm
Module resolution 64 x 32 dots
40 x 20 dots

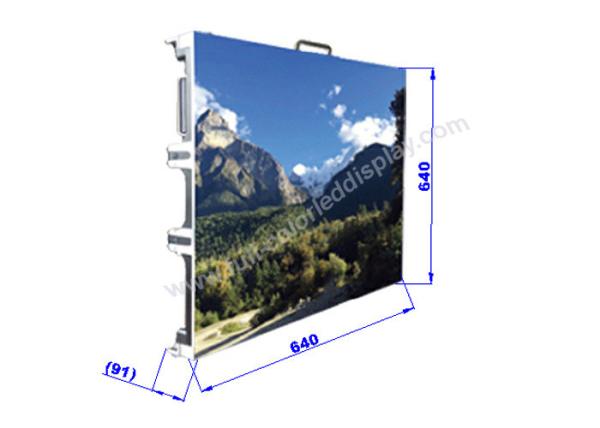

LED cabinet parameter:

Cabinet size (mm) 512x512mm
640x640mm
Cabinet material Die-casting Aluminium
Cabinet weight 8kg/cabinet

Electricity parameter:

Pixel density(dot/m2) 15625
Brightness (nits) ≥1200
Drive Method 1/4
Refresh rate (HZ) ≥1200
Screen work Voltage (V) 110~240V/AC
Screen power consumption (W/sqm) Max 450 / Average 150
Screen View angle 140°/140°
IP Grade IP40
Operationg Temperature/Humidity -20~50ºC
10~90% RH
Storage Temperature/Humidity -40~60ºC
10~90% RH
Life Time >50000H
Standard Certification CE CCC

Our service:

  1. When the warranty expires. we continue to provide maintenance service for whole life of the equipment with relative service/material cost paid;
  2. Quick response: Within 24 hours, we will provide solutions to your questions, inquiries;
  3. Repairing tenet: timely response, solve as soon as possible, ensure the using;

P8 Indoor Rental LED Wall Display Project case:

Customized Design P8 Indoor LED Video Wall Rental With Wide Viewing Angle
