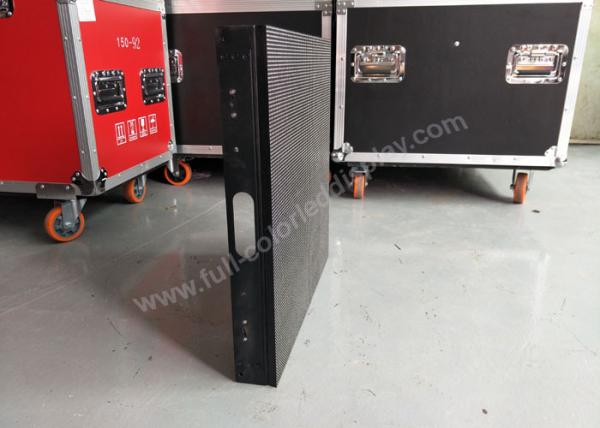

P3.91 Indoor Rental LED Display with Magnet 500x500 cabinet for front service
P3.91 Indoor Rental LED Display features:
- The same size cabinet can be compatible with different specification displays of different DOT pixels. (P3.9, P4.8, P5.68, P6.25);
- Die Casting Aluminum Cabinet LED Display screen"
- Only 12 KG for 500*1000mm LED panel and only about 7KG for 500*500mm panel;
- The screen could be hung up for different kinds of event.And it also could be put on the floor as dance floor;
- High definition,65536 Pixels/sqm,can show extremely clear and vivid video,images and texts,looking very high end;
- It's possible to be waterproof by pasting glue on it , can be used both outdoors and indoors.;
- Noiseless: Die-casting Aluminum cabinets, with noiseless power supply;
- State-of -art anti-drop design,fast installation by single person;
- Good thermal design, excellent heat dissipation even no fan installation, very quiet;
P3.91 Indoor Rental LED Display parameter:
Model | LW-RI3.91 |
Pixel Pitch | 3.91mm |
Pixel Density | 65536dots/sqm |
Color Configuration | 1R1G1B |
LED Package | SMD2121 |
Module Size | 250mm x 250mm |
Module Resolution | 64dots x 64dots |
Drive Mode | 1/16 Scan |
Standard Cabinet Size | 500mm x 500mm |
Cabinet Weight | 7KG |
Brightness | ≥1300 cd/sqm, adjustable by software |
Viewing Distance | 4m-40m |
Viewing Angle | H: 140°; V:120° |
Refresh Rate | 1500HZ, adjustable by software |
Frame Rate | 120frame/s |
Grey Scale | 16.7M colors(Synchronized) |
Color Temperature | R.G.B brightness 256 level adjustable |
Power Input | AC110V/ 220V ±10%, 50HZ |
Max Power Consumption | 800W/sqm |
Ave. Power Consumption | 300W/sqm |
Storage Temperature | -30℃~+70 degree |
Working Temperature | -20℃~+50 degree |
Blind Spot Rate | <1/10000 |
MTBF | >10,000 Hours |
Life Span | >100,000 Hours |
Waterproof Level | IP43 |
Operating Humidity | 10%~90% RH |
Control Method | Synchronous, Asynchronous, 3G,WIFI,USB |
PC Display Resolution | 1280x1024 |
Control PC | With DVI Graphic card |
Operating System | Win 98, Win2000, XP, Win7, Win8 |
Video Signal Mode | RF, S-Video, RGB, RGBHV, YUV, YC etc |
Certificate | CE, RoHS |
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. |
FQA:
- What's the controlling system?
- Our standard controlling system for this model is Linsn/ Novastar. Also support other controlling system,like HD,Xixun,TF, Colorlight, etc;
- If any products have problems,how to do?
- Firstly,we hope you can perfect products when goods arrive your hands;Second,All orders will give some free spare parts ,like led lamps or ICs ,you can do some simple reparing works.If you purchase LED screen,please don't forget to buy samll quantity module for spare.
- How could I know to control LED display?
- Fristly ,if we sell screen for you,control system was be set up in sdvance by us;or if you buy different spare parts (like module,control card,power supply ) from us,we also can set up control system in advance ,and we can recommend right control card for you .Second,we can help you set up led screen by teamviewer or send RCG file to you if you can't finish set up by yourself in your there
- Guarantee
- (1) We guarantee all our displays, modules, parts for two full year. During this time, we will replace or remand our goods for free if there is something wrong with them.
- (2) We will provide maintenance for a lifetime and charge for the raw materials only
P3.91 Indoor Rental LED Display aging:
