Flexible Indoor Rental LED Display Panels With Easy Installation For Stage
Flexible Indoor Rental LED Display Panels With Easy Installation For Stage
Flexible Indoor Rental LED Display Panels With Easy Installation For Stage
Flexible Indoor Rental LED Display Panels With Easy Installation For Stage
Specifications
Brand Name :
Shenzhen LED World
Model Number :
LW-RI 5.95
Certification :
CE,RoHS,FCC,CCC
Place of Origin :
China
MOQ :
1 square meter
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
3000 sqm/month
Delivery Time :
12~20 working days after deposit received
Packaging Details :
Carton/Plywood case/Flight case etc.
Pixel pitch :
5.95mm
Pixel Configuration :
1R1G1B
Drive model :
1/8 scan
Module pixel :
1764 pixel
Number of colors :
16bit
Working temperature :
-20°C~+50 °C
Transfer board :
hub75
Panel resolution :
84X84
Grey scale :
16Bits
Brightness :
1800 cd/M2
Description

indoor&outdoor rental 500x500mm-P3.91,P4.81,P5.95,...

P5.95 Indoor rental Flexible led display panels with Easy Installation for stage

P5.95 Indoor rental Flexible led display panels Features:

  1. Noiseless and stable,high quality heat conducting silicone and die-casting aluminum structure;
  2. Real and natural color ,leading calibration technology is applied with advenced color reproduction function to offer a real natural that is completely complied with human eyes visual habit;
  3. Seamless connection, surface tolerance less than 0.2mm;
  4. Thin and light design and fast lock, easy to assemble and disassemble in 10S a cabinet;
  5. Ultra lightweight and slim design: 8kg and 77mm modular panel:fewer cables, 1-in 1-out design plug and 1-in 1-out design signal cable;

P5.95 Indoor rental Flexible led display panels Specification:

  1. Easy installation and transportation;
  2. High grey scale;
  3. Smart fast side locks makes screen assembly fast and easier;
  4. Die-cast aluminum with CNC is finished, the dimension tolerance of less than 0.01mm, and module shaping one time;

P5.95 Indoor rental Flexible led display panels Parameters:

led lamp & led display module parameter:

No. Parameter Value
led type brightness Wave Length H/V Visual angle
1 Red LED SMD3528 120-140 MCD 620-625nm 140°/120°
2 Green LED SMD3528 360-435 MCD 520-525nm 140°/120°
3 Blue LED SMD3528 80- 100 MCD 470-475nm 140°/120°
4 Pixel pitch 5.95 mm
5 Brightness 1800 cd/M2
6 Module size 250mm x 250mm
7 Drive model 1/8 scan
8 Pixel Configuration 1R1G1B
9 Module Resolution 42 dots x42 dots
10 Module pixel 1764 pixel
11 Power DC 5 v
12 Number of colors 16bit
13 Discrete control point ≤0.1‰
14 Control method Synchronize with the video source
15 Working temperature -20°C~+50 °C
16 Working environment humidity 10%~90%
17 Transfer board hub75

led cabinet parameter:

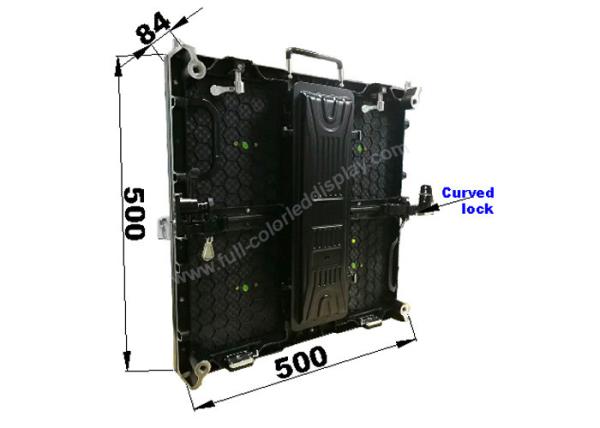

Panel size (mm) 500×500
Panel resolution 84X84
Cabinet weight 8kgs

Electricity parameter

Powerconsumption 700/300
Max./Avg. (W/)
View angle(H/V) 160°/140°
Refresh rate(Hz) ≥1920
Grey scale 16Bits
Best view distance 3-18M
Protection level IP31
Input Power (V) 110~240
WorkingTemperature -20ºC~+50ºC
Working humidity 10% ~90%
Control Caste ≤100M, Fiber optical≤10000M

Why choose us:

  1. moveable, mandatory, appropriateness, effectiveness, etc;
  2. procesures and instructions clearly-stated ;
  3. Fast locks and assembling pins, flatness and seamless are greatly increased, less than 0.01mm , easy to install and dismantle .Seamless connection, less than 0.1mm between 2 cabinet ;
  4. Delivery date is quick and on time ;

Project case:

Flexible Indoor Rental LED Display Panels With Easy Installation For Stage
