P4.81 Curved LED Video Display Both For Straight And Arc Shape , High Definition
P4.81 Curved LED Video Display Both For Straight And Arc Shape , High Definition
P4.81 Curved LED Video Display Both For Straight And Arc Shape , High Definition
P4.81 Curved LED Video Display Both For Straight And Arc Shape , High Definition
P4.81 Curved LED Video Display Both For Straight And Arc Shape , High Definition
P4.81 Curved LED Video Display Both For Straight And Arc Shape , High Definition
Specifications
Brand Name :
Shenzhen LED World
Model Number :
LW-RI 4.81
Certification :
CE,RoHS,FCC,CCC
Place of Origin :
China
MOQ :
1 square meter
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
3000 sqm/month
Delivery Time :
12~20 working days after deposit received
Packaging Details :
Carton/Plywood case/Flight case etc.
Pixel pitch :
PH4.81mm
Drive model :
1/13 scan
Module Resolution :
52 dots x 52 dots
Working environment humidity :
10%~90%
Discrete control point :
≤0.1‰
Transfer board :
Hub75
Cabinet material :
die-casting
Brightness :
1300 cd/M2
Power :
DC 5 v
Cabinet weight :
7.5 kg
Description

indoor&outdoor rental 500mmx500mm-P4.81.pdf

P4.81 Indoor rental Curved LED video display both for straight and arc shape

P4.81 Indoor rental Curved LED video display Quick detail:

  1. Cabinet Resolution: 104dots *104 dots ;

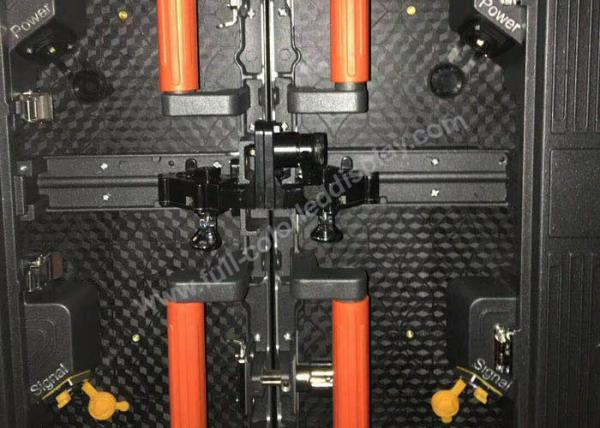

  2. fast lock on each side is equipped, makes very convenient and comfortable for fast installation by one person without tools;
  3. besides guarantee seamless installation and keep smoothlyAdopts black SMD2121, high quality full black leds, together with black mask, achieves clear and crystal picture;

P4.81 Indoor rental Curved LED video display features:

  1. Able to freely transform the various shapes of assembly, to meet customer requirements;
  2. SMD Black LEDs, wide viewing angle, Hor. Ver. 140 degree;
  3. Cabinet weight is only 8.3 kg, decreasing the transportation cost and the intensity of labor;
  4. The brightness of the led display rental can reach over 1500cd/m²;
  5. As super lightness, super thinness, high definition and convenient installation and they support hoisting installation and seat installtion;
  6. IC and LED will focus on a PCB board, improve the thermal performance and stability;

P4.81 Indoor rental Curved LED video display Parameter:

Module parameter:

Parameter Value
led type brightness Wave Length H/V Visual angle
Red LED SMD2121 120-140 MCD 620-625nm 140°/120°
Green LED SMD2121 360-435 MCD 520-525nm 140°/120°
Blue LED SMD2121 80- 100 MCD 470-475nm 140°/120°
Pixel pitch 4.81 mm
Brightness 1300 cd/M2
Module size 250mm x 250mm
Drive model 1/13 scan
Pixel Configuration 1R1G1B
Module Resolution 52 dots x 52 dots
Module pixel 2704 pixel
Power DC 5 v
Number of colors 16bit
Discrete control point ≤0.1‰
Control method Synchronize with the video source
Working temperature -20°C~+50 °C
Working environment humidity 10%~90%
Transfer board hub75

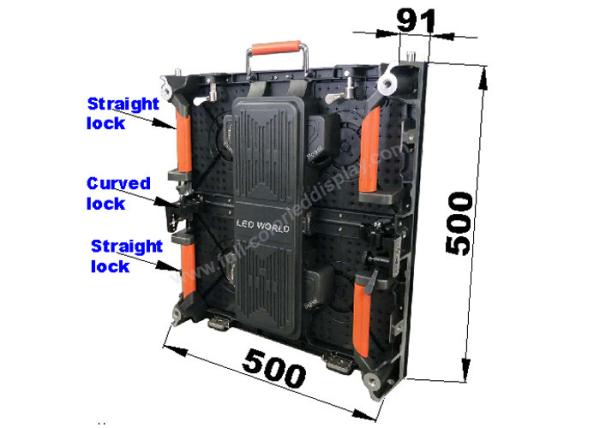

Cabinet parameter:

Cabinet Model P4.81
Dimension 500*500mm
resolution 104 dots x 104 dots
Pixel Density 43264 DOTS/sqn
Pixel configuration 1R1G1B
Cabinet material Die-casting
Average power 18W
Cabinet weight 7.5KG

Why choose us:

  1. We take in charge of the whole procedures of materials purchasing, testing, producing, debugging, packing and after sale service to give you assured;
  2. We strictly follows ISO9001:2008 quality management system and passed CE,FCC,UL,ROHS,ETL,EMC,CCC etc;
  3. Rich colors: With three basic colors (red, green and blue),256-level gradation of each color, and form 16777216 kinds of colors;
  4. With 10 years deeply study in led industry,LED World has own profound technical precipitation, research and development strength has been leading the industry;
  5. The cabinet connection can fully realize seamless splice and tool-less rapid assembly;

P4.81 Indoor rental Curved LED video display project:

P4.81 Curved LED Video Display Both For Straight And Arc Shape , High Definition
