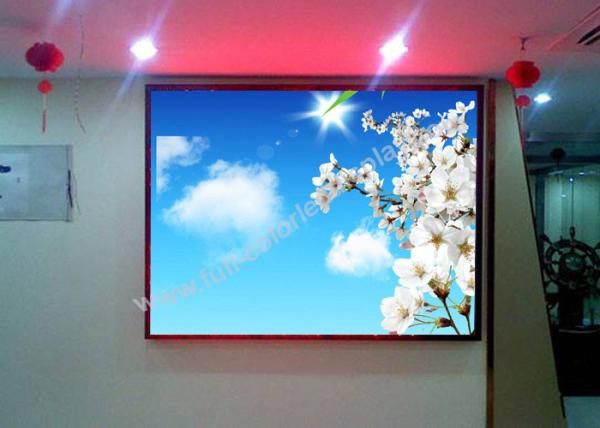

Ultra Slim P2.5 HD LED Display With Magnets Installation 480x480 Die Casting
Ultra Slim P2.5 HD LED Display With Magnets Installation 480x480 Die Casting
Ultra Slim P2.5 HD LED Display With Magnets Installation 480x480 Die Casting
Ultra Slim P2.5 HD LED Display With Magnets Installation 480x480 Die Casting
Ultra Slim P2.5 HD LED Display With Magnets Installation 480x480 Die Casting
Ultra Slim P2.5 HD LED Display With Magnets Installation 480x480 Die Casting
Ultra Slim P2.5 HD LED Display With Magnets Installation 480x480 Die Casting
Ultra Slim P2.5 HD LED Display With Magnets Installation 480x480 Die Casting
Specifications
Brand Name :
Shenzhen LED World
Model Number :
LW-VI 2.5
Certification :
CE,RoHS,FCC
Place of Origin :
China
MOQ :
1 square meter
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5,00 square meters per month
Delivery Time :
12-20 working days after received your payment
Packaging Details :
Carton/Plywood case/Flight case etc.
Material :
Iron
Color processing :
16bit
Best view distance :
≥ 3m
Working temperature :
-20℃ ~ +50℃
Signal interface :
:DVI
Weight :
5.8Kg
Working Voltage :
DC 5V
Humidity(RH) :
≤ 90 ~ 95%
Description

Ultra Slim P2.5 HD LED Display with Magnets Installation 480x480 die casting

P2.5 HD LED Display features:

  • High-Energy Saving
  • Save 66% energy;
  • High resolution images;
  • Hd display, the picture is exquisite;
  • Driver IC SUM2032/MBI 5153 Grey Scale ≥16Bit(depending on the system and IC configuration);
  • Wide viewing angle: 160/140 degree;
  • Pixel Pitch PH2.5mm PH1.9mm PH1.6mm Cabinet ;
  • It's designed for high end market,can show extremely clear video, images and texts;
  • High Frame Frequency 120hz frame frequency working mode;
  • Ideal for close viewing distance;

P2.5 HD LED Display parameter:

Item Specification
Pixel Physical pixel pitch: 2.5 mm
Pixel configuration: 1R1PG1PB
Module Module resolution:80x60 pixels Module size: 200 x 150mm
Cabinet Cabinet resolution:160x120pixel Cabinet size: 400 x 300 x 75mm
Cabinet density:19200pixels Module Qty: 9pcs = 2(w) x 2(h)
Material: Iron Weight: 5.8Kg
Average power: 80W Max power consumption: 150W
Electricity parameter Brightness: 800 - 1100 nits
Brightness adjusted: 100 grade by software, or by Auto-optic induced
Color processing: 16bit
Display color: 280 trillion
Color temperature(k): 5000 — 9500 (choice by user)
Physical density: 160000 pixels/sqm
Whole display flatness: ≤ 1mm juncture
Best view distance: ≥ 3m
Best view angle: Horizontal ±80°, Vertical ±80°
Storage temperature: -35℃ ~ +85℃
Working temperature: -20℃ ~ +50℃
Driving method: Constant driving current
Refresh frequency: ≥ 1200Hz
Frame rate: ≥ 60Hz
Humidity(RH): ≤ 90 ~ 95%
Protection grade: IP31
Working Voltage: DC 5V
Power supply: AC110 / 220V, 50/60Hz
Average power consumption: 500 w/sqm
Max power consumption: 1100 w/sqm
MTBF: 10000 hours
Screen lifetime: 100000 hours
Control system Signal interface: DVI
Communication distance: Internet cable: ≤ 120m Fiber cable: 1000m
Signal transfer mode: Pixels to pixels display synchronized
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

FQA:

  • Can it play HD video?
  • Yes, it can realize HD video function with Linsn controlling system.
  • Are you manufacturer or trading company?
  • We are manufacturer with professional marketing and service team;
  • Where is your company?
  • We are located in address:No.4 Bldg,Second Industrial Park of Baiwang,Baimang Village,Xili street,Nanshan District,Shenzhen,China;

Why choose us:

  • Service advantage: Better service at same situation, better cooperation at same service;
  • 100% QC inspection before shipping;
  • Our products are the CE certified, ROHS compliant, FCC identified;

P2.5 HD LED Display product detail:

Ultra Slim P2.5 HD LED Display With Magnets Installation 480x480 Die Casting
