P1.66 Lightweight Led Screen , Hanging Led Display For Stage Background
P1.66 Lightweight Led Screen , Hanging Led Display For Stage Background
P1.66 Lightweight Led Screen , Hanging Led Display For Stage Background
P1.66 Lightweight Led Screen , Hanging Led Display For Stage Background
P1.66 Lightweight Led Screen , Hanging Led Display For Stage Background
P1.66 Lightweight Led Screen , Hanging Led Display For Stage Background
P1.66 Lightweight Led Screen , Hanging Led Display For Stage Background
P1.66 Lightweight Led Screen , Hanging Led Display For Stage Background
Specifications
Brand Name :
Shenzhen LED World
Model Number :
LW-VI 1.66
Certification :
CE,RoHS,FCC
Place of Origin :
China
MOQ :
1 square meter
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5,00 square meters per month
Delivery Time :
12-20 working days after received your payment
Packaging Details :
Carton/Plywood case/Flight case etc.
Cabinet installation type :
Rental/Fix
Operating Humidity(RH) :
10~90
AC Input Power Maximum Value(W/m²) :
640
AC Input Voltage(V) :
100~240
Frame Frequency(Hz) :
50/60
Module Weight (kg) :
0.4
Pixel matrix per panel :
240×180
Cabinet weight (kg) :
7.6
Description

P1.66 Ultra Slim light weight HD LED display with Hanging Beam for Stage Background

Application:

It can be widely used in parking garage,subway station,4S shop,television studio, high-rise building roof,backgound,subway,Entertainment complexes,traffic Control,convention center,airport,
Outdoor Signage and advertisement,outdoor,park,golf course,government project,traffic ,swimming pools,Internet bar,banks and so on.

Features:

  • High resolution, small pixel pitch;
  • Extremely close view distances and wide view angles;
  • Cabinet Resolution(W*H) 160*120 210*157 250*187 Pixel Configuration 1R1G1B(in 3 n;
  • Driver IC SUM2032/MBI 5153 Grey Scale ≥16Bit(depending on the system and IC configuration);
  • Billion level color and high brightness quality black LED,realizing perfect of gray scale and contrast;
  • Nanosecond response time.Stable and continue high-quality video for high-end applications;
  • Use leading technical MBI5153 driver IC:high grey level,high refresh rate and low brightness to ensure the LED display to appear more perfect image;
  • Small pixel dots, High definition, wide view angle and close view distance；
  • Ideal for close viewing distance;
  • Low Brightness And High Gray-scale;
  • High gray-scale available even below 200CD brightness, the layering and vividness of the video superior to the traditional screen.

Our service:

  • Service time: 24 hours*7 days;
  • Service principles: Response in time, solve problems as soon as possible and ensure the use;
  • Monthly production capacity: 3000 Sq. M;
  • We promise a life time follow-up service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software;
  • All of our LED display have proceeded aging test before shipment,and we guarantee to use our products safety;
  • We provide 2 years for warranty and lifelong maintaining ,you will appreciate our warm after-sale service;
  • We only offer the drawings, and you can show the drawing to your local steel structure factory, and they will weld it for you at site. On one hand, it's not cost-effective for you to ship the steel structure from China. On the other hand, we are impossible to offer you exact steel structure without welding at site;
  • 2 years for warranty, service time: 24 hours*7 days.

Parameter:

Parameter Value
Physical Parameter Pixel Configuration 1010 black body 3in1 SMD
Pixel Pitch (mm) 1.667
Pixel matrix per panel 240×180
Module Dimensions (LxWxH)/(mm) 200×150
Cabinet Dimensions (LxWxH)/(mm) 400×300×120
Panel material Diecasting Aluminum
Module Weight (kg) 0.4
Cabinet weight (kg) 7.6
Electronic Parameter Color Grayscale (Bit) 14
Gray Scale per Color (level) 16384
Refresh Rate(Hz) 3840
Driving Type 1/30
Frame Frequency(Hz) 50/60
Signal Transmission Distance (m) CAT5 cable:<100 m; Single mode fiber:<10 km
Optical Parameter Brightness(cd/m2) 800
Color Temperature(K) 7500
Color Contrast 3000:01:00
Optimal Horizontal Viewing Angle (°) 160
Optimal Vertical Viewing Angle (°) 160
Electrical Parameter AC Input Voltage(V) 100~240
AC Input Frequency(Hz) 50/60
Power Factor >0.9
AC Input Power Maximum Value(W/m²) 640
AC Input Power Typical Value(W/m²) 215
Circumstance Parameter Storage Temperature(ºC) -40~+60
Operating Temperature(ºC) -10~+40
Storage Humidity(RH) 10~90
Operating Humidity(RH) 10~90
Waterproof Rating IP40/IP21
Lifetime Typical Value(hrs) 100000
Intallation type for rental product Cabinet installation type Rental/Fix
Maximum number of panel for Lifting 20
Others Communication - level power supply (customization), hot double backup, temperature and humidity test, multi - signal input support, etc. Double backup, temperature and humidity test, multi - signal input support, etc.
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

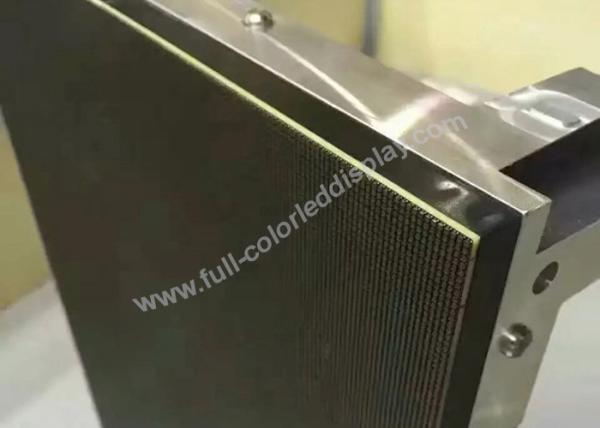

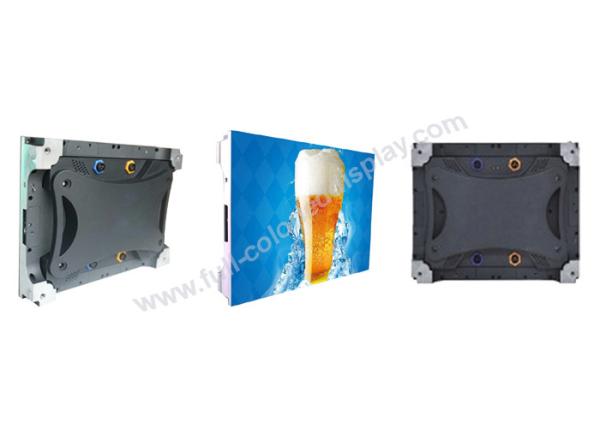

Product detail:

P1.66 Lightweight Led Screen , Hanging Led Display For Stage Background

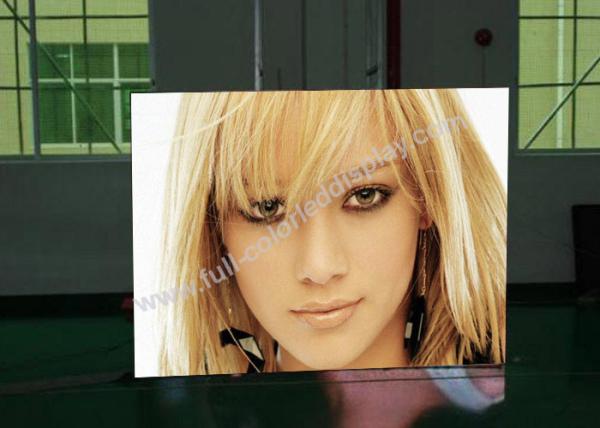

Project case:

P1.66 Lightweight Led Screen , Hanging Led Display For Stage Background
