Tri - Color P4 Indoor Fixed Led Display Panel Video Wall With Seetronic Plug
Tri - Color P4 Indoor Fixed Led Display Panel Video Wall With Seetronic Plug
Tri - Color P4 Indoor Fixed Led Display Panel Video Wall With Seetronic Plug
Tri - Color P4 Indoor Fixed Led Display Panel Video Wall With Seetronic Plug
Specifications
Brand Name :
Shenzhen LED World
Model Number :
LW-RI 4
Certification :
CE,RoHS,FCC,CCC
Place of Origin :
China
MOQ :
1 square meter
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
2000 sqm/month
Delivery Time :
12~20 working days after deposit received
Packaging Details :
Carton/Plywood case/Flight case etc.
Module resolution :
64dots(W)*32dots
Pixel pitch :
4mm
Module Thickness :
1.3CM
Module Weight :
0.18kg
Module quantity :
16pcs
Interface :
HUB75-A
Product Model :
P4 Indoor Full Color LED Module
Optimal viewing distance :
4M~20M
Scanning method :
1/16scan
Pixel density :
62500dots/m2
Description

indoor rental 512mmx512mm-P4.pdf

Tri-color P4 Indoor Rental LED Display panel video wall with electronic Plug

P4 Indoor Rental LED Display panel video wall description:

  1. Black body LED lamp for high contrast rate : 5000:1;
  2. Stable Good quality: we have stable raw materials suppliers such as The lamp; the IC; the power supply; the control system etc. Every link, we have strict quality checks;
  3. High screen flatness local inaccuracy and seamless connection;
  4. P4 HD full color LED video wall for rental;
  5. Thin Die-cast aluminum design high precision thickness only 80mm;
  6. Can be hanging, good for rental use;

P4 Indoor Rental LED Display panel video wall parameter:

Modules Items Parameter
Product Model P4 Indoor Full Color LED Module
Module size 256mm*128mm
Module resolution 64dots(W)*32dots
Pixel pitch 4mm
Pixel density 62500dots/m2
Pixel configuration 1R1G1B
Module maximum power consumption 18W
Module Thickness 1.3CM
Module Weight 0.18kg
Driving method Constant Current Driving
Scanning method 1/16scan
Interface HUB75-A
Brightness ≥1500cd/m2
cabinets Cabinet size 512mm*512mm
Module quantity 16pcs
Power supply 5V/40A 5V/60A
Cabinet resolution 128*128dots
Optimal viewing distance 4M~20M
Optimal viewing angle 160°(W) 120°(H)
RHWorking temperature (Work :-20°C~+60°C)
System operating humility 10%-95%
The specifications of power supplier
Operating Voltage AC220V±10%
Average power consumption 350W/H
Maximum power consumption ≤160W/m2
Electric current ≤20mA(single LED)
Control system Control Panels Pentium4 or above
Operating system WIN98/2000/NT/XP
Control model Synchronization with PC
The specifications of the main technical parameters
Driving device Constant Current Driving
Refresh rate ≥3840HZ
Grey scale RGB Each 256, can display 16.7M colors)
MTBF ≥9000hours
Power switch Automatic Switch
Display Mode 800*600/1024*768/1280*900
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Our service:
  1. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours；
  2. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory;
  3. The exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs;
  4. Experienced staffs answer all your query in fluent English;
  5. Delivery----Mostly we can ship goods as arranged schedule;

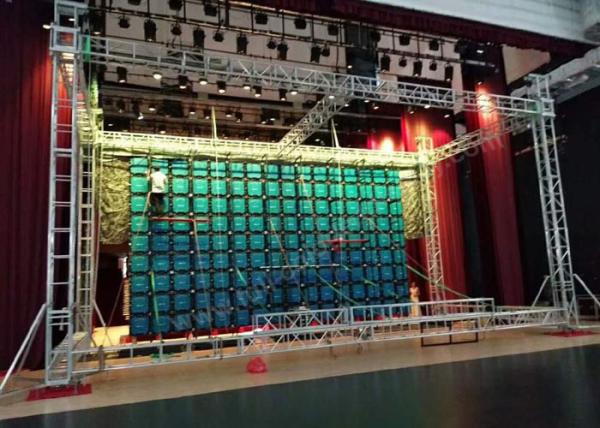

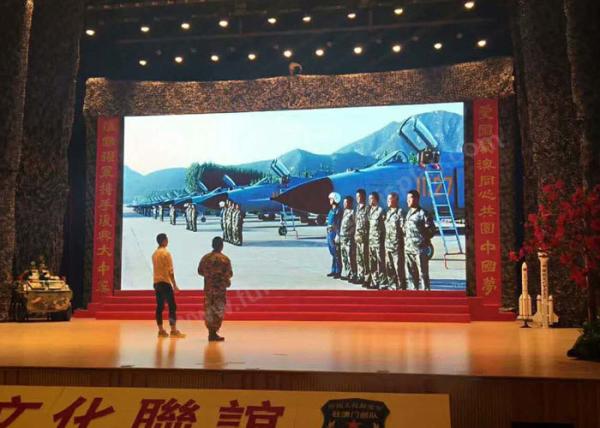

P4 Indoor Rental LED Display panel video wall project case:

Tri - Color P4 Indoor Fixed Led Display Panel Video Wall With Seetronic Plug
