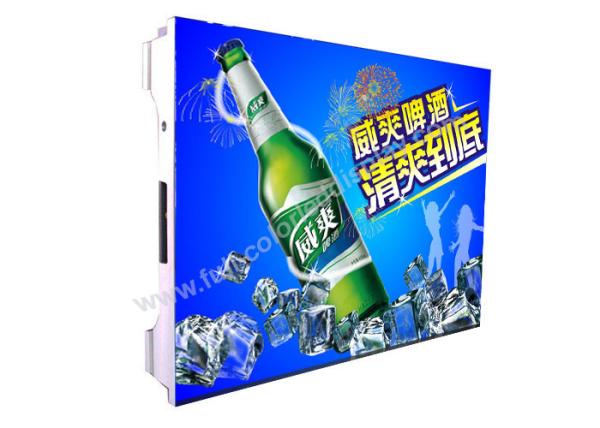

Ultra Slim P1.92 rental HD LED display Seamless Spliced 400x300 die-caste cabinet
Application:
It is designed for rental use Government facilities,concert,Showrooms,conferance center, monitoring centers,Theatres and Retail outlets,Churches,station weiting area,Offices,theme parks,restaurant,mansion video wall,Convenience Stores,swimming pools,internal,Highway,industrial park,train station,securities exchanging,Amusement parks and so on .
Features:
Our service:
Parameter:
| No. | Parameter | Specification |
| 1 | Pixel Pitch(mm) | 1.92 |
| 2 | Pixel Density | 270400pix/sq.m |
| 3 | LED Type | SMD1010(nation star) |
| 4 | LED Wave Length(nm) | R:620-625/G:517.5-520/B:465-467.5 |
| 5 | LED Luminous Intensity(mcd) | R:100~130/G:120~156/B:20~26 |
| 6 | Viewing Angle | H/V:140°/140° |
| 7 | Brightness | 1000cd/m2 |
| 8 | Drive Method | 1/26 scan |
| 9 | Driving IC | MBI5153+4067(black-out) |
| 10 | Color Depth | 16bit |
| 11 | Refresh Rate(Hz) | 2000 |
| 12 | Frame Rate(Hz) | ≥60 |
| 13 | Brightness Adjustment | Manual/Automatic/Remote |
| 14 | Module Size(mm) | 200×150 |
| 15 | Module Resolution(dots) | 104×78 |
| 16 | Cabinet Size(mm) | 400×300 |
| 17 | Cabinet Display Resolution(dots) | 208×156 |
| 18 | Cabinet Type and Material | Die-casting Aluminum |
| 19 | Cabinet Weight(Kg) | 5.6kg |
| 20 | Power Supply | 5.0V 40A |
| 21 | Voltage(V) | AC 220V |
| 22 | Avg. Power Consumption | 350W/sq.m |
| 23 | Max. Power Consumption | 850W/sq.m |
| 24 | Service Access | Rear Access |
| 25 | IP Grade | IP31 |
| 26 | Operating Temp/Humidity | -20ºC~50ºC, 10~90%RH |
| 27 | Storage Temp/Humidity | -40ºC~60ºC, 10~90%RH |
| 28 | Lifetime(Normal Temp) | ≥50000H |
| 29 | System Control | Nova star |
| 30 | Compliant Standard | CCC,CE |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||

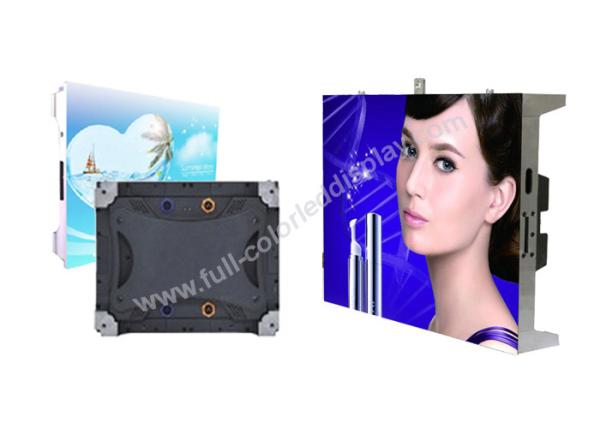

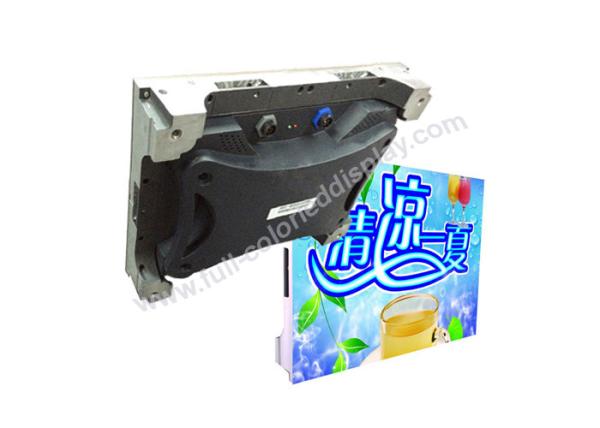

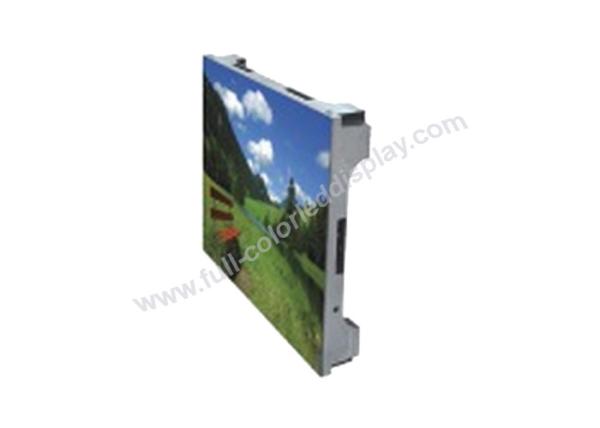

Product detail:

Product aging:
