1080P P1.66 HD LED Video Screen Display for indoor video television
Features:
- High resolution,wide view angle,short view distance available,eys friendly;
- High Refresh Rate
- Smooth and vivid videos without ripple and blank, clear images restored accurately, bringing the audience greatest visual enjoyment;
- High resolution images;
- High resolution, small pixel pitch;
- small spacing screen series, the picture is very hd is exquisite, high contrast and gray level;
- Refresh Frequency ≥2880Hz(Support High refresh rate, depend on the system configuration);
- High pixel density, high definition, colorful, rich perspective, long life span and energy-saving etc;
- Full HD;
- Billion level color and high brightness quality black LED,realizing perfect of gray scale and contrast;
- High quality, High defination, High refresh;
Application:
Suitable for hospitals,commercial buildings,entertainment, club,industrial park,convention center,museum,motor racing Circuits, surrounding,internal,commercial building,lottery center,live broadcase,cafe,high speed railway station and so on .
Our service:
- We promise you more than just two years warranty service;
- On-line remote service is available;
- You can replace the broken one with the spare parts when problem happens, which will take about 5 minutes, and then send the broken ones back to our factory for fixing freely before you don't have enough spare parts for next maintenance;
- Your inquiry related to our products or prices will be replied in 24hrs;
- Protection of your sales area, ideas of design and all your private information;
- Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees;
- 1% spare parts offered FOC;
- Allow free training .You can send your engineer to our factory for training untill he knows all the operation;

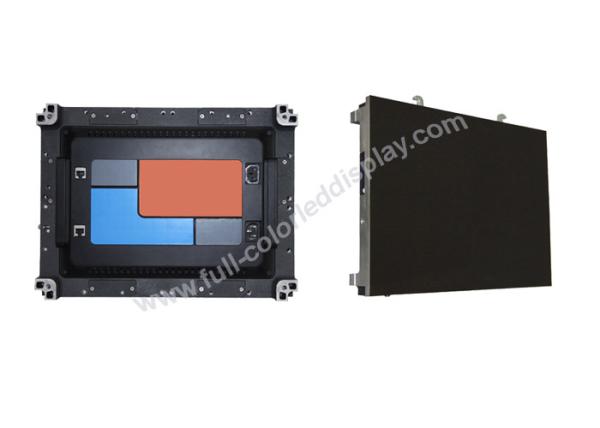

Parameter:
| Model | LW-FI1.66 |
| Pixel pitch(mm) | 1.667 |
| Configuration | SMD1010 |
| Module dimension(mm) | (W)200x(H)300 |
| Panel dimension(mm) | (W)400x(H)300x(T)66 |
| module resolution | 120x90 dots |
| Module weight(kg) | 0.4 |
| cabinet resolution | 240x180 dots |
| Installation type | Fix |
| Panel weight(kg) | 4.6 |
| Pixel density(dots/㎡) | 360000 |
| Flatness error(mm) | ≤0.1 |
| Viewing angle(°) | 160/160(Horizontal/Vertical) |
| Brightness(cd/㎡) | ≥700 |
| Color temperature(K) | 3200~9300 (Adjustable) |
| Contrast | 5000:01:00 |
| Repetition frequency(Hz) | 50/60 |
| Refresh frequency(Hz) | ≥2000 |
| Gray scale(bit) | 16 |
| Ave. power(W/㎡) | 240 |
| Max power(W/㎡) | 1000 |
| Panel structure | Die-casting aluminum |
| Maintenance | Rear |
| Brightness/color correction | Yes |
| Driving mode | Constant current driver, 1/30 scanning |
| Power requirements | AC90~264V, 47~63Hz |
| Signal Transmission Distance | CAT cable:<100m;Single mode fiber:<10km |
| Working temp./humidity | -10~40℃/10%~80%RH |
| Storing temp./humidity | -20~60℃/10%~85%RH |
| Life time(hrs) | 50,000 |
| Certificate | CCC/TUV-CE/ETL, etc. |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. |
