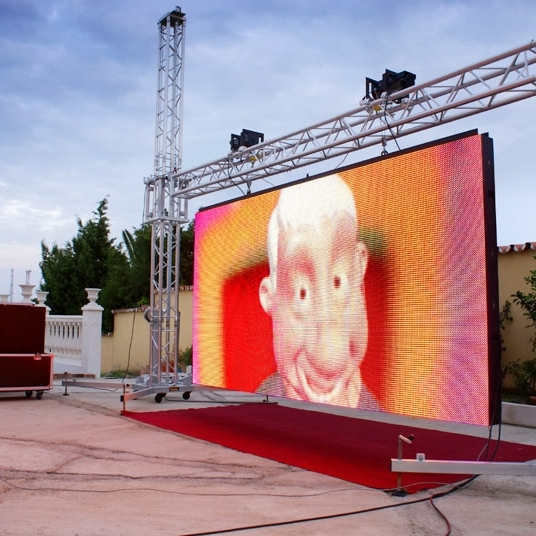

3x2 Indoor Outdoor Rental HD P3.91 P4.81 Video Wall Concert Stage Led Screen for Wedding

Specifications

application :

indoor, Outdoor, Rental Stage Concert

Pixel Pitch :

3.91mm

warranty :

2 years, 3 years, 5 years

Material :

Die Casting Aluminum

Size :

500x500mm, 500x1000mm

color :

Full Color

Voltage :

100-240V

Dimensions :

3x2m

supplier type :

original manufacturer, ODM, OEM

Mounting type :

Hanging, Floor stand

Remote Device Management :

Usage environment :

indoor/outdoor

media available :

datasheet, Photo, EDA/CAD Models, Other

Place of Origin :

Guangdong, China

Model Number :

AF Series

Brand Name :

Chipshow

use :

advertising publish, retail store, shopping mall, display of dishes, welcome display, self-service business, exhibition hall, wayfinding, airport, subway, elevator, Restaurant & Hotel Supplies, Education, medical treatment

function :

SDK

pixels :

3.91mm

specification :

Video Wall

Screen Type :

LED

brightness :

4500cd

aspect ratio :

16:9, 4:3, 3:2, 1:1, Other

Pixel Density :

65536

Operating Temperature :

-20°C to 50°C

Contrast Ratio :

4000:1

Color Depth :

16-Bit

lifespan (hours) :

100000

ip rating :

ip65, IP40

installation type :

Wall Mount / Floor Stand / Custom Mount

resolution :

3840X2160, 1920x1080, Customized

view angle（h/v） :

160/160

panel brand :

Chipshow

Operation System :

Windows

Display Function :

Graphics, ANIMATION, Text

Product name :

AF Series Rental LED Screen

Cabinet material :

Die-casting Aluminum

Refresh rate (Hz) :

3840~7680Hz

Brightness :

1000~4500 nits

Warranty :

2~5 Years

Description

Projects

Products Description

Technical Parameter

Specification(Indoor)	1.95mm	2.6mm	2.97mm	3.91mm
LED Configuration	SMD1515	SMD1515	SMD2121	SMD2121
Pixel Density/sqm	262144 dots	147456 dots	112896 dots	65536 dots
Module Size/mm	250x250 mm
Cabinet Size	500 x 500 x 84 mm
Cabinet Material	Die-cast aluminum
Cabinet Resolution	256 x 256 dots	192x192 dots	168x168 dots	128 x 128 dots
Cabinet Weight	6 kg
IP Rating	Front IP65/Rear IP40
Brightness/sqm	1000 nits
View Angle/°	160 / 160(H/V)
Gray Scale/bit	≥16bit
Driving Type	1/32 Scanning	1/32 Scanning	1/42 Scanning	1/32 Scanning
Max. Power Consumption/W	＜650W/㎡
Ave. Power Consumption/W	＜200W/㎡
Refresh Frequency/Hz	3840~7680 Hz
Operating Power	AC 96~242V 50/60Hz
Operating Temperature	-10℃~+40℃

Specification(Outdoor)	2.6mm	2.97mm	3.91mm
LED Configuration	SMD1919	SMD1919	SMD1919
Pixel Density/sqm	147456 dots	112896 dots	65536 dots
Module Size/mm	250x250 mm
Cabinet Size	500 x 500 x 85 mm
Cabinet Material	Die-cast aluminum
Cabinet Resolution	192x192 dots	168x168 dots	128 x 128 dots
Cabinet Weight	6 kg
IP Rating	Front IP65/Rear IP65
Brightness/sqm	4500 nits
View Angle/°	160 / 160(H/V)
Gray Scale/bit	≥16bit
Driving Type	1/32 Scanning	1/42 Scanning	1/16 Scanning
Max. Power Consumption/W	＜800W/㎡
Ave. Power Consumption/W	＜300W/㎡
Refresh Frequency/Hz	3840~7680 Hz
Operating Power	AC 96~242V 50/60Hz
Operating Temperature	-10℃~+40℃

Chipshow with 24 years of experience, a professional team provides the most suitable solution for you. Send us an inquiry to get in touch!

Packing&Shipping

Buyer Feedback

Why Choose Us

FAQ

Q:Who Are We?

A: Chipshow has 20,000sqm high-tech automated workshop, 200 employees,25 research engineers,20 after-sale technicians,5000sqm productivity each month.

Q: How Can We Guarantee Quality?
A: Seven quality control steps ensure your ordered screens good:

1).Suppliers are long-term cooperated large famous company.
2).Material check by professional workers and machines.

3).Debug every modules.

4). 48-hour aging test for all modules before assembling.

5).Test every cabinet's function after assembling by engineers and machines.

6).72-hour aging test for whole screen before shipment.

7). All details final inspection again before package.

Q:What Can You Buy From US?
A: LED Display,LED Screen,LED Sign,LED modules,LED billboard,etc.

Q: Why Should You Buy From US Not From Other Suppliers?
A: After the 20 years' development, Shenzhen Chip Optech Co., Ltd has accumulated rich experience of R&D and has the first-class automated production equipment, standard clean automation production plant and anti-static system devices.

Q:What Services Can We Provide?
A: 2-year quality warranty and life-long repairing service.
If any components need to repair or replace, you can send it back to Shenzhen。
