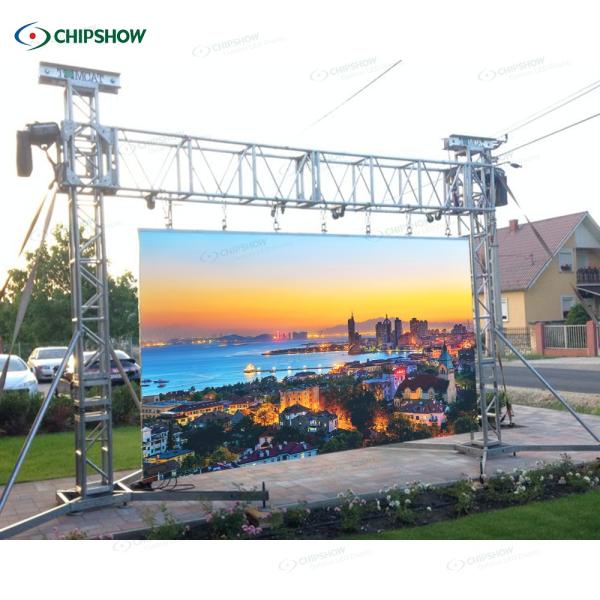

Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Specifications
Color Temperature :
6000-8000K
warranty :
2 years, 3 years, 5 years
Operating Temperature :
-20℃~60℃
Resolution :
7680×4320 (8K), 3840×2160 (4K), 1920×1080 (1080p)
Viewing Angle :
160°
Contrast Ratio :
5000:1
Power Consumption :
≤520W/㎡
Color Depth :
16-Bit
Refresh Rate :
60Hz
Mounting options :
wall mount, ceiling mount, Floor stand, Custom Mount
Power Supply :
100-240V AC
Content Management System :
Yes
Remote Device Management :
Remote Content Management
Usage environment :
stage event background, outdoor stage events, stage events, concert, church backdrop
type :
LED
Brand Name :
Chipshow
application :
Outdoor, indoor
use :
advertising publish, retail store, shopping mall, display of dishes, welcome display, self-service business, exhibition hall, wayfinding, airport, subway, elevator, Restaurant & Hotel Supplies, Education, medical treatment
media available :
Photo, EDA/CAD Models, datasheet
color :
Full Color
Model Number :
C-Shine-Plus
pixel density :
65536
Place of Origin :
Guangdong, China
pixels :
P2.6 / P2.97 / P3.91
Brightness :
1000cd, 4500cd
Ready to Ship :
Stock in US Warehouse, EU Warehouse and China Factory.
Product Name :
Rental LED Screen / LED Wall / LED Display / Outdoor LED Display
Cabinet Material :
High Precision Casting aluminum
Cabinet Size :
500mm*500mm / ≤ 7KG / only 81mm thickness
Refresh Rate (Hz) :
7680Hz High Refresh Rate
Driving Method :
1/16 Scaning
After-sales Service Provided :
Online Video Technical Support
LEDs Protection Tech :
The thrust force of LEDs is 2.3kg, it would be more safe and durable
Module one-touch Rotary Unlock Design :
Quick disassembly and maintenance within 5 seconds
LED Display Solutions :
Events, conferences, stage, church, product launches, and real estate
Description
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen

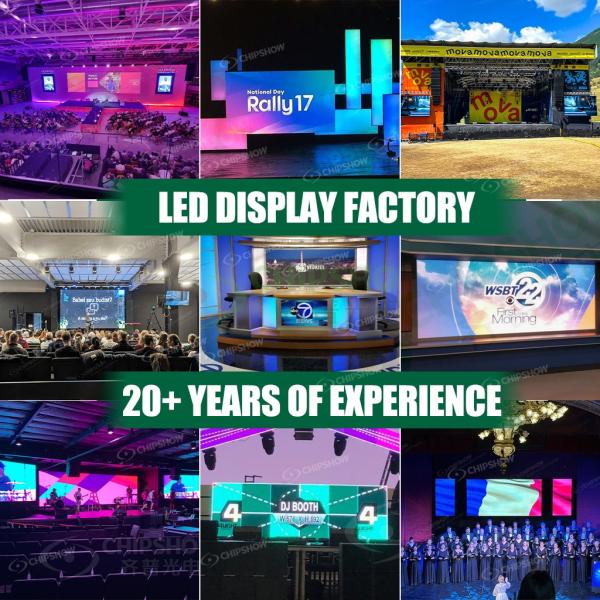

Projects
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Products Description
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Technical Parameter
Specification(Indoor)
2.6mm
2.97mm
3.91mm
LED Configuration
SMD1515
SMD2020
SMD2020
Working voltage
DC4.6V
DC4.6V
DC4.6V
Driving IC
ICND2153S
ICND2153S
ICND2153S
Driving way
1/32
1/28
1/16
Pixel Density/sqm
147456 dots
112896 dots
65536 dots
Module Size/mm
250 x 250 x 16mm
250 x 250 x 16mm
250 x 250 x 16mm
Cabinet Size
500 x 500 x 81mm
500 x 500 x 81mm
500 x 500 x 81mm
Cabinet Resolution
192x 192dots
168 x 168 dots
128 x 128 dots
Cabinet Weight
7kg
7kg
7kg
IP Rating
IP40
IP40
IP40
Brightness/sqm
1000 nits
1000 nits
1000 nits
View Angle/°
120 / 120(H/V)
120 / 120(H/V)
120 / 120(H/V)
Gray Scale/bit
≥14bit
≥14bit
≥14bit
Max. Power Consumption/W
500 W/sqm
500 W/sqm
500 W/sqm
Ave. Power Consumption/W
170 W/sqm
170 W/sqm
170 W/sqm
Refresh Frequency/Hz
3840 Hz
3840 Hz
3840 Hz
Operating Power
AC 96~242V 50/60Hz
Operating Temperature
-20"C~+50"C
Operating Life
10000Hours
Specification(Outdoor)
2.6mm
2.97mm
3.91mm
LED Configuration
SMD1415
SMD1415
SMD1921
Working voltage
DC4.6V
DC4.6V
DC4.6V
Driving IC
ICND2153S
ICND2153S
ICND2153S
Driving way
1/24
1/21
1/16
Pixel Density/sqm
147456 dots
112896 dots
65536 dots
Module Size/mm
250 x 250 x 16mm
250 x 250 x 16mm
250 x 250 x 16mm
Cabinet Size
500 x 500 x 81mm
500 x 500 x 81mm
500 x 500 x 81mm
Cabinet Resolution
192x 192dots
168 x 168 dots
128 x 128 dots
Cabinet Weight
7.5kg
7.5kg
7.5kg
IP Rating
IP65
IP65
IP65
Brightness/sqm
4500 nits
4500 nits
4500 nits
View Angle/°
120 / 120(H/V)
120 / 120(H/V)
120 / 120(H/V)
Gray Scale/bit
≥14bit
≥14bit
≥14bit
Max. Power Consumption/W
520 W/sqm
520 W/sqm
520 W/sqm
Ave. Power Consumption/W
180 W/sqm
180 W/sqm
180 W/sqm
Refresh Frequency/Hz
7680 Hz
7680 Hz
7680 Hz
Operating Power
AC 96~242V 50/60Hz
Operating Temperature
-20"C~+50"C
Operating Life
10000Hours
Packing&Shipping
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Buyer Feedback
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Why Choose Us
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
Waterproof 7680Hz Led Video Wall Panel Chipshow P2.6 P2.97 P3.91 Rental Display Stage Led Screen
FAQ
Q:Who Are We?
A: Chipshow has 20,000sqm high-tech automated workshop, 200 employees,25 research engineers,20 after-sale technicians,5000sqm productivity each month.

Q: How Can We Guarantee Quality?
A: Seven quality control steps ensure your ordered screens good:
1).Suppliers are long-term cooperated large famous company.
2).Material check by professional workers and machines.
3).Debug every modules.
4). 48-hour aging test for all modules before assembling.
5).Test every cabinet's function after assembling by engineers and machines.
6).72-hour aging test for whole screen before shipment.
7). All details final inspection again before package.

Q:What Can You Buy From US?
A: LED Display,LED Screen,LED Sign,LED modules,LED billboard,etc.

Q: Why Should You Buy From US Not From Other Suppliers?
A: After the 20 years' development, Shenzhen Chip Optech Co., Ltd has accumulated rich experience of R&D and has the first-class automated production equipment, standard clean automation production plant and anti-static system devices.

Q:What Services Can We Provide?
A: 2-year quality warranty and life-long repairing service.
If any components need to repair or replace, you can send it back to Shenzhen。
