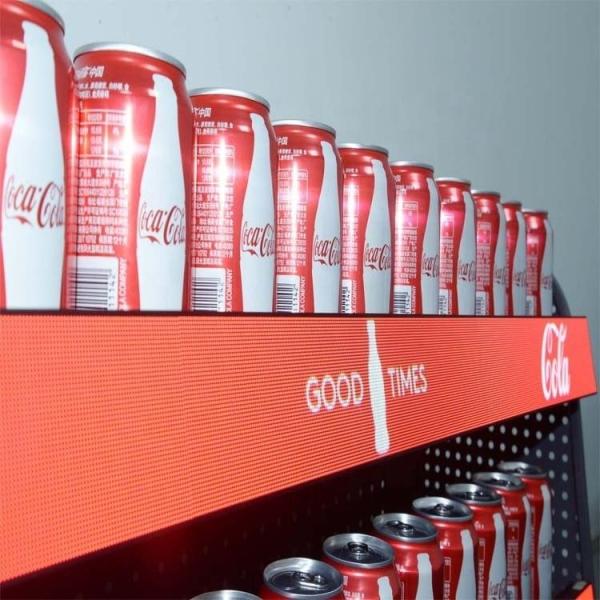

1.25mm LED Shelf Display
1.25mm LED Shelf Display
Specifications
Brand Name :
longrun
Model Number :
I-TANG
MOQ :
1 Piece
Price :
Negotiable
Product name :
P1.25 COB Shelf Display
Pixel Pitch :
1.25mm
Application :
shopping mall
Module size :
150*56.25mm
Power Supply :
5V 60A
LED chip :
COB
Cabinet size :
300mm/600mm/900mm
Brightness :
600cd/sqm
Certificate :
CE RoHS UL FCC Certifications
Usage :
Indoor
Display Function :
Video
Screen Dimension :
300mm/600mm/900mm
Description

1.25mm LED Shelf Display

Waterproof COB Led Display , Retail Led Screens 150*56.25mm Module Size

Product features:

1). Stronger protection: COB LED chips are welded on the PCB board directly, then do encapsulation. It has excellent protection capabilities.

2) Higher reliability and stability: COB technology has a simpler process on the material using and producing than SMD, so it has higher performance on heat dissipation to prolong life span.

3) Larger viewing angle: has a larger viewing angle and is easy to control the loss of light refraction.

Technical Parameters
Item Parameters
Model P1.25
Pixel Pitch(mm) 1.25
Physical Density (dot/sqm) 640,000
LED Configuration 1RGB
Module Size (mmxmm) 150*56.25
Module Resolution (PXxPX) 120*45
Scanning mode 1/45
Brightness(cd/sqm) 500
Grey Scale 16bit
Refresh Rate(Hz) 2880Hz
Panel Resolution(PXxPX) 240*45
Panel Max Power Consumption(w) 15
Panel Average Power Consumption(w) 5
Panel Size(mmxmm) 300*56.25
Panel Weight(kg) 0.35
Panel Thickness(mm) 20
Panel Material Profile aluminum
Color(M) 16.7
Input Voltage AC110V-220V +/-10%

Our advantages:

--2cm super slim thickness

--modular design to match the standard supermarket shelf

--optional panel size 300*56.25mm, 600mm*56.25mm or 900mm*56.25mm

--easy assemble

--support hot-plug

--support hook type installation

--quick delivery time 5-10 days

Detailed Images

Single panel reference: 600mm(W)*56.25mm(H)

1.25mm LED Shelf Display

4 panel assembling reference: 2400mm(W)*56.25mm(H)

1.25mm LED Shelf Display

Easy assembling with screws

1.25mm LED Shelf Display

Support hot-plug

1.25mm LED Shelf Display

Support hook type installation

1.25mm LED Shelf Display

1.25mm LED Shelf Display

Packaging & Shipping

Carton

1.25mm LED Shelf Display

Trade Shows

1.25mm LED Shelf Display

Certifications

1.25mm LED Shelf Display

Advantages

1.25mm LED Shelf Display
