CRI 90+ LED Linear Light Fixture System with Efficiency 125 LM/W
CRI 90+ LED Linear Light Fixture System with Efficiency 125 LM/W
Specifications
Brand Name :
Noonlight
Model Number :
N-TLD-3FT
Place of Origin :
China
Certification :
DLC, ISO9001, Rosh, ETL,
MOQ :
100pcs
Price :
Negotiable
Packaging Details :
Carton box
Delivery Time :
30 day(s)
Payment Terms :
T/T, AliPay, PayPal
Supply Ability :
3000 pcs/day
Application :
LED Trunking Lighting System
Power :
36W(Max)
Warranty :
5 Years
Color Temperature :
3000K / 3500K 4000K / 5000K
Luminous Flux :
4500LM(Max)
CRI :
>80 >90 >95
Input Voltage :
120-277VAC / 120-347VAC / 220-240VAC
Luminous Efficacy :
125LM/W(Max)
Description

Product Description:

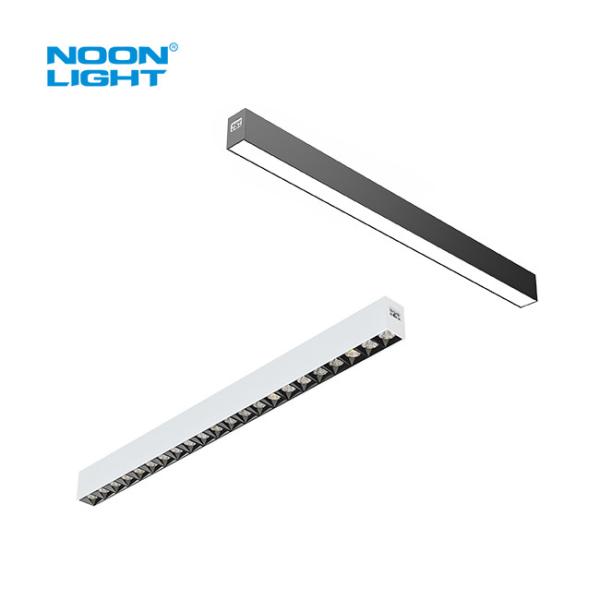

The LED Trunking Light System boasts a unique architectural design, complete with an aluminum housing. This feature ensures its durability and reliability, delivering long-lasting performance, and efficient lighting solutions.

Its installation process is made easy, as it can be pendent-, mounted-, or recessed-installed. It is an incredibly versatile lighting system that can fit to various setups.

Its seamless daisy chain connection feature makes connecting the system helpful in different lighting setups. This ensures that there is no wiring confusion while setting up the lighting system.

The lighting system also offers an option for very low UGR less than 22 or UGR less than 19. This feature makes it incredibly effective in managing glare and shadows, ensuring comfortable and safe lighting conditions.

Furthermore, the LED Trunking Light System is available in standard length or customized length, serving different lighting requirements.

Features:

The product has a wide voltage input range of 120~277VAC, 120~347VAC, and 220~240VAC, which makes it suitable for various environments. Moreover, users have the flexibility to choose between 125Lm/W and 160 Lm/W light efficacy.

Furthermore, the product is dimmable, with options such as 0-10V (dual channel), Dali 2, and Non-dim to suit specific lighting needs. The unit is also equipped with four wattage adjustable settings and four CCT tunnable options.

The product is designed with high CRI levels ranging from CRI>80, CRI>90, and CRI>95 to ensure color accuracy and high-quality lighting. The motion sensor and emergency battery pack options are available to ensure efficient performance during emergencies.

This product comes with ETL, DLC, CE, RoHS certifications, ensuring that it meets international standards. This LED light has a five-year warranty, adding value to your purchase and providing peace of mind.

American Standard:

CRI 90+ LED Linear Light Fixture System with Efficiency 125 LM/W

Size L(IN) W(IN) H(IN)
TLD-2FT 36 1.3 2.4
TLD-3FT 43.75 1.3 2.4

Specifcation:

Model No Dimmable Input Voltage CRI Wattage LPW Lumen Beam Angle
N-TLD-2FT-25W-DF 0-10V
0-10V Dual Channel
Dali2
Non-Dimmable		 120-277VAC
120-347VAC
220-240VAC		 >80
>90
>95		 25W 160LM/W(Max) 4000LM(Max) 120°
N-TLD-2FT-25W-[30,60,90] 25W 125LM/W(Max) 3125LM(Max) 30°,60°,90°
N-TLD-3FT-36W-DF 0-10V
0-10V Dual Channel
Dali2
Non-Dimmable		 120-277VAC
120-347VAC
220-240VAC		 >80
>90
>95		 36W 160LM/W(Max) 5760LM(Max) 120°
N-TLD-3FT-36W-[30,60,90] 36W 125LM/W(Max) 4500LM(Max) 30°,60°,90°
N-TLD-4FT-50W-DF 0-10V
0-10V Dual Channel
Dali2
Non-Dimmable		 120-277VAC
120-347VAC
220-240VAC		 >80
>90
>95		 50W 160LM/W(Max) 8000LM(Max) 120°
N-TLD-4FT-50W-[30,60,90] 50W 125LM/W(Max) 6250LM(Max) 30°,60°,90°

Accessories:

CRI 90+ LED Linear Light Fixture System with Efficiency 125 LM/W
Wireless Fixture Controller With CRI 90+ LED Linear Light Fixture System with Efficiency 125 LM/W Mesh
Features
· Bluetooth Operation Frequency 2.4ghz - 2.483 Ghz
· Bluetooth Protocol:CRI 90+ LED Linear Light Fixture System with Efficiency 125 LM/W Mesh
· Input Voltage: 12 - 24v Dc.
· Input Current: 20ma.
· 0~10v Dimming, Task Tuning (10-100%)

Applications:

Super market, office, commercial places, hospital, gym, warehouse, workshop, shopping mall
