120° Beam Angle LED Trunking System for Commercial Lighting
120° Beam Angle LED Trunking System for Commercial Lighting
Specifications
Brand Name :
Noonlight
Model Number :
N-TLD-3FT
Place of Origin :
China
Certification :
DLC, ISO9001, Rosh, ETL,
MOQ :
100pcs
Price :
Negotiable
Packaging Details :
Carton box
Delivery Time :
30 day(s)
Payment Terms :
T/T, AliPay, PayPal
Supply Ability :
3000 pcs/day
Warranty :
5 Years
Beam Angle :
30°,60°,90°,120°
Power :
36W(Max)
Input Voltage :
120-277VAC / 120-347VAC / 220-240VAC
CRI :
>80 >90 >95
Color Temperature :
3000K / 3500K 4000K / 5000K
Luminous Efficacy :
125LM/W(Max)
Product Name :
LED Trunking Lighting System
Description

Product Description:

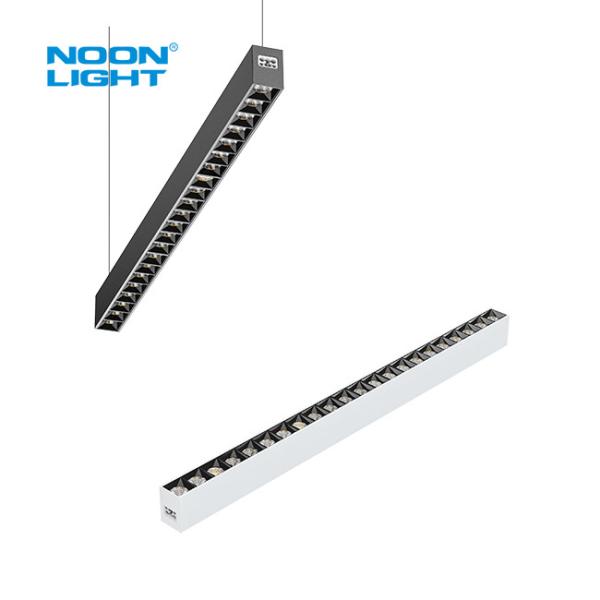

LED Trunking Light System

The LED trunking light system is a cutting-edge lighting solution that offers a unique architectural design with an attractive aluminum housing. This system is designed to provide maximum flexibility and easy installation options, with possibilities for pendant, mounted, or recessed installation depending on your lighting needs.

One of the standout features of this LED trunking light system is its seamless daisy chain connection, which allows users to easily connect multiple lights together without worrying about unsightly wiring or bulky connections. This system also offers a wide variety of lighting beam angles, making it easy to customize your lighting to meet your specific needs.

Another advantage of the LED trunking light system is the option of up and down lighting, which can be used for a variety of purposes including accent lighting and creating unique visual effects. This versatility makes it an ideal solution for a variety of commercial and industrial applications.

Features:

Product Specifications

This light fixture offers multiple voltage options, including 120-277VAC, 120-347VAC, and 220-240VAC for a wide range of installation needs.

With a light efficacy of up to 125Lm/W or 160Lm/W, the user has options for different levels of brightness. The beam angle can also be customized to 30°, 60°, 90°, or 120° for specific lighting needs.

This fixture is also equipped with dimmable controls such as 0-10V (dual channel), Dali 2, and Non-dim, giving the user complete control of the lighting environment. Additionally, the fixture offers four wattage settings.

The user can also choose between CRI ratings of greater than 80, greater than 90, or greater than 95 to further customize the lighting. Motion sensor technology and emergency battery packs are available for additional safety measures.

Finally, this product includes ETL, DLC, CE, and RoHS certifications and a 5-year warranty for peace of mind.

120° Beam Angle LED Trunking System for Commercial Lighting

Technical Parameters:

Model No Dimmable Input Voltage CRI Wattage LPW Lumen Beam Angle
N-TLD-2FT-25W-DF 0-10V
0-10V Dual Channel
Dali2
Non-Dimmable		 120-277VAC
120-347VAC
220-240VAC		 >80
>90
>95		 25W 160LM/W(Max) 4000LM(Max) 120°
N-TLD-2FT-25W-[30,60,90] 25W 125LM/W(Max) 3125LM(Max) 30°,60°,90°
N-TLD-3FT-36W-DF 0-10V
0-10V Dual Channel
Dali2
Non-Dimmable		 120-277VAC
120-347VAC
220-240VAC		 >80
>90
>95		 36W 160LM/W(Max) 5760LM(Max) 120°
N-TLD-3FT-36W-[30,60,90] 36W 125LM/W(Max) 4500LM(Max) 30°,60°,90°
N-TLD-4FT-50W-DF 0-10V
0-10V Dual Channel
Dali2
Non-Dimmable		 120-277VAC
120-347VAC
220-240VAC		 >80
>90
>95		 50W 160LM/W(Max) 8000LM(Max) 120°
N-TLD-4FT-50W-[30,60,90] 50W 125LM/W(Max) 6250LM(Max) 30°,60°,90°

Accessories:

120° Beam Angle LED Trunking System for Commercial Lighting

Applications:

Super market, office, commercial places, hospital, gym, warehouse, workshop, shopping mall

120° Beam Angle LED Trunking System for Commercial Lighting
