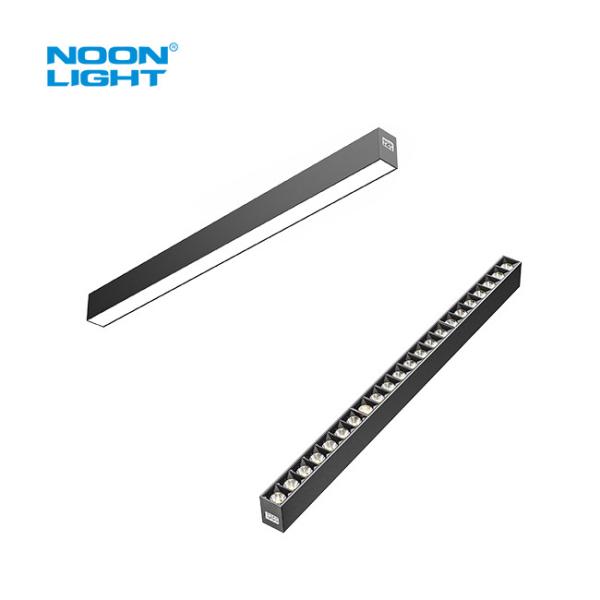

36W LED Trunking System 4500LM Max for Commercial Lighting Projects
36W LED Trunking System 4500LM Max for Commercial Lighting Projects
Specifications
Brand Name :
Noonlight
Model Number :
N-TLD-3FT
Place of Origin :
China
Certification :
DLC, ISO9001, Rosh, ETL,
MOQ :
100pcs
Price :
Negotiable
Packaging Details :
Carton box
Delivery Time :
30 day(s)
Payment Terms :
T/T, AliPay, PayPal
Supply Ability :
3000 pcs/day
Luminous Flux :
4500LM(Max)
Power :
36W(Max)
Color Temperature :
3000K / 3500K 4000K / 5000K
Application :
LED Trunking Lighting System
Product Name :
LED Trunking Lighting System
Material :
Aluminum + Acrylic/Iron +PS Lens
CRI :
>80 >90 >95
Beam Angle :
30°,60°,90°,120°
Description

Product Description:

The LED trunking light system features a unique architectural design, complete with durable aluminum housing. Whether you prefer pendent, mounted, or recessed installation, this system is incredibly easy to install.

One of the system's standout features is its seamless daisy chain connection, which makes it incredibly easy to ensure all lights are connected and working together effortlessly. Additionally, the system comes with options for very low UGR levels, with options for both UGR<22 and UGR<19 available.

Finally, the LED trunking light system also comes with the option of standard length or customizable length options, ensuring that you get the exact length you need for your space.

Features:

The lighting system is able to operate within a wide voltage range of 120~277VAC, 120~347VAC, and 220~240VAC. This gives it flexibility in various installation environments.

There are two options for light efficacy, one providing 125Lm/W and the other providing a more efficient 160 Lm/W. With this choice, customers can select the one that best suits their needs.

The lighting system is also dimmable with various options such as 0-10V (dual channel), Dali 2, and non-dim. Furthermore, it is convenient for users since the wattage of the lighting can be adjusted for 4 different levels. The system also offers 4 different CCT tunnable options.

The CRI value is an essential factor in selecting LED products. This system has multiple options of CRI, which are CRI>80, CRI>90, and CRI>95. The higher the CRI value, the better the ability to display accurate colors.

This lighting system provides additional functionalities such as a motion sensor and emergency battery pack. With these optional features, it makes the system suitable to comply with a wide variety of user requirements.

Lastly, this system has received certifications such as ETL, DLC, CE, RoHS for meeting the required safety standards. Customers can also be assured of the system's quality with the 5-year warranty.

Certifcate:

36W LED Trunking System 4500LM Max for Commercial Lighting Projects

Specifcation:

Model No Dimmable Input Voltage CRI Wattage LPW Lumen Beam Angle
N-TLD-2FT-25W-DF 0-10V
0-10V Dual Channel
Dali2
Non-Dimmable		 120-277VAC
120-347VAC
220-240VAC		 >80
>90
>95		 25W 160LM/W(Max) 4000LM(Max) 120°
N-TLD-2FT-25W-[30,60,90] 25W 125LM/W(Max) 3125LM(Max) 30°,60°,90°
N-TLD-3FT-36W-DF 0-10V
0-10V Dual Channel
Dali2
Non-Dimmable		 120-277VAC
120-347VAC
220-240VAC		 >80
>90
>95		 36W 160LM/W(Max) 5760LM(Max) 120°
N-TLD-3FT-36W-[30,60,90] 36W 125LM/W(Max) 4500LM(Max) 30°,60°,90°
N-TLD-4FT-50W-DF 0-10V
0-10V Dual Channel
Dali2
Non-Dimmable		 120-277VAC
120-347VAC
220-240VAC		 >80
>90
>95		 50W 160LM/W(Max) 8000LM(Max) 120°
N-TLD-4FT-50W-[30,60,90] 50W 125LM/W(Max) 6250LM(Max) 30°,60°,90°

Accessories:

36W LED Trunking System 4500LM Max for Commercial Lighting Projects
Z10 Receptacle
Features
· Standard Z10 regulated interface.
· Compact Size Allows More Fexibility In Luminaire Design.
· Easily Support Integration With Any Z10 Microwave & PIR Motion Sensor Controls.
· Specially Designed For Highbay Fixtures.

Applications:

Super market, office, commercial places, hospital, gym, warehouse, workshop, shopping mall

36W LED Trunking System 4500LM Max for Commercial Lighting Projects
