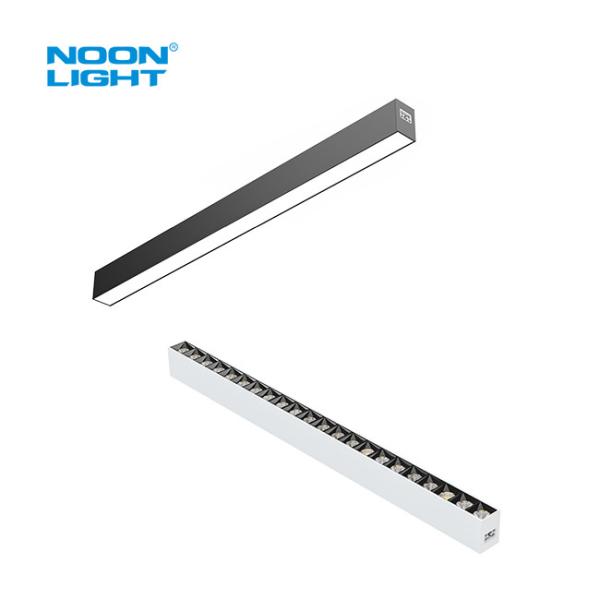

Aluminum Acrylic/Iron PS Lens LED Linear Light Trunking System for Warehouse Lighting
Aluminum Acrylic/Iron PS Lens LED Linear Light Trunking System for Warehouse Lighting
Specifications
Brand Name :
Noonlight
Model Number :
N-TLD-3FT
Place of Origin :
China
Certification :
DLC, ISO9001, Rosh, ETL,
MOQ :
100pcs
Price :
Negotiable
Packaging Details :
Carton box
Delivery Time :
30 day(s)
Payment Terms :
T/T, AliPay, PayPal
Supply Ability :
3000 pcs/day
Lifespan :
50,000hrs
Beam Angle :
30°,60°,90°,120°
Input Voltage :
120-277VAC / 120-347VAC / 220-240VAC
Material :
Aluminum + Acrylic/Iron +PS Lens
Product Name :
LED Trunking Lighting System
Color Temperature :
3000K / 3500K 4000K / 5000K
Application :
LED Trunking Lighting System
Warranty :
5 Years
Description

Product Description:

Unique Architectural Design with Aluminum Housing

Our lighting fixture boasts of a one-of-a-kind architectural design made with durable aluminum housing. This unique design ensures that our fixtures are not only stylish but also built to last long. Our fixtures are perfect for modern buildings that require lighting fixtures that are as functional as they are aesthetic.

Easy Installation for Different Setups

Our fixtures are easy to install and can be used in various setups such as pendent, mounted, and recessed installations. The fixtures come with an installation guide, ensuring that you can set them up without any difficulties. Our fixtures are also lightweight, making it easy for one person to install them.

Seamless Daisy Chain Connection

We have designed our fixtures to have a seamless daisy chain connection, allowing you to connect multiple fixtures without any visible breaks in the lighting. With this feature, you can create a continuous line of lighting that flows smoothly across your space, without any interruptions or dimmed areas.

Various Lighting Beam Angles

We understand that different spaces require different lighting angles, which is why we have various beam angles available in our fixtures. You can customize the lighting angles to suit your needs, ensuring that every corner of your space is well lit.

Customized Length and Combined Shapes

Our fixtures are designed to ensure versatility when it comes to customization. You can customize the length of your fixture to fit your space perfectly. We also provide lighting fixtures with combined shapes, allowing you to create unique lighting designs for your specific space needs.

Standard or Customized Length Available

We offer a range of fixture lengths to choose from, depending on your needs. If you have specific requirements for your space, we can customize the length to your exact specifications, ensuring that you get the perfect fit for your needs.

Features:

The light efficacy of our product is highly impressive, with two options available for you to choose from: 125Lm/W and 160 Lm/W. This ensures that you are getting the best lighting possible for your needs.

Our product also gives you the ability to customize the beam angle to your liking, with four different options available: 30°,60°,90°,120°. This allows you to adjust the lighting in your space to your specific needs and preferences.

We understand that different situations call for different levels of lighting, which is why our product is designed to be dimmable. With our product, you have three different dimming options to choose from: 0-10V (dual channel); Dali 2; Non-dim.

In addition, our product is also highly adjustable to your specific power needs. It has 4 different wattage settings that you can choose from.

We know that color rendering is also important to many of our customers, which is why we offer three different options for CRI (color rendering index): CRI>80; CRI>90; CRI>95. This ensures that the colors in your space will be accurately represented.

If you need additional features for your lighting needs, we also offer options for a motion sensor and an emergency battery pack to ensure that your space is always properly illuminated, no matter what.

The light efficacy of our product is highly impressive, with two options available for you to choose from: 125Lm/W and 160 Lm/W . This ensures that you are getting the best lighting possible for your needs.

Our product also gives you the ability to customize the beam angle to your liking, with four different options available: 30°,60°,90°,120° . This allows you to adjust the lighting in your space to your specific needs and preferences.

We understand that different situations call for different levels of lighting, which is why our product is designed to be dimmable. With our product, you have three different dimming options to choose from: 0-10V (dual channel); Dali 2; Non-dim .

In addition, our product is also highly adjustable to your specific power needs. It has 4 different wattage settings that you can choose from.

We know that color rendering is also important to many of our customers, which is why we offer three different options for CRI (color rendering index) : CRI>80; CRI>90; CRI>95 . This ensures that the colors in your space will be accurately represented.

If you need additional features for your lighting needs, we also offer options for a motion sensor and an emergency battery pack to ensure that your space is always properly illuminated, no matter what.

American Standard:

Aluminum Acrylic/Iron PS Lens LED Linear Light Trunking System for Warehouse Lighting

Size L(IN) W(IN) H(IN)
TLD-3FT 36 1.3 2.4
TLD-4FT 43.75 1.3 2.4

Specifcation:

Model No Dimmable Input Voltage CRI Wattage LPW Lumen Beam Angle
N-TLD-2FT-25W-DF 0-10V
0-10V Dual Channel
Dali2
Non-Dimmable		 120-277VAC
120-347VAC
220-240VAC		 >80
>90
>95		 25W 160LM/W(Max) 4000LM(Max) 120°
N-TLD-2FT-25W-[30,60,90] 25W 125LM/W(Max) 3125LM(Max) 30°,60°,90°
N-TLD-3FT-36W-DF 0-10V
0-10V Dual Channel
Dali2
Non-Dimmable		 120-277VAC
120-347VAC
220-240VAC		 >80
>90
>95		 36W 160LM/W(Max) 5760LM(Max) 120°
N-TLD-3FT-36W-[30,60,90] 36W 125LM/W(Max) 4500LM(Max) 30°,60°,90°
N-TLD-4FT-50W-DF 0-10V
0-10V Dual Channel
Dali2
Non-Dimmable		 120-277VAC
120-347VAC
220-240VAC		 >80
>90
>95		 50W 160LM/W(Max) 8000LM(Max) 120°
N-TLD-4FT-50W-[30,60,90] 50W 125LM/W(Max) 6250LM(Max) 30°,60°,90°

Accessories:

Aluminum Acrylic/Iron PS Lens LED Linear Light Trunking System for Warehouse Lighting
Motion Sensor
Features
· 5.8Ghz C-Band Microwave.
· Input Voltage: 12 - 24V DC.
· Input Current:≥25ma.
· *1~10V DC. Output Signal.


· Operation Temperature: -20°c~+ 70°c.
· RoHS Compliant.
* Sink Current: Max.100mA

Applications:

Super market, office, commercial places, hospital, gym, warehouse, workshop, shopping mall
