ENEC CB SASO ENEC+ Certified 190lm/W 80W LED Street Light IP66 IK09 SAA CE Zhaga-D4i Approved 10 Years Warranty Public Lighting
ENEC CB SASO ENEC+ Certified 190lm/W 80W LED Street Light IP66 IK09 SAA CE Zhaga-D4i Approved 10 Years Warranty Public Lighting
ENEC CB SASO ENEC+ Certified 190lm/W 80W LED Street Light IP66 IK09 SAA CE Zhaga-D4i Approved 10 Years Warranty Public Lighting
ENEC CB SASO ENEC+ Certified 190lm/W 80W LED Street Light IP66 IK09 SAA CE Zhaga-D4i Approved 10 Years Warranty Public Lighting
ENEC CB SASO ENEC+ Certified 190lm/W 80W LED Street Light IP66 IK09 SAA CE Zhaga-D4i Approved 10 Years Warranty Public Lighting
ENEC CB SASO ENEC+ Certified 190lm/W 80W LED Street Light IP66 IK09 SAA CE Zhaga-D4i Approved 10 Years Warranty Public Lighting
ENEC CB SASO ENEC+ Certified 190lm/W 80W LED Street Light IP66 IK09 SAA CE Zhaga-D4i Approved 10 Years Warranty Public Lighting
ENEC CB SASO ENEC+ Certified 190lm/W 80W LED Street Light IP66 IK09 SAA CE Zhaga-D4i Approved 10 Years Warranty Public Lighting
ENEC CB SASO ENEC+ Certified 190lm/W 80W LED Street Light IP66 IK09 SAA CE Zhaga-D4i Approved 10 Years Warranty Public Lighting
ENEC CB SASO ENEC+ Certified 190lm/W 80W LED Street Light IP66 IK09 SAA CE Zhaga-D4i Approved 10 Years Warranty Public Lighting
ENEC CB SASO ENEC+ Certified 190lm/W 80W LED Street Light IP66 IK09 SAA CE Zhaga-D4i Approved 10 Years Warranty Public Lighting
ENEC CB SASO ENEC+ Certified 190lm/W 80W LED Street Light IP66 IK09 SAA CE Zhaga-D4i Approved 10 Years Warranty Public Lighting
Specifications
Brand Name :
SURPLUS LIGHTING
Model Number :
SL-ST80WxxE4IGH1
Certification :
TUV ENEC CB SASO ENEC+ CE Zhaga-D4i RoHS SAA GMA
Place of Origin :
China
MOQ :
1pcs
Price :
1-100 USD/unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60000pcs per month
Delivery Time :
10-18 working days
Packaging Details :
Standard packaging or customized
Power :
80W
Efficiency :
190lm/W
Driver :
INVENTRONICS
PF :
≥0.98
IP rating :
IP66
IK rating :
IK09
IES :
Type II (S/M), Type III (S/M)
Warranty :
5 / 7 / 10 Years
Surge protection :
10KV / 20KV / 40KV
Dimmable :
DALI-2 / AC dim / Timer dimming
Protection Class :
Class I
Ambient temperature :
50°C
L90B10 :
100,000h indicated on TUV ENEC+
TM21 :
120,000h indicated on TUV TM21
Description
ENEC CB SASO ENEC+ Certified 190lm/W 80W LED Street Light IP66 IK09 SAA CE Zhaga-D4i Approved 10 Years Warranty Public Lighting

ENEC CB SASO ENEC+ Certified 190lm/W 80W LED Street Light IP66 IK09 SAA CE Zhaga-D4i Approved 10 Years Warranty Public Lighting

ENEC CB SASO ENEC+ Certified 190lm/W 80W LED Street Light IP66 IK09 SAA CE Zhaga-D4i Approved 10 Years Warranty Public Lighting

Class I Eagle Gen4 190lm/W LED street light DALI-2 / AC dim / Timer dimming Zhaga-D4i DALI dimming street light datasheet

Product Code

SL-ST25Wxx

E4IGH1

SL-ST30Wxx

E4IGH1

SL-ST40Wxx

E4IGH1

SL-ST50Wxx

E4IGH1

SL-ST60Wxx

E4IGH1

SL-ST80Wxx

E4IGH1

SL-ST100Wxx

E4IGH1

SL-ST120Wxx

E4IGH1

SL-ST150Wxx

E4IGH1

SL-ST165Wxx

E4IGH1
Power 25W 30W 40W 50W 60W 80W 100W 120W 150W 165W
Luminous Efficacy 190lm/W
Input Voltage AC200-240V
Chip Brand TYF5050 / GUANGYOU 5050 (Lumileds LUXEON 5050 optional)
Driver Brand INVENTRONICS
Surge Protection Support built-in 10KV/20KV SPD
Ral code RAL9006
CRI >70Ra
CCT 1700K-6500K
PF ≥0.98
Beam Angle Type II S, Type II M, Type III S, Type III M
L90B10 100,000 hours
Life Span ≧120,000 hours (L70, TUV TM21 report)
IP Grade IP66
Operating Tem. -40~50℃
Material ADC12, anti UV IK10 optical PC lens, IK09 tempered glass

TUV ENEC CB SASO ENEC+ Zhaga-D4i certified Eagle Gen4 LED street light IP66 IK09 Features:

Full Power at Wide Output Current Range (Constant Power).
Adjustable Output Current (AOC) with NFC.

Output Lumen Compensation.

Thermal Sensing and Protection for LED Module.

Suitable for Luminaires with Protection Class I and II.

Available with anti-glare shield.
Beam angle: T2 medium, T2 short, T3 medium, T3 short.
With Zhaga interface: DALI-2 / AC dim / Timer dimming.

High product reliability by applying 13 steps painting process, high efficiency coating.
Optional C5-M marine grade finishing painting, chromic treatment for the housing, approved by TUV C5-M report, TUV 720 hours neutral salt spray test + 480 hours water condensation test.

ENEC CB SASO ENEC+ Certified 190lm/W 80W LED Street Light IP66 IK09 SAA CE Zhaga-D4i Approved 10 Years Warranty Public LightingENEC CB SASO ENEC+ Certified 190lm/W 80W LED Street Light IP66 IK09 SAA CE Zhaga-D4i Approved 10 Years Warranty Public Lighting

ENEC CB SASO ENEC+ Certified 190lm/W 80W LED Street Light IP66 IK09 SAA CE Zhaga-D4i Approved 10 Years Warranty Public LightingENEC CB SASO ENEC+ Certified 190lm/W 80W LED Street Light IP66 IK09 SAA CE Zhaga-D4i Approved 10 Years Warranty Public Lighting

Smart city lighting Eagle Gen4 LED street light TUV ENEC CB SASO ENEC+ certified

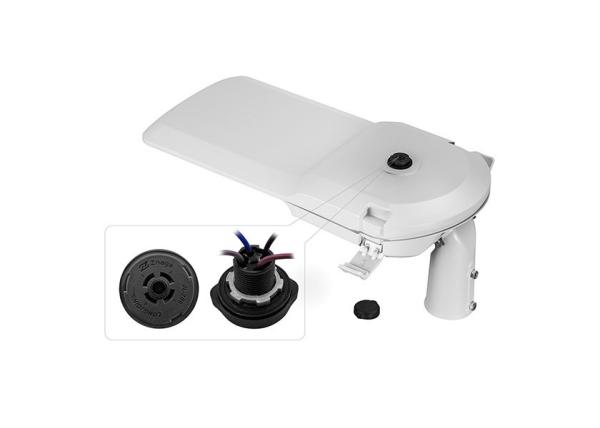

Tested for compliance against Zhaga specifications,provide with Zhaga-D4i certificate. Powered by D4i driver, extend for smart city lighting system, DALI-2 / AC dim / Timer dimming.

Eagle Gen4 LED street light compatible with Software Management System
Web-based management platform, run on AWS/Alibaba cloud server, remotely turn lights on/off, dimming in real-time or preset time; record of power, voltage, current; local strategy, fault alarm, group control and more functions.

ENEC CB SASO ENEC+ Certified 190lm/W 80W LED Street Light IP66 IK09 SAA CE Zhaga-D4i Approved 10 Years Warranty Public Lighting
