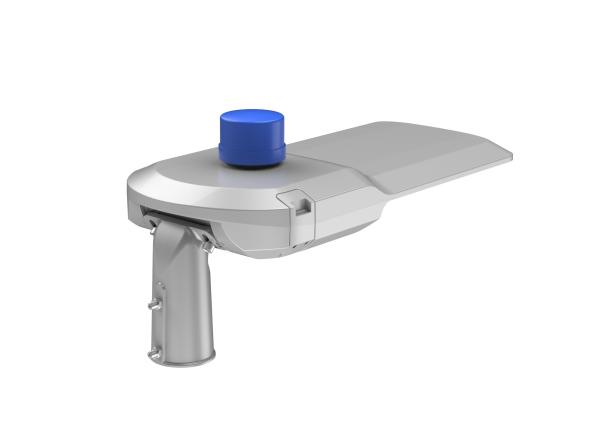

EAGLE GEN4 TUV ENEC PLUS+ CB SAA 30W LED Street Light 190lm/W 10 Years Warranty Public Lighting
EAGLE GEN4 TUV ENEC PLUS+ CB SAA 30W LED Street Light 190lm/W 10 Years Warranty Public Lighting
EAGLE GEN4 TUV ENEC PLUS+ CB SAA 30W LED Street Light 190lm/W 10 Years Warranty Public Lighting
EAGLE GEN4 TUV ENEC PLUS+ CB SAA 30W LED Street Light 190lm/W 10 Years Warranty Public Lighting
EAGLE GEN4 TUV ENEC PLUS+ CB SAA 30W LED Street Light 190lm/W 10 Years Warranty Public Lighting
EAGLE GEN4 TUV ENEC PLUS+ CB SAA 30W LED Street Light 190lm/W 10 Years Warranty Public Lighting
EAGLE GEN4 TUV ENEC PLUS+ CB SAA 30W LED Street Light 190lm/W 10 Years Warranty Public Lighting
EAGLE GEN4 TUV ENEC PLUS+ CB SAA 30W LED Street Light 190lm/W 10 Years Warranty Public Lighting
EAGLE GEN4 TUV ENEC PLUS+ CB SAA 30W LED Street Light 190lm/W 10 Years Warranty Public Lighting
EAGLE GEN4 TUV ENEC PLUS+ CB SAA 30W LED Street Light 190lm/W 10 Years Warranty Public Lighting
EAGLE GEN4 TUV ENEC PLUS+ CB SAA 30W LED Street Light 190lm/W 10 Years Warranty Public Lighting
EAGLE GEN4 TUV ENEC PLUS+ CB SAA 30W LED Street Light 190lm/W 10 Years Warranty Public Lighting
Specifications
Brand Name :
SURPLUS LIGHTING
Model Number :
SL-ST30WxxE4SGH
Certification :
TUV ENEC CB ENEC PLUS+ CE RoHS SAA SASO
Place of Origin :
China
MOQ :
1pcs
Price :
1-100 USD/unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
60000pcs per month
Delivery Time :
10-18 working days
Packaging Details :
Standard packaging or customized
Power :
30W
Efficiency :
190lm/W
Driver :
MOSO / SOSEN / INVENTRONICS
PF :
≥0.98
IP rating :
IP66
IK rating :
IK08
IES :
Type II (S/M), Type III-M
Warranty :
5 / 7/ 10 years
Surge protection :
10KV / 20KV
Dimmable :
0-10V, PWM, Timer dimming / Zhaga-D4i /DALI
Description
EAGLE GEN4 Class I / Class II 190LM/W 30W LED Street Light TUV ENEC AND ENEC PLUS+ CB SAA CE RoHS RETILAP Approved 10 Years Warranty Public Lighting

EAGLE GEN4 TUV ENEC PLUS+ CB SAA 30W LED Street Light 190lm/W 10 Years Warranty Public Lighting

EAGLE GEN4 TUV ENEC PLUS+ CB SAA 30W LED Street Light 190lm/W 10 Years Warranty Public Lighting

Class I Eagle Gen4 190lm/W LED street light 0-10V, PWM, Timer dimming / Zhaga-D4i / DALI dimming street light Datasheet

Product Code

SL-ST30Wxx

E4SGH

SL-ST50Wxx

E4SGH

SL-ST60Wxx

E4SGH

SL-ST80Wxx

E4SGH

SL-ST100Wxx

E4SGH

SL-ST120Wxx

E4SGH

SL-ST150Wxx

E4SGH

SL-ST180Wxx

E4SGH

SL-ST200Wxx

E4SGH

SL-ST280Wxx

E4SGH
Power 30W 50W 60W 80W 100W 120W 150W 180W 200W 280W
Luminous Efficacy 190lm/W
Input Voltage AC100-277V
Chip Brand TYF5050 / GUANGYOU 5050 (Lumileds LUXEON 5050 optional)
Driver Brand INVENTRONICS/SOSEN/MOSO (0-10V, PWM, Timer dimming / Zhaga-D4i / DALI dimming)
Surge Protection Support built-in 10KV/20KV SPD
Ral code RAL9006
CRI >70Ra
CCT 2700K-6500K
PF >0.98
Beam Angle Type II S, Type II M, Type III M
Material ADC12, anti UV IK10 optical PC lens, IK08 tempered glass
Life Span ≧120,000 hours
IP Grade IP66
Operating Tem. -40~50℃
THD <15%
