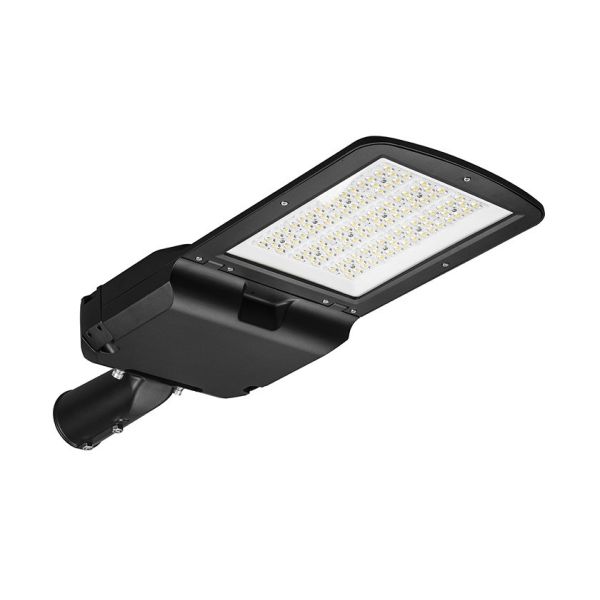

EAGLE GEN4 TUV ENEC ENEC PLUS+ CB CE RoHS Certified 80W DALI-2 LED Street Light 195lm/W With 7 PIN NEMA Socket Shorting Cap and 10KV SPD Tool-free opening and Self-cleaning Design
EAGLE GEN4 TUV ENEC ENEC PLUS+ CB CE RoHS Certified 80W DALI-2 LED Street Light 195lm/W With 7 PIN NEMA Socket Shorting Cap and 10KV SPD Tool-free opening and Self-cleaning Design
EAGLE GEN4 TUV ENEC ENEC PLUS+ CB CE RoHS Certified 80W DALI-2 LED Street Light 195lm/W With 7 PIN NEMA Socket Shorting Cap and 10KV SPD Tool-free opening and Self-cleaning Design
EAGLE GEN4 TUV ENEC ENEC PLUS+ CB CE RoHS Certified 80W DALI-2 LED Street Light 195lm/W With 7 PIN NEMA Socket Shorting Cap and 10KV SPD Tool-free opening and Self-cleaning Design
EAGLE GEN4 TUV ENEC ENEC PLUS+ CB CE RoHS Certified 80W DALI-2 LED Street Light 195lm/W With 7 PIN NEMA Socket Shorting Cap and 10KV SPD Tool-free opening and Self-cleaning Design
EAGLE GEN4 TUV ENEC ENEC PLUS+ CB CE RoHS Certified 80W DALI-2 LED Street Light 195lm/W With 7 PIN NEMA Socket Shorting Cap and 10KV SPD Tool-free opening and Self-cleaning Design
EAGLE GEN4 TUV ENEC ENEC PLUS+ CB CE RoHS Certified 80W DALI-2 LED Street Light 195lm/W With 7 PIN NEMA Socket Shorting Cap and 10KV SPD Tool-free opening and Self-cleaning Design
EAGLE GEN4 TUV ENEC ENEC PLUS+ CB CE RoHS Certified 80W DALI-2 LED Street Light 195lm/W With 7 PIN NEMA Socket Shorting Cap and 10KV SPD Tool-free opening and Self-cleaning Design
Specifications
Brand Name :
SURPLUS LIGHTING
Model Number :
SL-ST80WxxE4SGH2
Certification :
TUV ENEC ENEC PLUS+ CB CE RoHS SAA SASO
Place of Origin :
China
MOQ :
1pcs
Price :
1-100 USD/unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
60000pcs per month
Delivery Time :
10-18 working days
Packaging Details :
Standard packaging or customized
Power :
80W
Efficiency :
195lm/W
Driver brand :
SOSEN
PF :
≥0.95
IP rating :
IP66
IK rating :
IK08
IES :
Type II S, II M, III S, III M
Warranty :
5 / 7/ 10 years
Surge protection :
10KV / 20KV
Driver protocol :
DALI
Description
Class II EAGLE GEN4 TUV ENEC ENEC PLUS+ CB CE RoHS Certified 80W DALI-2 LED Street Light 195lm/W With 7 PIN NEMA Socket Shorting Cap and 10KV SPD Tool-free opening and Self-cleaning Design

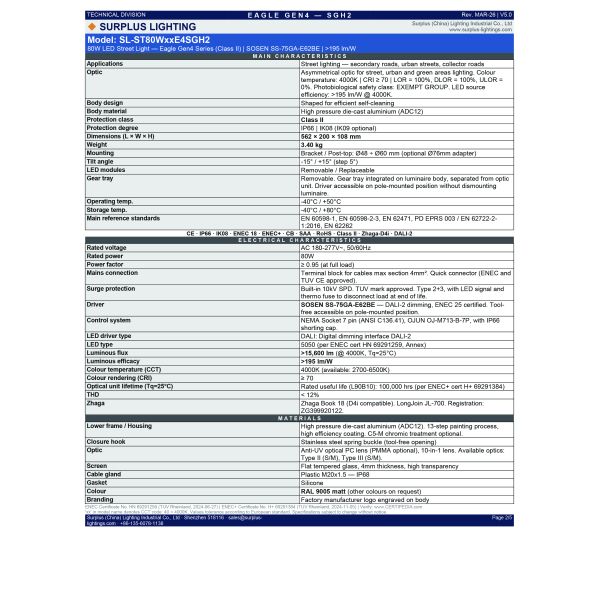

Class II Eagle Gen4 195lm/W LED Street Light Datasheet

EAGLE GEN4 TUV ENEC ENEC PLUS+ CB CE RoHS Certified 80W DALI-2 LED Street Light 195lm/W With 7 PIN NEMA Socket Shorting Cap and 10KV SPD Tool-free opening and Self-cleaning Design

TECHNICAL DIVISION E A G L E G E N 4 — S G H 2 Rev. MAR-26 | V5.0
◆ SURPLUS LIGHTING Surplus (China) Lighting Industrial Co., Ltd
www.surplus-lightings.com
Model: SL-ST30WxxE4SGH2
30W LED Street Light — Eagle Gen4 Series (Class II) | SOSEN SS-30GA-E62BE | >195 lm/W
M A I N C H A R A C T E R I S T I C S
Applications Street lighting — residential roads, pedestrian paths, parks, cycle paths
Optic Asymmetrical optic for street, urban and green areas lighting. Colour temperature: 4000K | CRI ≥ 70 | LOR = 100%, DLOR = 100%, ULOR = 0%. Photobiological safety class: EXEMPT GROUP. LED source efficiency: >195 lm/W @ 4000K.
Body design Shaped for efficient self-cleaning
Body material High pressure die-cast aluminium (ADC12)
Protection class Class II
Protection degree IP66 | IK08 (IK09 optional)
Dimensions (L × W × H) 493 × 174 × 108 mm
Weight 2.80 kg
Mounting Bracket / Post-top: Ø48 ÷ Ø60 mm (optional Ø76mm adapter)
Tilt angle -15° / +15° (step 5°)
LED modules Removable / Replaceable
Gear tray Removable. Gear tray integrated on luminaire body, separated from optic unit. Driver accessible on pole-mounted position without dismounting luminaire.
Operating temp. -40°C / +50°C
Storage temp. -40°C / +80°C
Main reference standards EN 60598-1, EN 60598-2-3, EN 62471, PD EPRS 003 / EN 62722-2-1:2016, EN 62262

CE · IP66 · IK08 · ENEC 18 · ENEC+ · CB · SAA · RoHS · Class II · Zhaga-D4i · DALI-2

E L E C T R I C A L C H A R A C T E R I S T I C S
Rated voltage AC 180-277V~, 50/60Hz
Rated power 30W
Power factor ≥ 0.95 (at full load)
Mains connection Terminal block for cables max section 4mm². Quick connector (ENEC and TUV CE approved).
Surge protection Built-in 10kV SPD. TUV mark approved. Type 2+3, with LED signal and thermo fuse to disconnect load at end of life.
Driver SOSEN SS-30GA-E62BE — DALI-2 dimming, ENEC 25 certified. Tool-free accessible on pole-mounted position.
Control system NEMA Socket 7 pin (ANSI C136.41), OJUN OJ-M713-B-7P, with IP66 shorting cap.
LED driver type DALI: Digital dimming interface DALI-2
LED type 5050 (per ENEC cert HN 69291259, Annex)
Luminous flux >5,850 lm (@ 4000K, Tq=25°C)
Luminous efficacy >195 lm/W
Colour temperature (CCT) 4000K (available: 2700-6500K)
Colour rendering (CRI) ≥ 70
Optical unit lifetime (Tq=25°C) Rated useful life (L90B10): 100,000 hrs (per ENEC+ cert H+ 69291384)
THD < 12%
Zhaga Zhaga Book 18 (D4i compatible). LongJoin JL-700. Registration: ZG399920122.
M A T E R I A L S
Lower frame / Housing High pressure die-cast aluminium (ADC12). 13-step painting process, high efficiency coating. C5-M chromic treatment optional.
Closure hook Stainless steel spring buckle (tool-free opening)
Optic Anti-UV optical PC lens (PMMA optional), 10-in-1 lens. Available optics: Type II (S/M), Type III (S/M).
Screen Flat tempered glass, 4mm thickness, high transparency
Cable gland Plastic M20x1.5 — IP68
Gasket Silicone
Colour RAL 9005 matt (other colours on request)
Branding Factory manufacturer logo engraved on body

ENEC Certificate No. HN 69291259 (TUV Rheinland, 2024-06-27) | ENEC+ Certificate No. H+ 69291384 (TUV Rheinland, 2024-11-05) |

Verify: www.CERTIPEDIA.com

'xx' in model name denotes CCT code: 40 = 4000K. Values tolerance according to European standard. Specifications subject to change

without notice.
