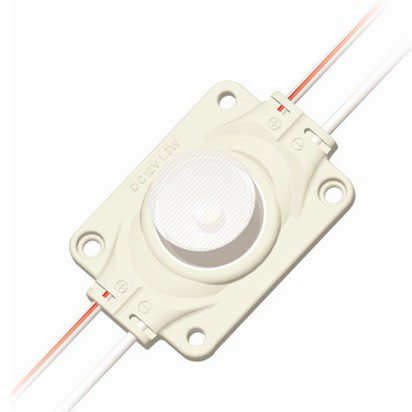

1PCS Warm White 3535 High Power LED Module 12 Volt -40°C - 60 °C Working Temperature
1PCS Warm White 3535 High Power LED Module 12 Volt -40°C - 60 °C Working Temperature
Specifications
Brand Name :
LEDCORP
Certification :
ISO9001 , CE , RoHS , UL
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
T/T , PayPal
Supply Ability :
500,000pcs per month
Delivery Time :
15-20 working days
Packaging Details :
Anti-Static Package , 1000pcs / cartion
Model Number :
LC-MFK041
Light Source :
3535SMD
LED QTY :
1LED
Voltage :
12V
IP Rating :
IP65
CRI :
>70
Color Temp :
2400-6500K
Description

1PCS Warm White 3535 High Power LED Module 12 Volt -40°C - 60 °C Working Temperature

Features:

  • Super brightness, low lumen decoration, 50,000 working hours, long lifespan
  • Warm white: 2700-3000K, Pure white:5500-6500K, Cool white:6500-9000K
  • Compact size, smart design
  • High quality 3535SMD LED

Application:

  • Advertising letter
  • Ultra thin light box
  • Signage

IP rating: IP65

Technical details:

Details

Item

Unit

Specification

Physical data

LED type

SMD

3535SMD

LED Qty

LED

1pcs

Dimensions

mm

35*52 *14.5mm

Type of protection

IP

IP65

Working temperature

°C

-40°C - 60°C

Electrical data

Power

W/pcs

2W

Voltage

VDC

12V

Optical data

Luminous flux

LM

630lm

Beam angle

degrees

120

Light color

　

Warm white/Pure white/White

Color BINs

　

5 BINs

Color temperature

K

WW:2400/2700-3000

W:5500-6500

CW: 6500-9000

Color rendering index

CRI

>70

Order reference

HS code

94054090

Part. no

LC-MFK041-WW/W/CW

LC-MFK041—R (red)

LC-MFK041-G (green)

LC-MFK041-B (blue)

LC-MFK041-Y (yellow)

1PCS Warm White 3535 High Power LED Module 12 Volt -40°C - 60 °C Working Temperature

Packing details:

Name

HS code

Packaging unit

Pieces per box

Dimensions LxWxH

Gross weight

Volume
Led module

94054090

Shipping carton box

500pcs

50*35*25cm

　11KG

0.0437cbm

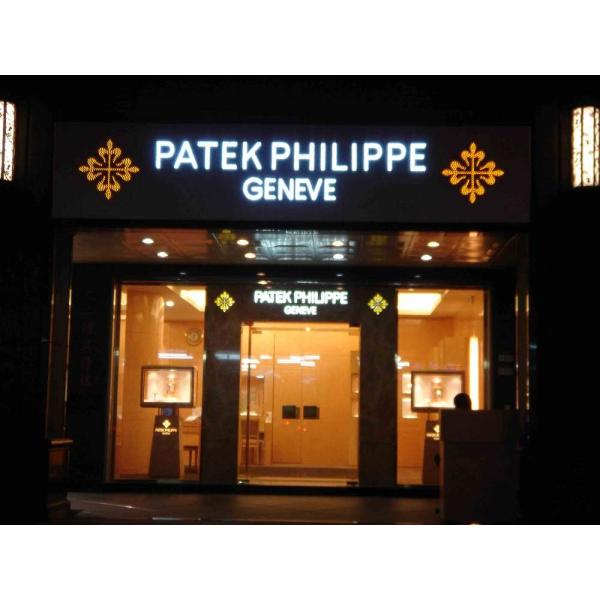

Application example:

1PCS Warm White 3535 High Power LED Module 12 Volt -40°C - 60 °C Working Temperaturea
