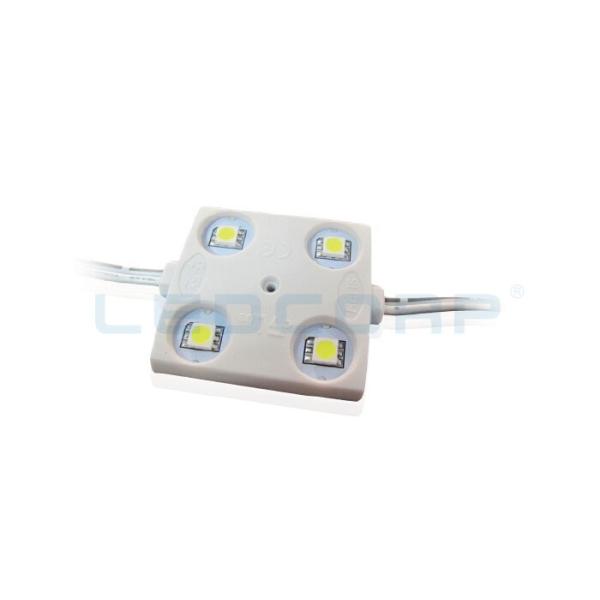

Cool White 12 Volt SMD LED Module Outdoor 4 LEDs Injection ISO9001 CE
Cool White 12 Volt SMD LED Module Outdoor 4 LEDs Injection ISO9001 CE
Specifications
Brand Name :
LEDCORP
Certification :
ISO9001 , CE , RoHS , UL
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
T/T , PayPal
Supply Ability :
500,000pcs per month
Delivery Time :
15-20 working days
Packaging Details :
Anti-Static Package , 1000pcs / cartion
Model Number :
LCM5X4PF49-DC12
Light Source :
5050SMD
LED QTY :
4LED
Voltage :
12V
IP Rating :
IP65
CRI :
>70
Color Temp :
2400-6500K
Description

Cool White 12 Volt SMD LED Module Outdoor 4 LEDs Injection ISO9001 CE

Features:

  • Super brightness, low lumen decoration, 50,000 working hours, long lifespan
  • Warm white: 2700-3000K, Pure white:5500-6500K, Cool white: 6500-9000K
  • Compact size, smart design
  • High quality 5050SMD LED
  • Optical lens, 140degree viewing angel

Application:

  • Advertising letter
  • Ultra thin light box
  • Signage

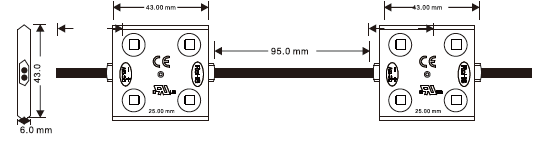

Dimension:

Cool White 12 Volt SMD LED Module Outdoor 4 LEDs Injection ISO9001 CE

IP rating: IP65

Technical details:

Details

Item

Unit

Specification

Physical data

LED type

SMD

5050SMD

LED Qty

LED

4pcs

Dimensions

mm

43*43*6mm

Type of protection

IP

IP65

Working temperature

°C

-40°C - 60°C

Electrical data

Power

W/pcs

0.96W

Voltage

VDC

12V

Optical data

Luminous flux

LM

76-83LM

Beam angle

degrees

120

Light color

　

Warm white/Pure white/White

Color BINs

　

5 BINs

Color temperature

K

WW:2400/2700-3000

W:5500-6500

CW: 6500-9000

Color rendering index

CRI

>70

Order reference

HS code

94054090

Part. no

LCM5X4PF49-DC12-WW/W/CW

LCM5X4PF49-DC12—R (red)

LCM5X4PF49-DC12-G (green)

LCM5X4PF49-DC12-B (blue)

LCM5X4PF49-DC12-Y (yellow)

Cool White 12 Volt SMD LED Module Outdoor 4 LEDs Injection ISO9001 CE

Packing details:

Name

HS code

Packaging unit

Pieces per box

Dimensions LxWxH

Gross weight

Volume
Led module

94054090

Shipping carton box

500pcs

50*35*25cm

　11KG

0.0437cbm

Application example:

Cool White 12 Volt SMD LED Module Outdoor 4 LEDs Injection ISO9001 CEa
