LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing
LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing
LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing
LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing
LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing
LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing
LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing
LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing
Specifications
Brand Name :
DUALRAYS
Model Number :
DR-SL150-DG2
Certification :
CE,ROHS,TUV/GS,LM79,LM80
Place of Origin :
Shenzhen, China
MOQ :
2PCS
Price :
Negotiated
Payment Terms :
T/T, L/C, Western Union,Paypal
Supply Ability :
50,000pcs/month
Delivery Time :
5-15 business days
Packaging Details :
Netural Package/OEM and ODM Package Available
Warranty :
5 Years
Efficienncy :
140LPW
LEDs source :
LUMILEDS LUXEON LEDs

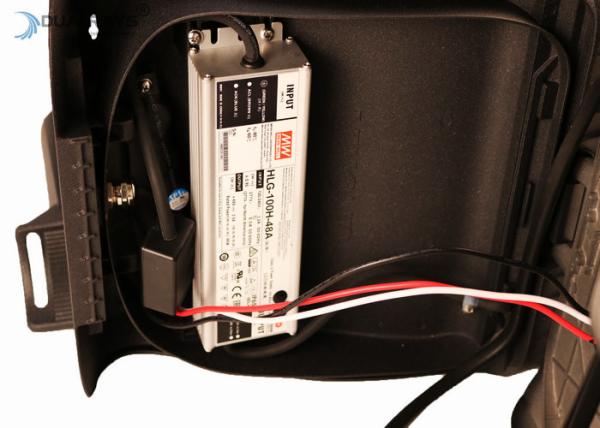

Driver :
Meanwell ELG/HLG
CCT :
WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K
Input Voltage :
AC95~277V 50/60Hz
Wattage :
30W,60W,90W,120W,150W,180W
Life Span :
50000H
Description

LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing

Outdoor LED Street Lights Features:

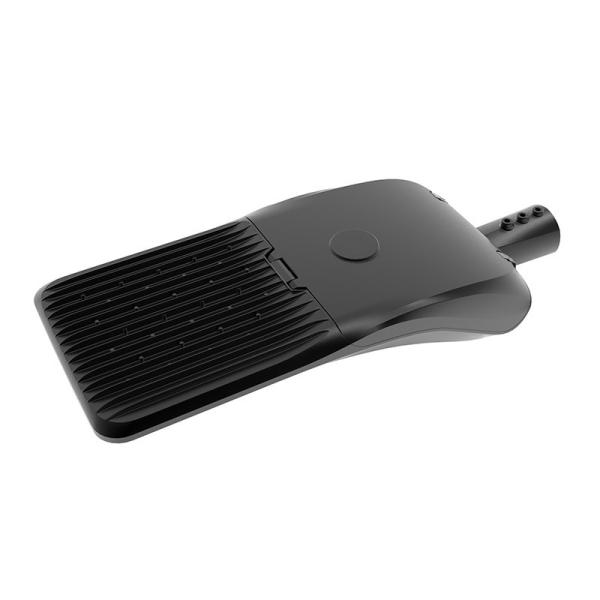

* Rugged die-cast aluminum housing with corrosion resistant hardware

* Dual-hoop mounting system fitted to 60mm (O.D.) mast-arms accommodates safety and stability.

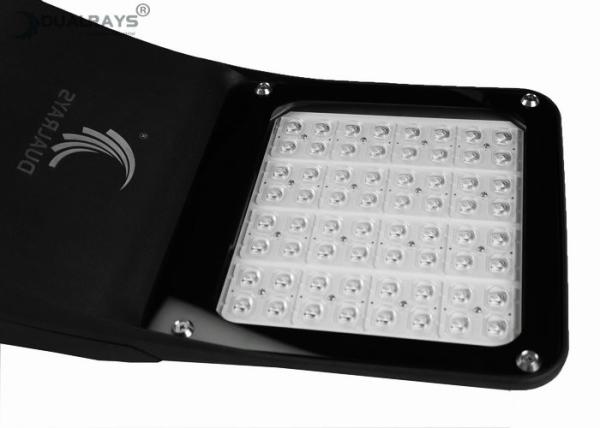

* Adopting SMD5050 LEDs light source;

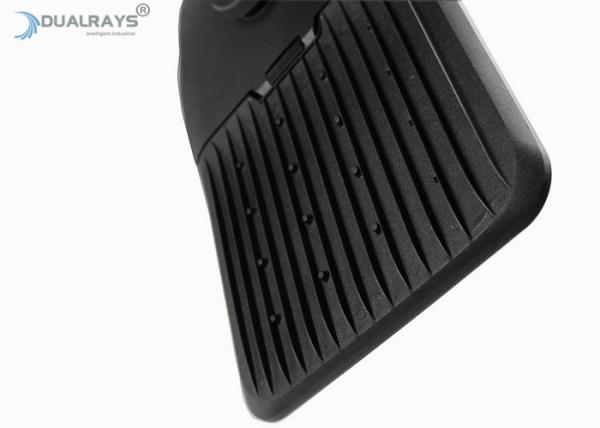

* Excellent heat dissipation,low light decay;

* IP66 and IK10 for road lighting application;

* 5 years warranty,7 or 10 years warranty negotiated;

Advantages:

* Provide Dialux software for lighting design project for our customers;

* Have branch office and warehouse in Netherlands with more than 4000㎡. 3 days delivery time, fast reaction.

* All our LED liminaires comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products;

* All products comply at least 3 years.

Item Description
Rated Input Voltage/V AC100~277V 50/60Hz
Protection Class Class I
Dimming(Optional) 0/1-10V/PWM/DALI/Zigbee
Surge Protection 6~10KV SPD Driver,Exterior SPD 10KV() or 20KV Meanwell Optional
LEDs Light Source SMD5050
THD <10%
Power Factor >0.95
Beam Angle(Optional) TypeⅠ/TypeⅡ(Long & Medium)/TypeⅢ(Medium)/TypeⅣ /TypeⅤ (Medium) (Medium)

LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing

LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing
LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing

> Loading Area.

> Parking lot.

> Playground.

> Sport and Stadium.

> Roadways,Avenues

> Walkways,Loading Area

LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing
LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing


LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing
30W/60W Version
LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing
90W,120W/150W/180W Version
LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing

LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing

LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing

LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing
LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing
LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum HousingLUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum HousingLUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum HousingLUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing
LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing
Zigbee Wireless Intelligent Control Diagram
LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing
Zigbee Wireless Intelligent Control Operator Interface
LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing
LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing

LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing
LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing

LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing

LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing

LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing

LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing

Q1: What are the payment methods you can accept ?

RE: We can accept multiple payment routes in order to be more flexible and convenient for our customers all over the world,Western Union,Paypal,T/T,L/C.But generally the standard payment method is T/T for bulk orders,30% T/T in advance,balance 70% before shipment The bank information is written in the PI.

Q2: LEDs are more expensive than other lighting options,why ?

RE: LEDs can operate as stand alone devices,but when grouped or clustered they require additional steps to operate properly. LEDs need proper components such as a circuits can be designed rapidly, but to ensure that they operate correctly and for long periods of time they require testing.

Q3.Do you know “dali “?

RE: Digital addressable lighting interface (DALI) is a trademark for network-based systems that control lighting in building automation.

Q4.How to explain “illuminance“?

RE: The intensity of light falling on a surface area. If the area is measured in square feet, the unit of illuminance is footcandles(fc). If measured in square metres, the unit of illuminance is Lux.

Q5.What’s LED Chips ?

RE: The light producing semiconductor device that may or may not be incorporated into an LED.


LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
