Front Maintenance Ultra Thin 600x337.5mm Indoor Small Pitch LED Panel 0.7 0.9 1.2 1.5 mm COB LED Screen for High End Display
Front Maintenance Ultra Thin 600x337.5mm Indoor Small Pitch LED Panel 0.7 0.9 1.2 1.5 mm COB LED Screen for High End Display
Front Maintenance Ultra Thin 600x337.5mm Indoor Small Pitch LED Panel 0.7 0.9 1.2 1.5 mm COB LED Screen for High End Display
Front Maintenance Ultra Thin 600x337.5mm Indoor Small Pitch LED Panel 0.7 0.9 1.2 1.5 mm COB LED Screen for High End Display
Front Maintenance Ultra Thin 600x337.5mm Indoor Small Pitch LED Panel 0.7 0.9 1.2 1.5 mm COB LED Screen for High End Display
Front Maintenance Ultra Thin 600x337.5mm Indoor Small Pitch LED Panel 0.7 0.9 1.2 1.5 mm COB LED Screen for High End Display
Front Maintenance Ultra Thin 600x337.5mm Indoor Small Pitch LED Panel 0.7 0.9 1.2 1.5 mm COB LED Screen for High End Display
Front Maintenance Ultra Thin 600x337.5mm Indoor Small Pitch LED Panel 0.7 0.9 1.2 1.5 mm COB LED Screen for High End Display
Front Maintenance Ultra Thin 600x337.5mm Indoor Small Pitch LED Panel 0.7 0.9 1.2 1.5 mm COB LED Screen for High End Display
Front Maintenance Ultra Thin 600x337.5mm Indoor Small Pitch LED Panel 0.7 0.9 1.2 1.5 mm COB LED Screen for High End Display
Front Maintenance Ultra Thin 600x337.5mm Indoor Small Pitch LED Panel 0.7 0.9 1.2 1.5 mm COB LED Screen for High End Display
Front Maintenance Ultra Thin 600x337.5mm Indoor Small Pitch LED Panel 0.7 0.9 1.2 1.5 mm COB LED Screen for High End Display
Front Maintenance Ultra Thin 600x337.5mm Indoor Small Pitch LED Panel 0.7 0.9 1.2 1.5 mm COB LED Screen for High End Display
Front Maintenance Ultra Thin 600x337.5mm Indoor Small Pitch LED Panel 0.7 0.9 1.2 1.5 mm COB LED Screen for High End Display
Specifications
warranty :
5 years
type :
LED
Brand Name :
DDW or Customized
application :
indoor
use :
advertising publish, retail store, shopping mall, welcome display, exhibition hall, airport, subway, Restaurant & Hotel Supplies, Education
media available :
Photo, EDA/CAD Models, datasheet
Model Number :
DCOB series
pixel density :
409,600dots/m2
Place of Origin :
Guangdong, China
pixels :
P1.56
Pixel Pitch :
1.56mm
Module size :
150*168.75
Pixel configuration :
COB
Maintenance method :
Front maintenance

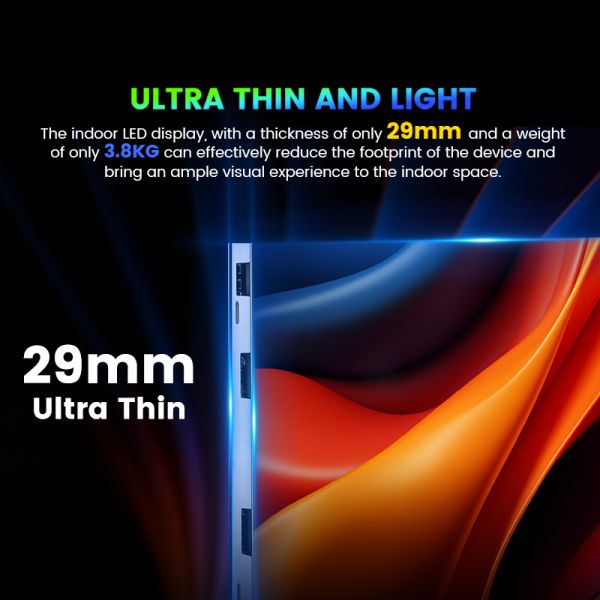

Cabinet size :
600*337.5*29mm
Cabinet weight :
3.8KG
Cabinet material :
Die cast aluminum
Refresh frequency :
3840~7680
Grayscale :
16bit
Brightness (nits)(Colour temp 6500K) :
Factory delivery standard: 1000 after calibration
Panel Size :
600x337.5x28mm
Description
Front Maintenance Ultra Thin 600x337.5mm Indoor Small Pitch LED Panel 0.7 0.9 1.2 1.5 mm COB LED Screen for High End Display
Front Maintenance Ultra Thin 600x337.5mm Indoor Small Pitch LED Panel 0.7 0.9 1.2 1.5 mm COB LED Screen for High End Display
Front Maintenance Ultra Thin 600x337.5mm Indoor Small Pitch LED Panel 0.7 0.9 1.2 1.5 mm COB LED Screen for High End Display
Front Maintenance Ultra Thin 600x337.5mm Indoor Small Pitch LED Panel 0.7 0.9 1.2 1.5 mm COB LED Screen for High End Display
Front Maintenance Ultra Thin 600x337.5mm Indoor Small Pitch LED Panel 0.7 0.9 1.2 1.5 mm COB LED Screen for High End Display
Products Description
Front Maintenance Ultra Thin 600x337.5mm Indoor Small Pitch LED Panel 0.7 0.9 1.2 1.5 mm COB LED Screen for High End Display
Front Maintenance Ultra Thin 600x337.5mm Indoor Small Pitch LED Panel 0.7 0.9 1.2 1.5 mm COB LED Screen for High End Display
Front Maintenance Ultra Thin 600x337.5mm Indoor Small Pitch LED Panel 0.7 0.9 1.2 1.5 mm COB LED Screen for High End Display
Front Maintenance Ultra Thin 600x337.5mm Indoor Small Pitch LED Panel 0.7 0.9 1.2 1.5 mm COB LED Screen for High End Display
Front Maintenance Ultra Thin 600x337.5mm Indoor Small Pitch LED Panel 0.7 0.9 1.2 1.5 mm COB LED Screen for High End Display
Front Maintenance Ultra Thin 600x337.5mm Indoor Small Pitch LED Panel 0.7 0.9 1.2 1.5 mm COB LED Screen for High End Display
Specifications
Item
Front Maintenance Ultra Thin 600x337.5mm Indoor Small Pitch LED Panel 0.7 0.9 1.2 1.5 mm COB LED Screen For High End Display
Pixel Pitch (mm)
P0.78
P0.9375
P1.25
P1.5625
Module resolution
205x230
160x180
120x135
96x108
Module size (mm)
150x168.75
Cabinet resolution
820x460
640x360
480x270
384x216
Cabinet size (mm)
600x337.5x29
Normal weight (kg/m²)
23
Pixel density (dots/m²)
1508800
1137777
640000
409600
Cabinet flatness (mm)
≤0.15
Single-point brightness correction
yes
Single-point color correction
yes
Brightness (nits)
600-1200
Color temperature (K)
3000-10000 adjustable
Viewing angle
170°/170°
Chroma uniformity
±0.003
Frame rate (Hz)
50&60
Refresh rate (Hz)
3840/7680
Center distance deviation
＜3%
Brightness uniformity
≥97%
40 ° C/RH90% test
Through testing
Company Profile
Front Maintenance Ultra Thin 600x337.5mm Indoor Small Pitch LED Panel 0.7 0.9 1.2 1.5 mm COB LED Screen for High End Display
Front Maintenance Ultra Thin 600x337.5mm Indoor Small Pitch LED Panel 0.7 0.9 1.2 1.5 mm COB LED Screen for High End Display
Front Maintenance Ultra Thin 600x337.5mm Indoor Small Pitch LED Panel 0.7 0.9 1.2 1.5 mm COB LED Screen for High End Display
Front Maintenance Ultra Thin 600x337.5mm Indoor Small Pitch LED Panel 0.7 0.9 1.2 1.5 mm COB LED Screen for High End Display
Front Maintenance Ultra Thin 600x337.5mm Indoor Small Pitch LED Panel 0.7 0.9 1.2 1.5 mm COB LED Screen for High End Display
Front Maintenance Ultra Thin 600x337.5mm Indoor Small Pitch LED Panel 0.7 0.9 1.2 1.5 mm COB LED Screen for High End Display
Front Maintenance Ultra Thin 600x337.5mm Indoor Small Pitch LED Panel 0.7 0.9 1.2 1.5 mm COB LED Screen for High End Display
Q:Who Are We? A: DDW DISPLAY has 12,000sqm high-tech automated workshop, 100 employees,25 research engineers,20 after-sale technicians,4000sqm productivity each month. Q: How Can We Guarantee Quality? A: Seven quality control steps ensure your ordered screens good: 1. Suppliers are long-term cooperated large famous company. 2. Material check by professional workers and machines. 3. Debug every modules. 4. 48-hour aging test for all modules before assembling. 5. Test every cabinet's function after assembling by engineers and machines. 6. 72-hour aging test for whole screen before shipment. 7. All details final inspection again before package.
Q: What Can You Buy From Us? A: indoor outdoor rental LED screen, fixed LED screen, HD LED screen, flexible LED screen, transparency LED display, creative led screens and customization services.

Q: Why Should You Buy From US Not From Other Suppliers? A: After the 12 years development, Shenzhen DDW Technology Co.,Ltd has accumulated rich experience of R&D and has the first-class automated production equipment, standard clean automation production plant and anti-static system devices. Q: What Services Can We Provide? A: 5-years quality warranty and life-long repairing service. If any components need to repair or replace, you can send it back to Shenzhen.
