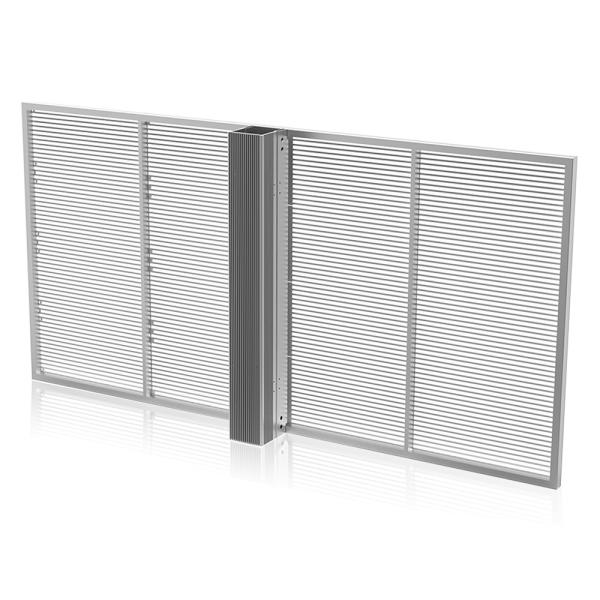

TRA-M PH5-10 Outdoor Transparent LED Screen Display 3D Digital Display 500mm*1000mm
TRA-M PH5-10 Outdoor Transparent LED Screen Display 3D Digital Display 500mm*1000mm
TRA-M PH5-10 Outdoor Transparent LED Screen Display 3D Digital Display 500mm*1000mm
TRA-M PH5-10 Outdoor Transparent LED Screen Display 3D Digital Display 500mm*1000mm
Specifications
Brand Name :
Highmight
Model Number :
TRA-M
Place of Origin :
Guangdong, China
MOQ :
>=1 square meters
Price :
$870/square meters
Payment Terms :
T/T
Delivery Time :
7-35 work days
Certification :
CE FCC RoHS
Packaging Details :
Flight case/wooden case/carton case packing
Refresh Rate: :
3840Hz
Application: :
Outdoor
Lifespan :
≥100000H
Cabinet Size :
1000X500X80
Brightness: :
≥4500 cd/㎡
Weight :
12kg/㎡
Description

TRA-M PH5-10 Outdoor Transparent LED Screen Display 3D Digital Display easy to Install

Detailed product introduction document:Indoor transparent screen TRA-M series.pdf

Applicable scenarios:

1. commercial real estate

2. entertainment culture

3. stage performance and Architecture Art

4. radio and television studios

5. commercial exhibition hall

Features:

1. Unique encapsulation and potting technology: sealing and potting technology, which not only protects the lamp beads, but also plays a waterproof effect, and the waterproof level is as high as IP65 protection level;
2. Support front and rear maintenance to reduce maintenance costs: the playback screen presents a suspended style, which will not affect the vision of the building when it is lit
3. Convenient installation method, convenient and fast: the box body is designed with a quick lock structure, which is convenient and fast to install.

Product Details

Models: TRA-M

Outdoor Transparent LED screen (HMT-HTR series)

models

HMT-HTR3-7

HMT-HTR5-10

HMT-HTR10-10

HMT-HTR15-15

Pixel Pitch (mm)

3.91 - 7.82

5.2 -10.4

10.4 -10.4

15.6 - 15.6

transparency

56%

58%

60%

75%

Pixel Density (dot/㎡)

32768

18432

9216

4096

Cabinet Pixel

256X128

192X96

96X96

64X64

Refresh rate (Hz)

3840Hz

3840Hz

3840Hz

3840Hz

Drive chip

ICN2153PWM (same level)

MY9866 (same level)

MY9866 (same level)

ICN2038S (same level)

Scan mode

1/8 Scan

1/4 Scan

1/2 Scan

static

LED lamp type

SMD1921

SMD1921

SMD2727

SMD2727

Brightness (cd/㎡)

≥4500

≥4500

≥4500

≥4500

Lifespan(H)

≥ 100,000 hours

Pixel composition

RGB three-in-one

Grey scale

14bit

Maximum power (W/㎡)

600-800W

Conventional power (W/㎡)

400-600W

LED control system

Nova / Colorlight System / Magnimade System / Mooncell System

Signal connection

WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system

Protection Grade

IP65

Eliminate Shadows

equipment

Input voltage

AC100～240V 50/60HZ

Module input voltage

DC4.7～5V±0.2V

Cabinet size (mm)

1000X500X80

Weight (Kg/㎡)

12kg/㎡

Cabinet material

Aluminum alloy

Maintenance

power/Control System : rear maintenance

module:front maintenance

Working temperature and humidity

Temperature: -10 ~ 40℃ humidity: -10% ~ 90%

Installation

hoisting/fixed installation/Build on standing structure

Application:

TRA-M PH5-10 Outdoor Transparent LED Screen Display 3D Digital Display 500mm*1000mm

FQA:

Q1 : Do you have a warranty?
A: we offer 2 years warranty after shipment.

Q2: How long could I get reply of my inquiry?
A:You will get a reply within 24 hours.

Q3: What can you buy from us?

A: Rental LED Display Screen / Transparent LED Screen Display / Outdoor LED Display Screen / LED Dance Floor Tiles / Small Pixel Pitch LED Screen / Indoor LED Display Screen / Creative LED Display / All In One LED Screen / Flexible LED Screen / LED Transparent Film Screen / Holographic LED Screen and Custom LED Screen.

Q4: Can I have a sample order for led screen?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q5: Is your company a real manufacturer?
A: Our company is the professional manufacturer in Shenzhen. Welcome to visit our factory anytime at your convenience.
